Front Speed Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FRONT WHEEL
  3. REMOVE FRONT SIDE MUDGUARD  (See REMOVAL )
  4. REMOVE FRONT FENDER LINER  (See REMOVAL )
  5. REMOVE FRONT SPEED SENSOR

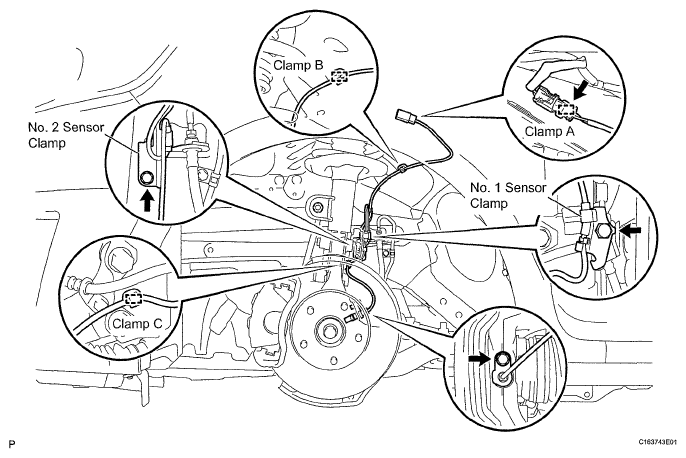

    Fig 1: Identifying Front Speed Sensor
    G05389549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage clamp A from the body.
    2. Disconnect the speed sensor connector.
    3. Disengage clamp B from the body.
    4. Remove the bolt and No. 2 sensor clamp from the body.
    5. Remove the bolt and No. 1 sensor clamp from the shock absorber.
    6. Disengage clamp C from the shock absorber.
    7. Remove the bolt and speed sensor from the steering knuckle.
      NOTE:
      • Keep the speed sensor tip and installation portion free of foreign matter.
      • Remove the speed sensor without turning it from its original installation angle.
