2AZ-FE Engine Control System - System And Circuit Testing, On-Vehicle Inspection, Removal, Inspection & Installation
›
Fuel Pump Control Circuit
›
Wiring Diagram
Fuel Pump Control Circuit: Wiring Diagram

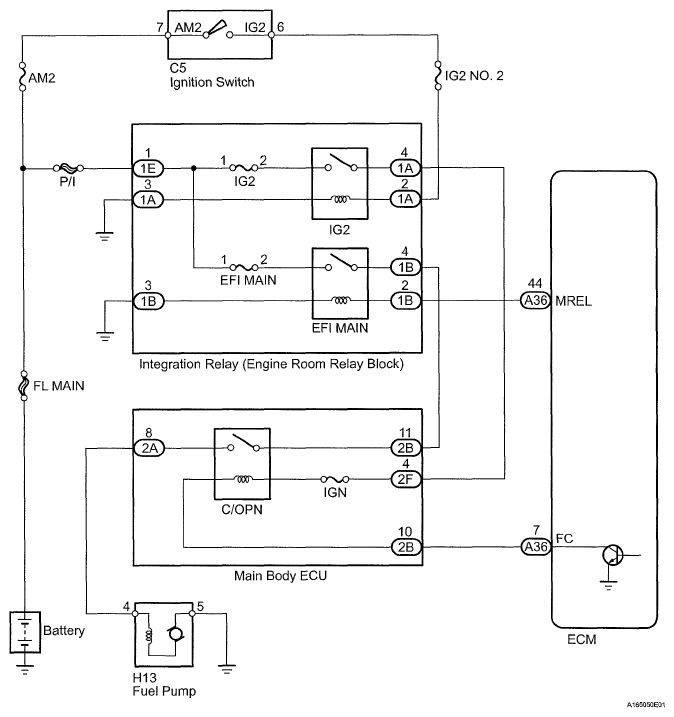

Fig 1: Fuel Pump Control Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
