UNDERDRIVE Clutch: Components

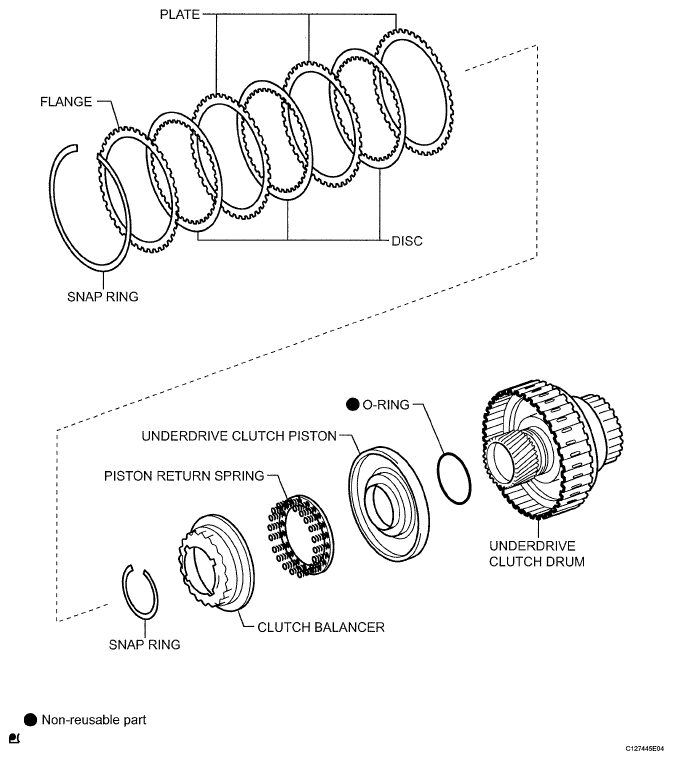

Fig 1: Identifying Underdrive Clutch Components
G05388587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
