Emission Control: Canister: Installation

INSTALL CANISTER
1. Install the canister with the 2 bolts and nut.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

  Fig 1: Locating Canister With Bolts And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the wire harness
3. Connect the connector.

  Fig 2: Locating Connector Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the fuel tank vent hose.
  NOTE:
  - Check that there are no scratches or foreign objects on the disconnected parts of the fuel tank vent connector and pipe before performing the work.
  - After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling the quick connector.

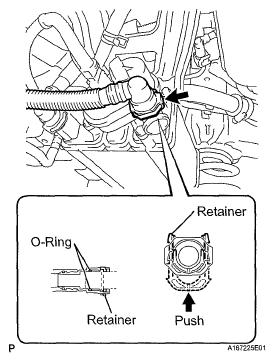

    Fig 3: Connecting Fuel Tank Vent Hose
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the air inlet hose.
  NOTE:
  - Check that there are no scratches or foreign objects on the disconnected parts of the air inlet hose connector and pipe before performing the work.
  - After connecting the air inlet hose, check that the air inlet hose is securely connected by pulling the quick connector.

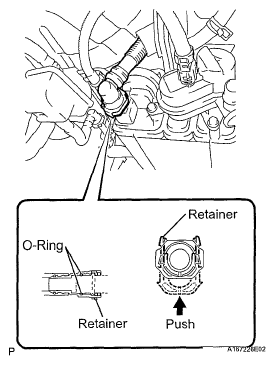

    Fig 4: Connecting Air Inlet Hose
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the charcoal canister outlet hose.

  Fig 5: Locating Charcoal Canister Outlet Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
