OEM System Circuits: Charging: Notes

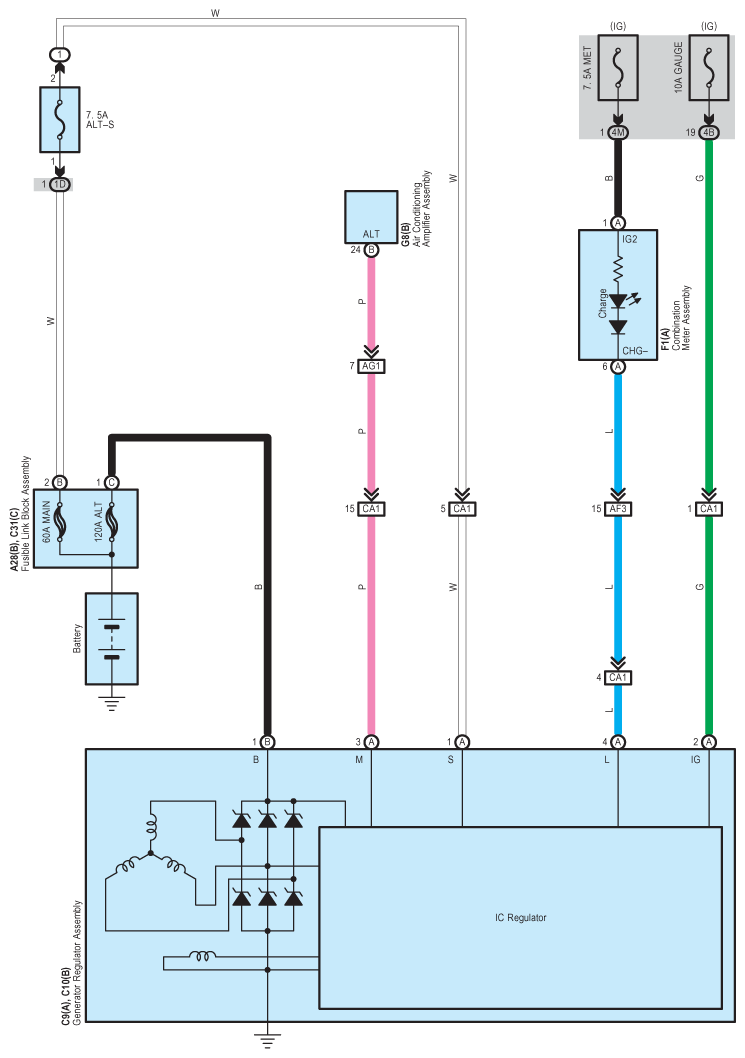

Fig 1: Charging - Circuit Diagram

G07597289

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
