Repair and Diagnosis
›
Engine Performance
›
2ZR-FE Engine Control System
›
SFI System
›
Cranking Holding Function Circuit
›
Wiring Diagram
Cranking Holding Function Circuit: Wiring Diagram

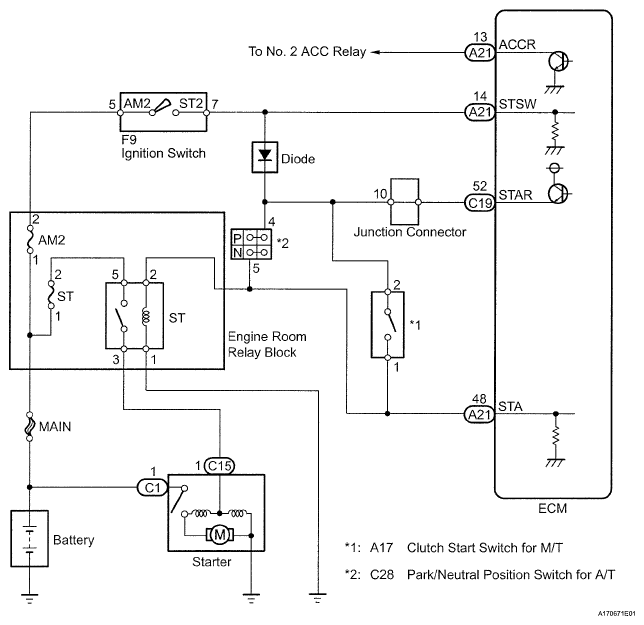

Fig 1: Starter Relay - Wiring Diagram
