Repair and Diagnosis
›
Engine Performance
›
2ZR-FE Engine Control System
›
SFI System
›
Fuel Injector Circuit
›
Wiring Diagram

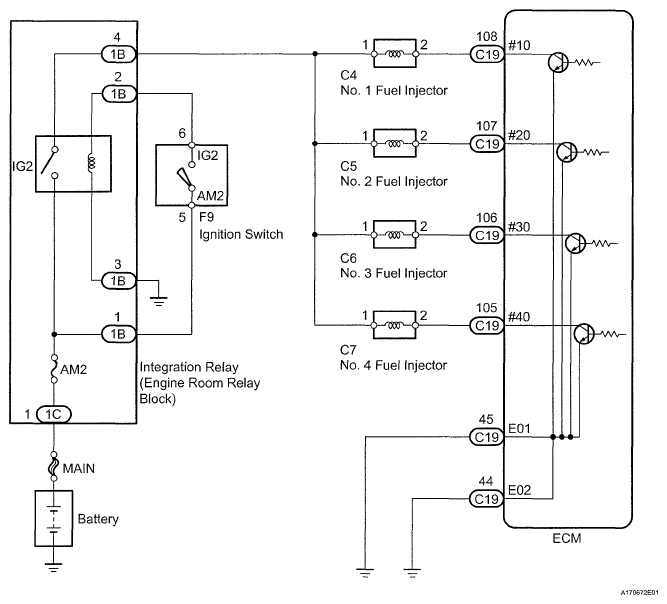

Fuel Injector Circuit: Wiring Diagram
Fig 1: Fuel Injector Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
