Manual Shifting Test

The purpose of this manual shifting test is to determine whether a problem is caused by either mechanical or electrical factors. Disconnecting the transmission wire disables electrically-controlled automatic gear shifting. In this case, operating the shift lever is the only way to shift the transaxle gear. If the gear is not changed by shift lever operation, it is assumed that there is a mechanical problem.

1. Turn the ignition switch to OFF.
2. Disconnect the transmission wire connector.
3. Warm up the engine.
4. Drive the vehicle.
5. Check the transaxle operation when the shift lever is moved into L, 2, 3 and D positions.

   Standard:

   SHIFT LEVER POSITION AND OPERATION REFERENCE



   Shift Lever	Operation
   L to 2	Shifting does not occur
   2 to 3	Shifting does not occur
   3 to D	Shifting does not occur
   D to 3	Shifting does not occur
   3 to 2	Shifting does not occur
   2 to L	Shifting does not occur

6. Turn the ignition switch to OFF.
7. Connect the transmission wire connector.
8. Clear DTCs (See DTC CHECK/CLEAR  ).

   HINT:

   When the transmission wire is disconnected, the transaxle gear will be set as listed below.

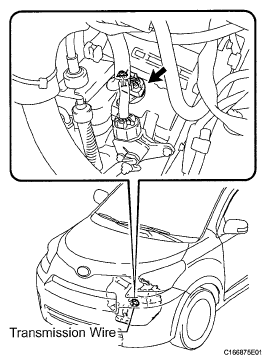

   Fig 1: Locating Transmission Wire Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   SHIFT LEVER POSITION AND GEAR REFERENCE



   Shift Lever	Gear
   P	Park
   R	Reverse
   N	Neutral
   D	3rd
   3	3rd
   2	3rd
   L	3rd
