Shift Lever: Components

Fig 1: Identifying Shift Lever Components (1 Of 2)
G05399997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

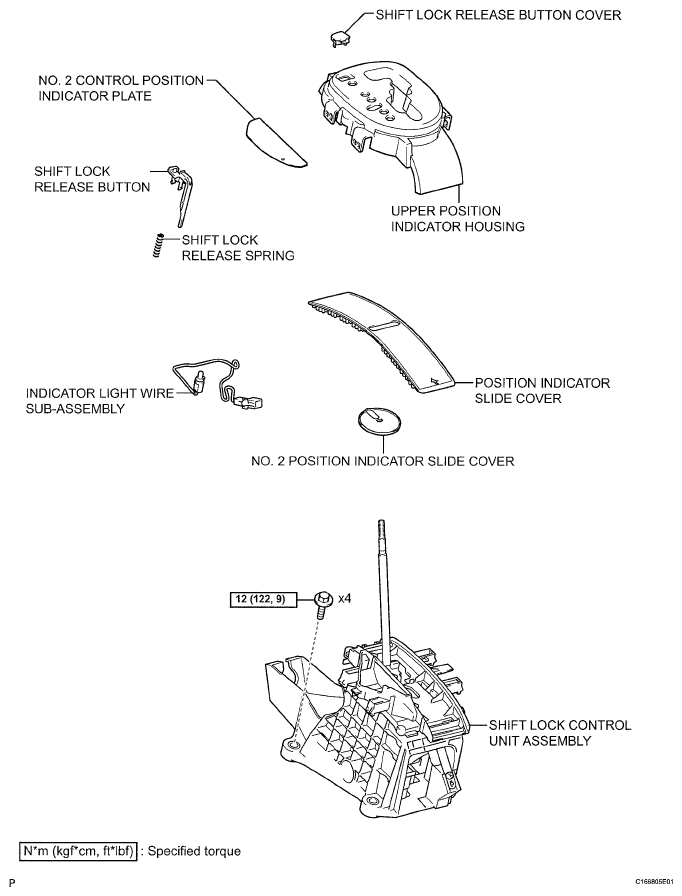

Fig 2: Shift Lever Replacement Components With Torque Specifications (2 Of 2)
G05399998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
