Transponder Key Ecu: Components

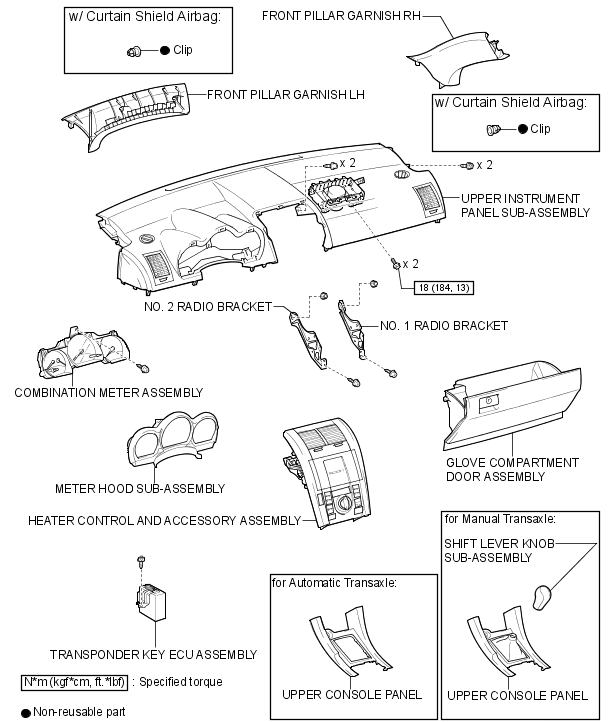

Fig 1: Identifying Transponder Key ECU Components
G00487354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
