Stop Light: Notes

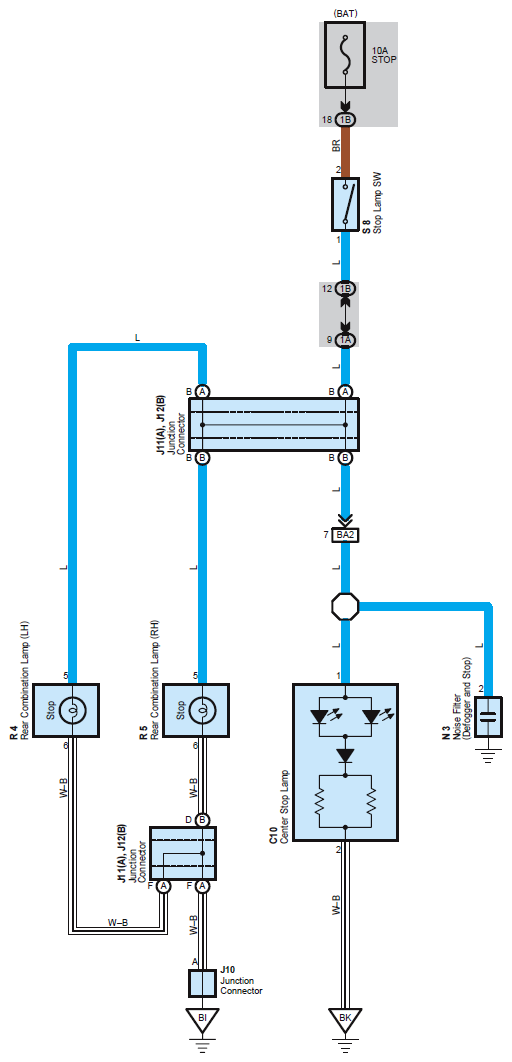

Fig 1: Stop Light - Circuit Diagram
G07604540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
