OEM System Circuits: Taillight: Notes

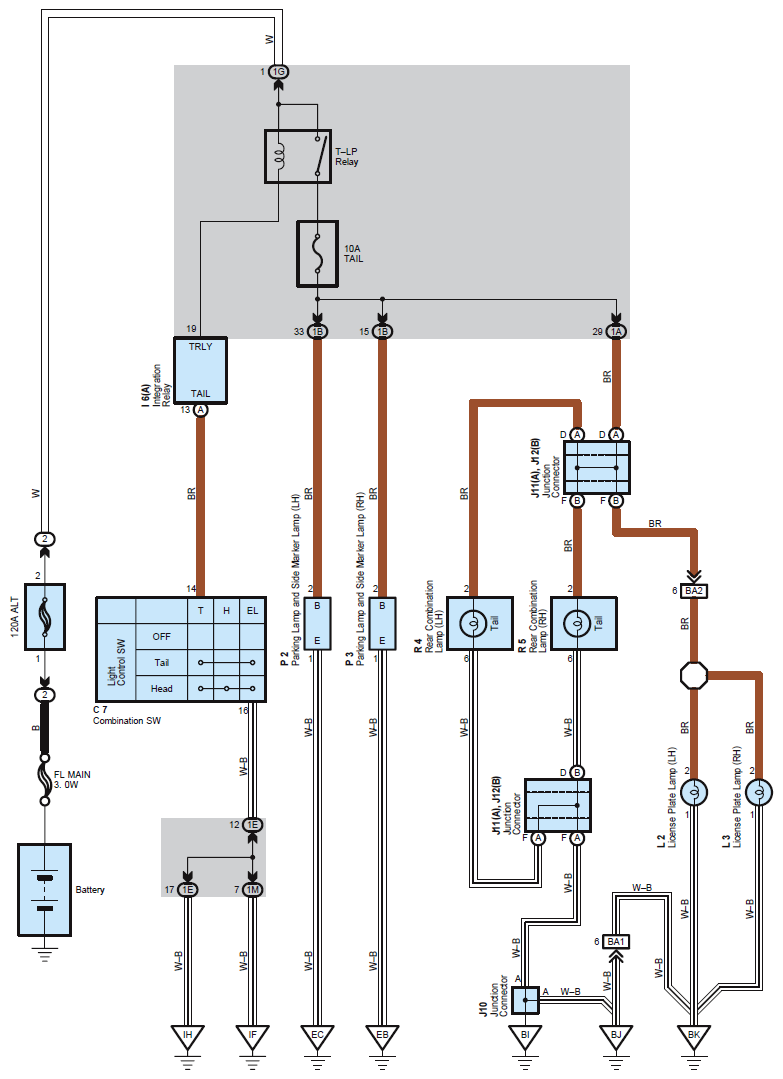

Fig 1: Taillight - Circuit Diagram
G07604539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
