Rear Wheel Alignment: Adjustment

1. Inspect the tire (see INSPECTION ).

1. Measure the vehicle height (see ADJUSTMENT  ).

Standard toe-in

If the toe-in is not within the specified range, inspect the suspension parts and replace them if necessary.

Fig 1: Identifying Toe-In

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the camber-caster-kingpin gauge or position the vehicle on the wheel alignment tester.
2. Inspect the camber.

   Standard camber

   CAMBER SPECIFICATION



   Item	Specified Condition
   Camber	-0°56' +- 30' (-0.9° +- 0.5°)
   Right-left error	30' (0.5°) or less

   If the measured value is not within the specified range, inspect the suspension parts for damage and/or wear and replace them if necessary because camber is not adjustable.

1. Measure the distance from the LH rear suspension arm bracket set bolt to the RH rear axle carrier rear side set bolt as shown in the illustration.
2. Measure the distance from the RH rear suspension arm bracket set bolt to the LH rear axle carrier rear side set bolt as shown in the illustration.

   Standard length difference:

   6.0 mm (0.236 in.) or less

   If the difference exceeds the specified value, adjust it by turning the camber adjusting cam and tie rod adjusting tube.

   Fig 2: Identifying Measuring Distance

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Loosen the camber adjusting cam set nut.
4. Loosen the tie rod adjusting tube set nuts.
5. Adjust the camber and toe-in by turning the adjust cam and adjusting tube.

   HINT:

   Adjust the camber and toe-in to the center of the specified ranges as much as possible.

   Standard toe-in

   TOE-IN SPECIFICATION



   Item	Specified Condition
   Toe-in (total)	A + B: 0°18' +- 6' (0.3° +- 0.1°) C + D: 3.0 +-1.0 mm (0.12 +- 0.04 in.)

   Fig 3: Turning Adjust Cam

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard camber

   CAMBER SPECIFICATION



   Item	Specified Condition
   Camber	-0°56' +- 20' (-0.9° +- 0.3°)
   Right-left error	30' (0.5°) or less

6. Tighten the camber adjusting cam set nut.

   Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

7. Tighten the tie rod adjusting tube set nut.

   Torque: 56 N*m (571 kgf*cm, 41 ft.*lbf)

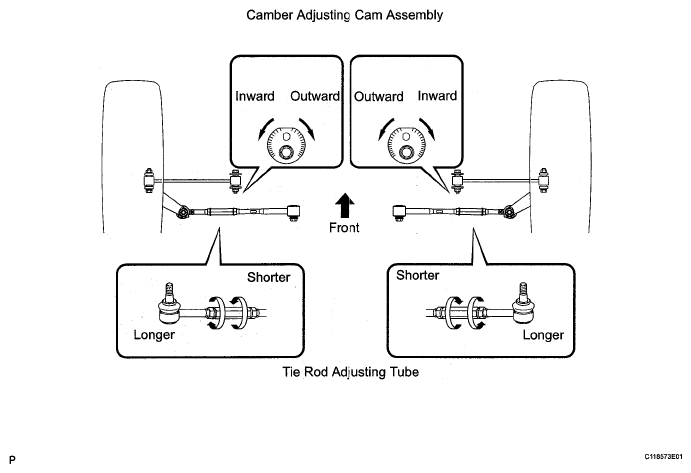

   Fig 4: Identifying Camber Adjusting Cam Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. How to read an adjustment chart (Using examples).
   1. Measure the present alignment.

      Example:

      Camber (RH):

      -1°26' (-1.4°)

      Camber (LH):

      -2°26' (-2.4°)

      Toe-in (total):

      IN 7.0 mm (0.276 in.)

   2. Mark the difference between the standard value (A) and the measured value (B) on the adjustment chart.

      Standard value:

      Camber:

      -0°56' (-0.9°)

      Toe-in (total):

      IN 3.0 mm (0.12 in.)

      Formula:

      A-B = C

      Camber (RH):

      -0°56' - (-1°26') = 0°30'

      Camber (LH):

      -0°561 - (-2°26') = 1°30'

      Toe-in (total):

      IN 3.0 - IN 7.0 = OUT 4.0

      Toe-in (each side):

      OUT 2.0

      Fig 5: Identifying Adjustment Chart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. As shown in the example chart, read the distance from the marked point to the center of the chart, and adjust the upper and/or lower arm adjusting cams accordingly.

      Amount to turn camber adjusting cam assembly (by graduation ):

      Scale (RH):

      -(Inward) 1.5

      Scale (LH):

      - (Inward) 5.5

      Amount to turn tie rod adjusting tube (by graduation):

      Angle (RH):

      - (Shorter) 96°

      Angle (LH):

      -(Shorter) 108°

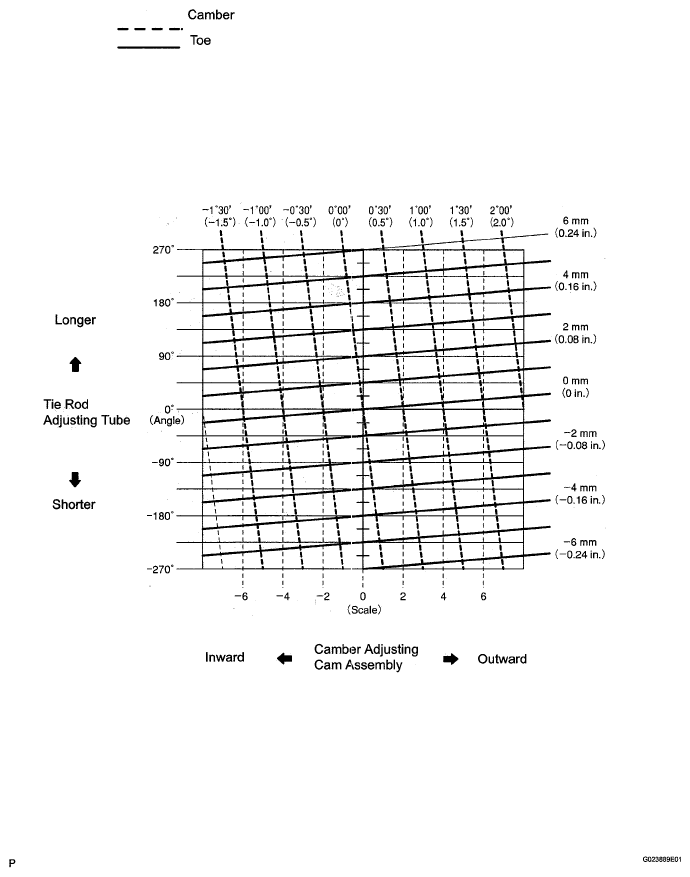

      Fig 6: Identifying Camber Adjusting Cam Assembly Adjustment Chart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
