Home › Scion › 2009 › tC Standard › Repair and Diagnosis › Transmission › Clutch › Clutch Unit › Components

Clutch Unit: Components

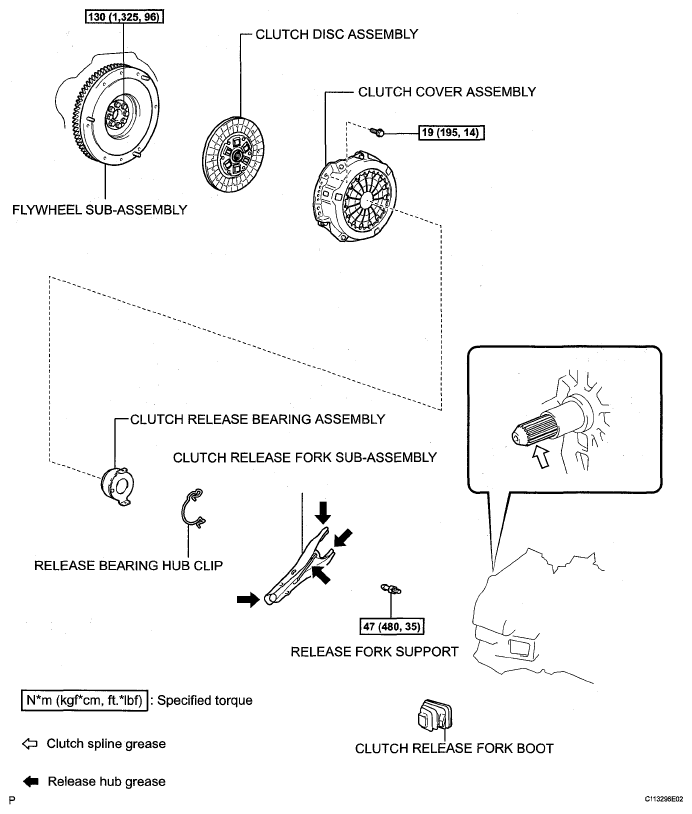

Fig 1: Clutch Unit Components With Torque Specifications
G05539565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
