Scion
›
2009
›
xB Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Power Door Lock Control System
›
Parts Location
Parts Location

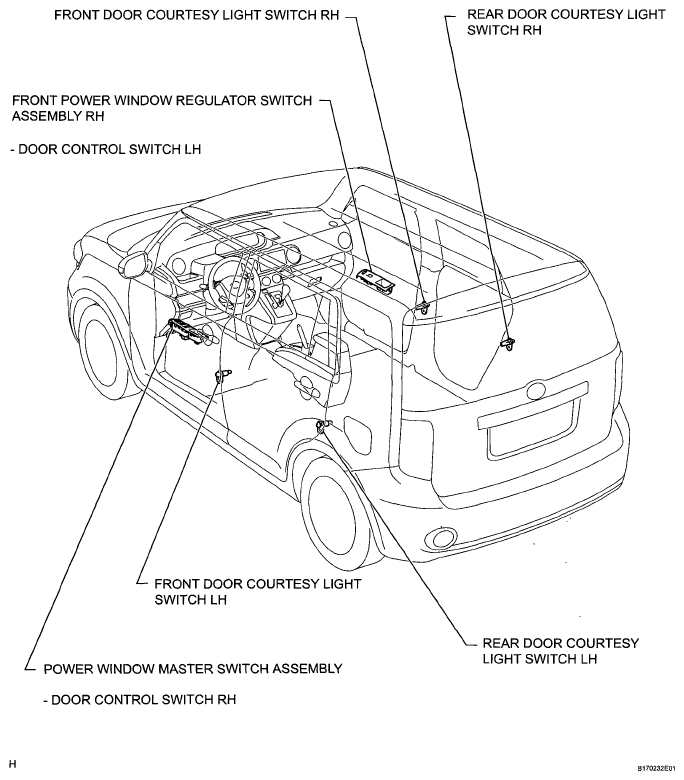

Fig 1: Identifying Power Door Lock Control System Components Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

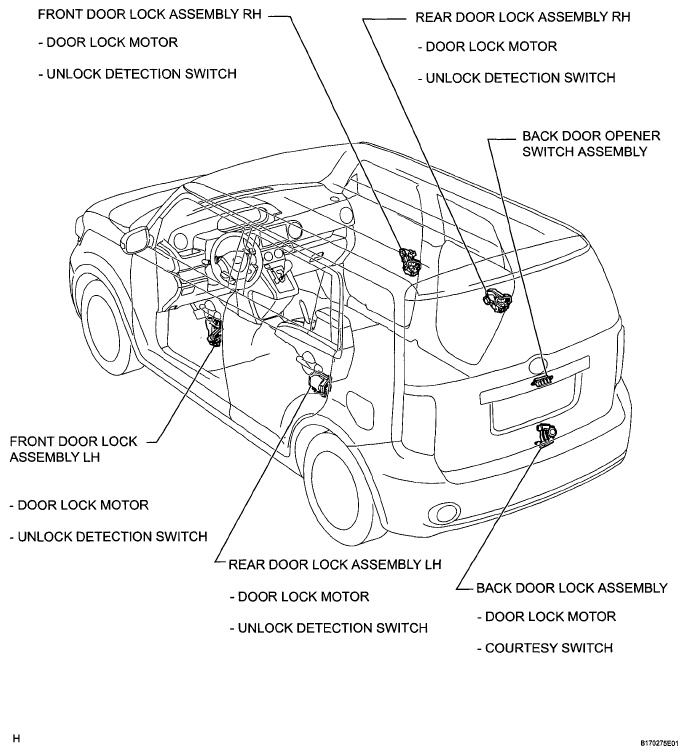

Fig 2: Identifying Power Door Lock Control System Components Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

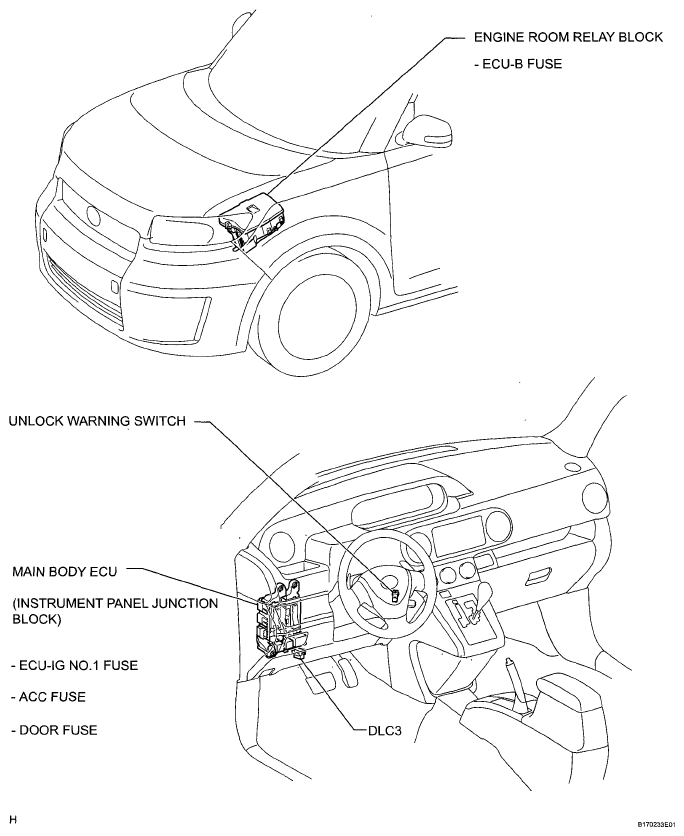

Fig 3: Identifying Power Door Lock Control System Components Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
