Front Console Box: Installation

  1. INSTALL CONSOLE BOX ASSEMBLY
    1. Install the console box with the 3 bolts.
    2. Install the 2 clips.
      Fig 1: Locating & Installing Console Box, 3 Bolts And 2 Clips
      G05391973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the 2 clamps.
    4. Connect the 2 connectors.
      Fig 2: Locating & Installing Console Box Assembly, 2 Clamps And 2 Connectors
      G05391972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CONSOLE BOX CARPET
    1. Install the console box carpet.
      Fig 3: Identifying & Installing Console Box Carpet
      G05391971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Engage the clip and 7 claws and install the upper console panel.

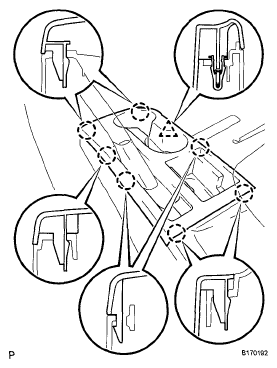

      Fig 4: Identifying & Installing Upper Console Panel Clip & 7 Claws
      G05391970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
