On-Vehicle Inspection

  1. INSPECT INTAKE SYSTEM

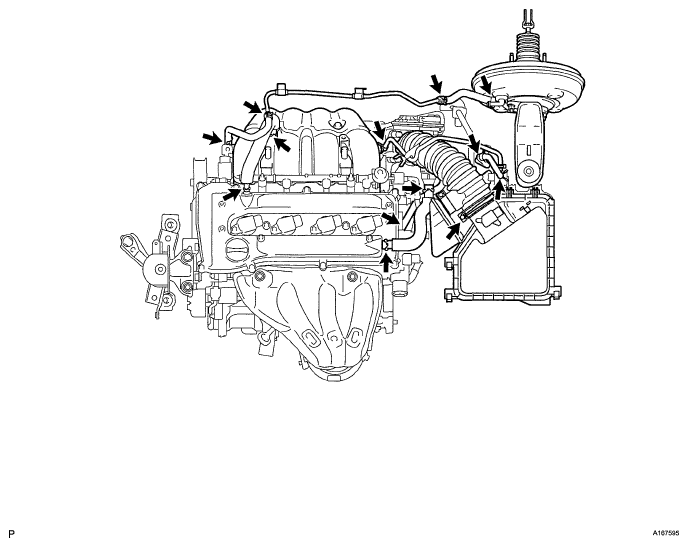

    1. Check that there is no air suction at the points shown in the illustration.
      Fig 1: Locating Air Suction Points
      G05387646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
