Fuel Pressure Pulsation Damper: Components

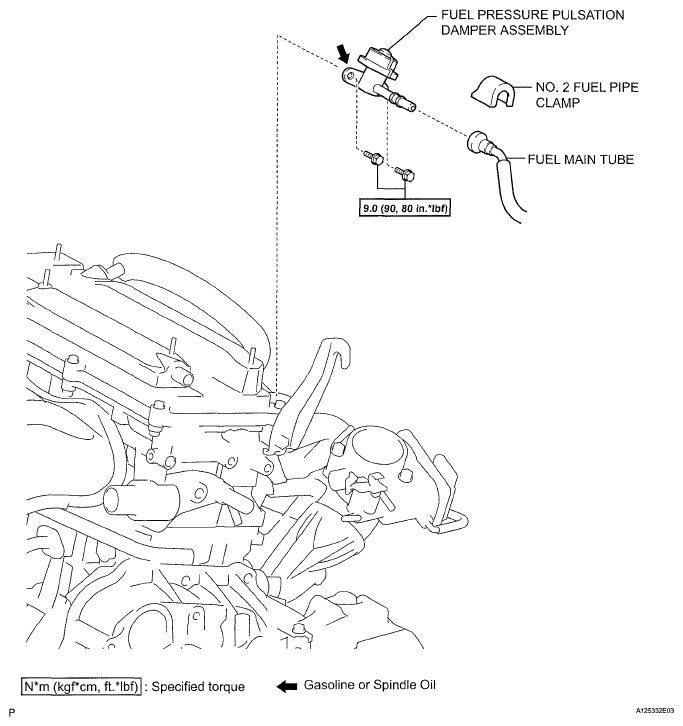

Fig 1: Identifying Fuel Pressure Pulsation Damper Components And Tightening Torque (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

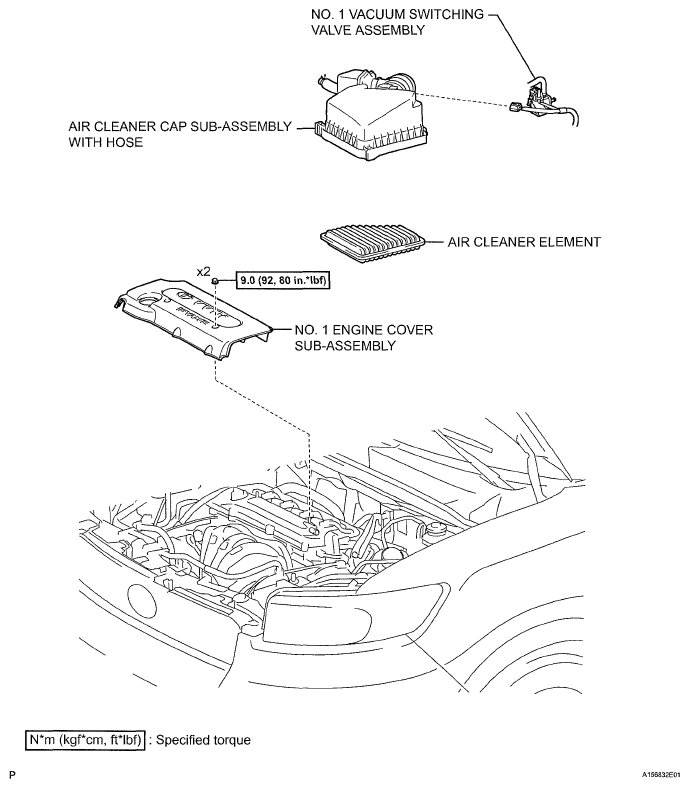

Fig 2: Identifying Fuel Pressure Pulsation Damper Components And Tightening Torque (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
