Fuel Pressure Regulator: Components

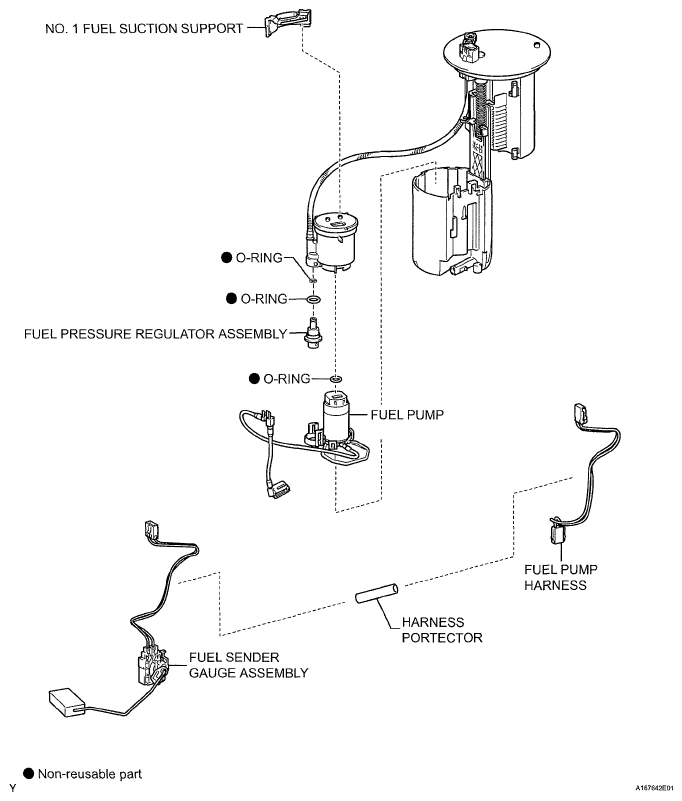

Fig 1: Identifying Fuel Pressure Regulator Components And Tightening Torques (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

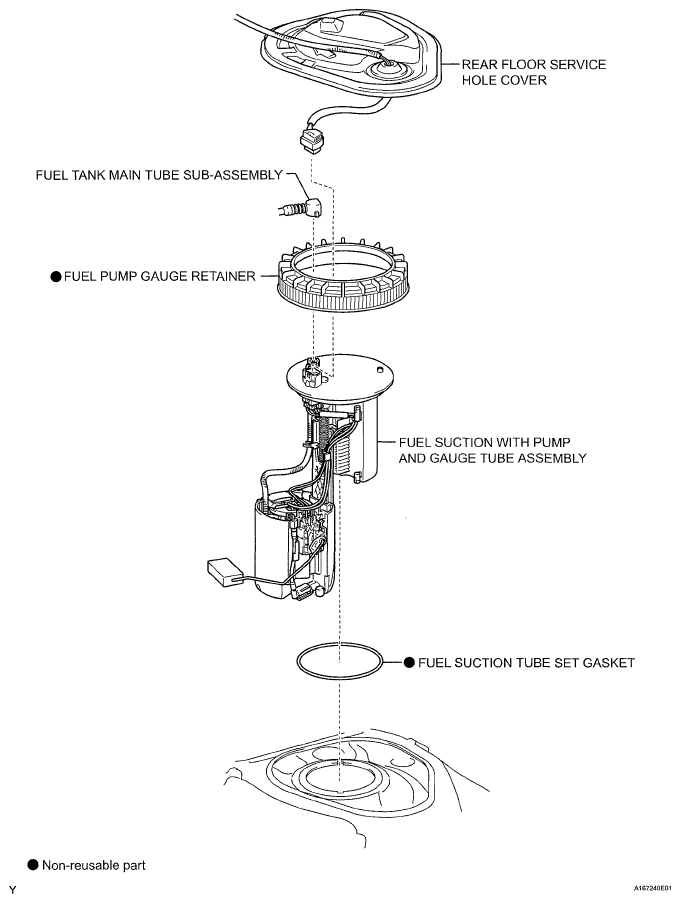

Fig 2: Identifying Fuel Pressure Regulator Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Fuel Pressure Regulator Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
