Rear Axle Hub: Components

WARNING: This page is about a different car, the 2008 Scion xB. However, it is still accessible from the selected car via links, so may be relevant.

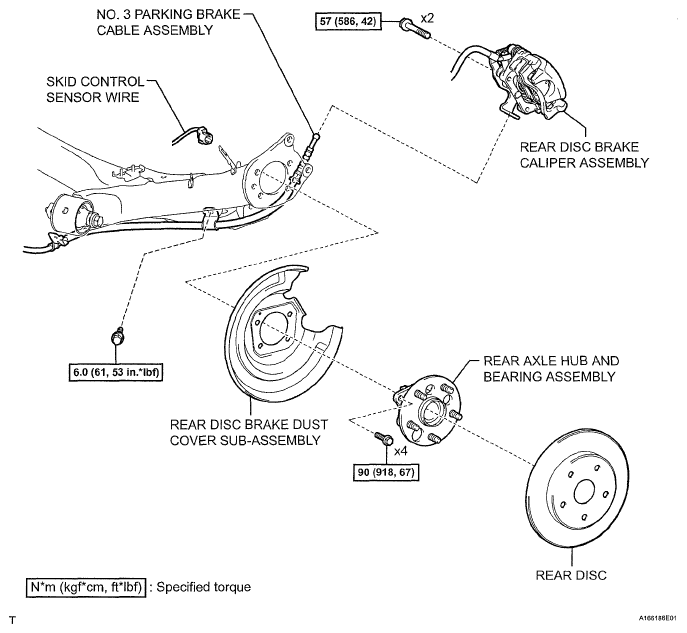

Fig 1: Rear Axle Hub Bolt Replacement Components With Torque Specifications (1 Of 2)
