Rear Coil Spring: Installation

INSTALL REAR COIL SPRING UPPER INSULATOR
1. Install the rear coil spring upper insulator onto the rear coil spring.
  NOTE: Install the rear coil spring upper insulator so that the dimension between the stopper and the upper end of the rear coil spring is 10 mm (0.39 in.) or less.

  Fig 1: Identifying Dimension Between Stopper And Upper End Of Rear Coil Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR COIL SPRING LOWER INSULATOR
INSTALL REAR COIL SPRING
1. Install the rear coil spring onto the rear axle beam.
  NOTE: Install the rear coil spring so that the identification mark is positioned as shown in the illustration.

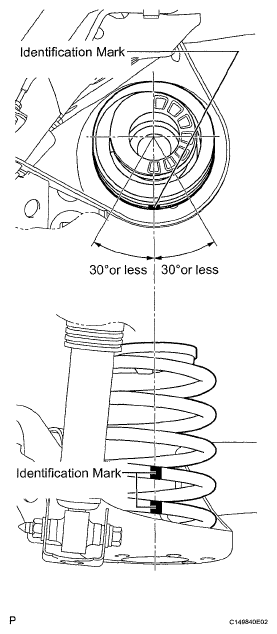

Fig 2: Identifying Identification Mark On Rear Coil Spring Installation Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEMPORARILY TIGHTEN REAR SHOCK ABSORBER ASSEMBLY LH (See INSTALLATION )
TEMPORARILY TIGHTEN REAR SHOCK ABSORBER ASSEMBLY RH
HINT:

Perform the same procedure as for the LH side.
CONNECT SKID CONTROL SENSOR WIRE (for LH Side) (See INSTALLATION )
CONNECT SKID CONTROL SENSOR WIRE (for RH Side)
HINT:

Perform the same procedure as for the LH side.
INSTALL REAR WHEELS
INSTALL REAR FLOOR SIDE MEMBER BRACE SUB-ASSEMBLY (See INSTALLATION )
INSTALL REAR FLOOR SIDE MEMBER COVER RH (See INSTALLATION )
INSTALL REAR FLOOR SIDE MEMBER COVER LH (See INSTALLATION )
STABILIZE SUSPENSION (See INSTALLATION )
FULLY TIGHTEN REAR AXLE BEAM ASSEMBLY (See INSTALLATION )
FULLY TIGHTEN REAR SHOCK ABSORBER ASSEMBLY LH (See INSTALLATION )
FULLY TIGHTEN REAR SHOCK ABSORBER ASSEMBLY RH
HINT:

Perform the same procedure as for the LH side.
INSPECT REAR WHEEL ALIGNMENT
(See INSPECTION )
CHECK VSC SENSOR SIGNAL
HINT:

(See TEST MODE PROCEDURE )
