System Diagram

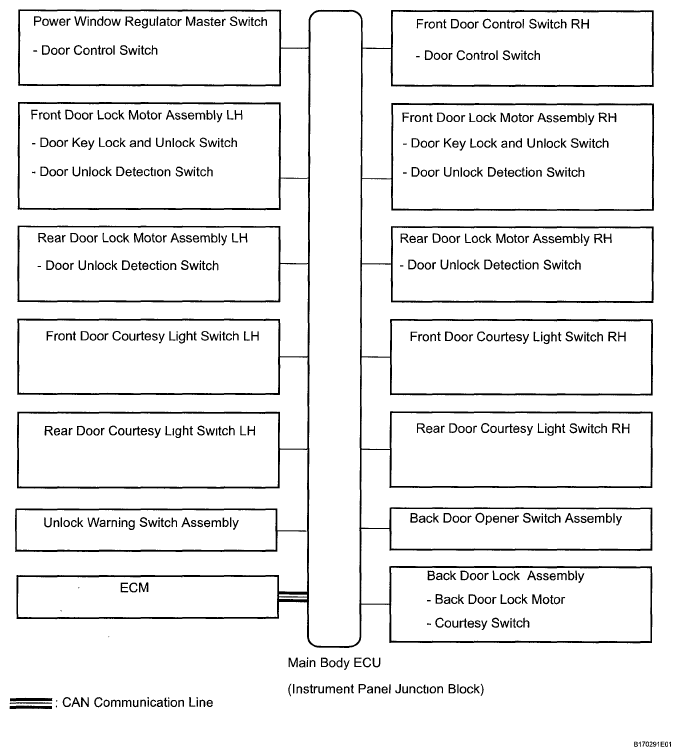

Fig 1: Power Door Lock Control System Diagram

G05390955

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table:

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
ECM Main Body ECU	Park/Neutral	Position Switch	CAN
