Automatic Transaxle Assembly: Components

WARNING: This page is about a different variant/trim than selected.

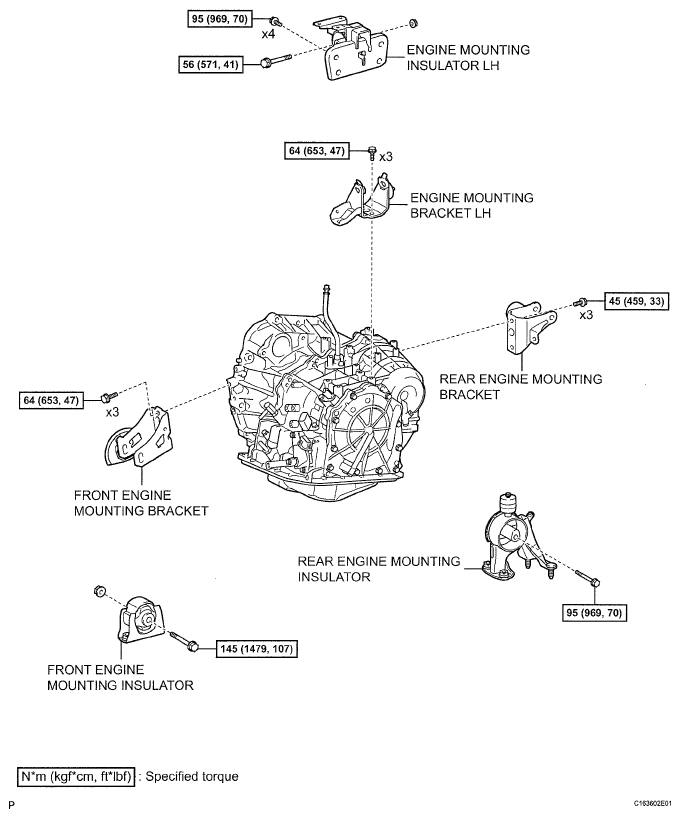

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

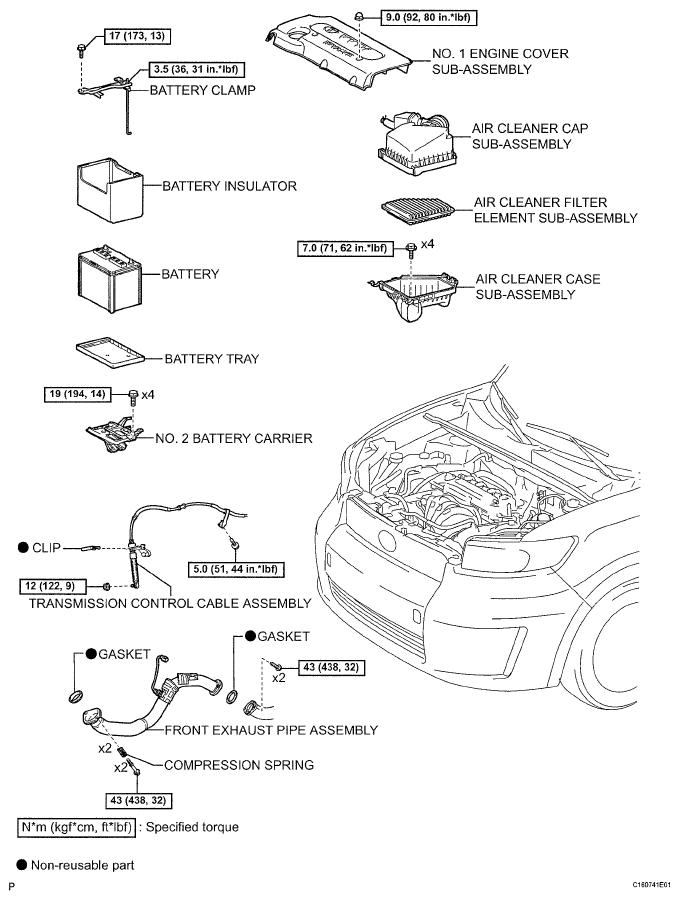

Fig 4: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (4 Of 6)

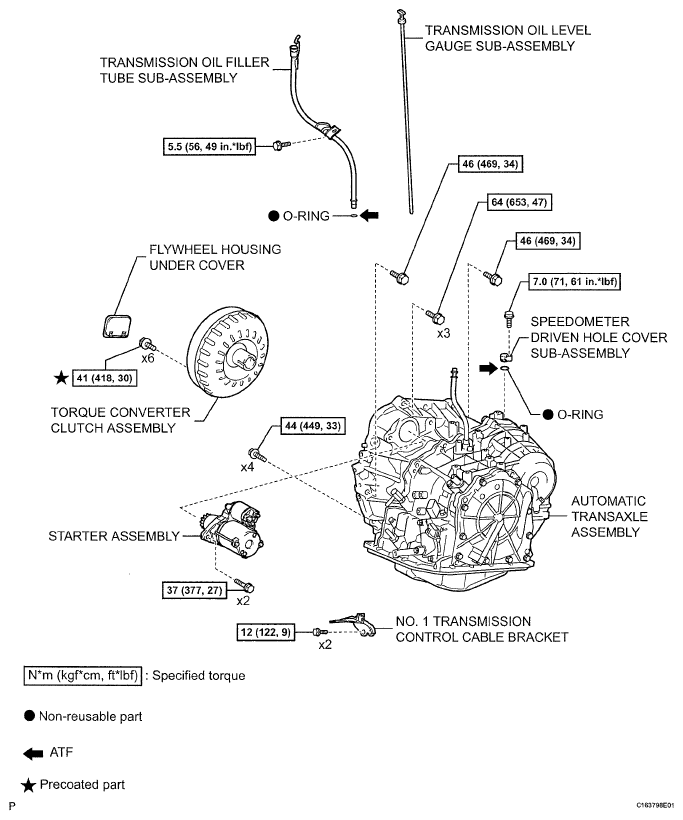

Fig 5: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (5 Of 6)

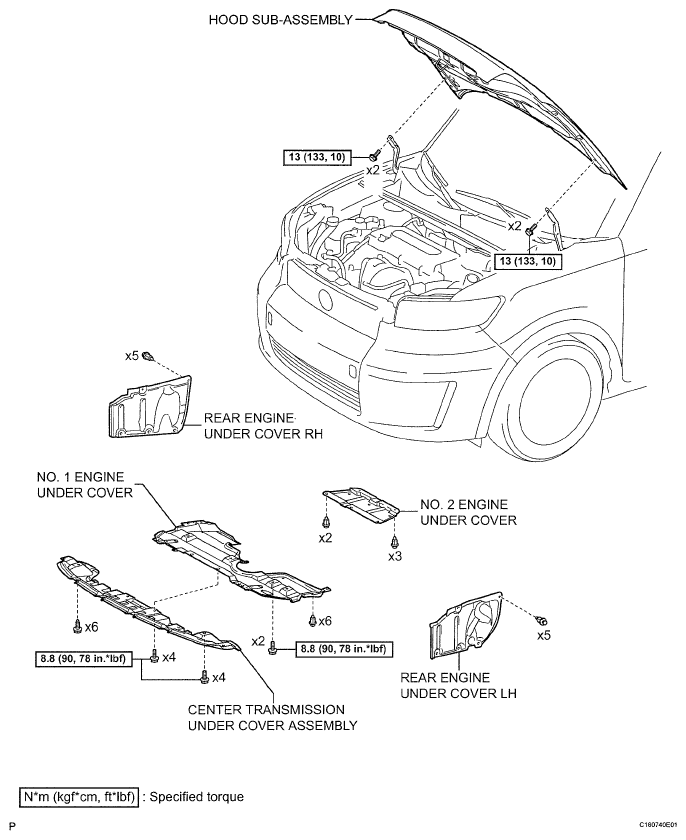

Fig 6: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (6 Of 6)
