System Diagram

WARNING: This page is about a different variant/trim than selected.

The configuration of the electronic control system in the U241E automatic transaxle is as shown in the following illustrations.

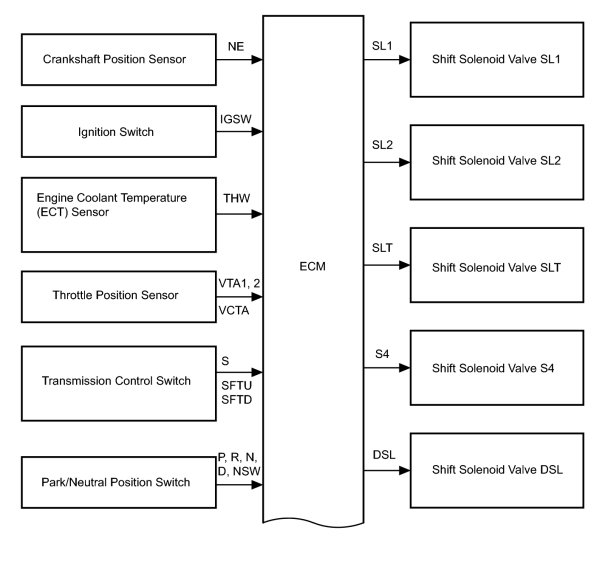

Fig 1: Automatic Transaxle System - System Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

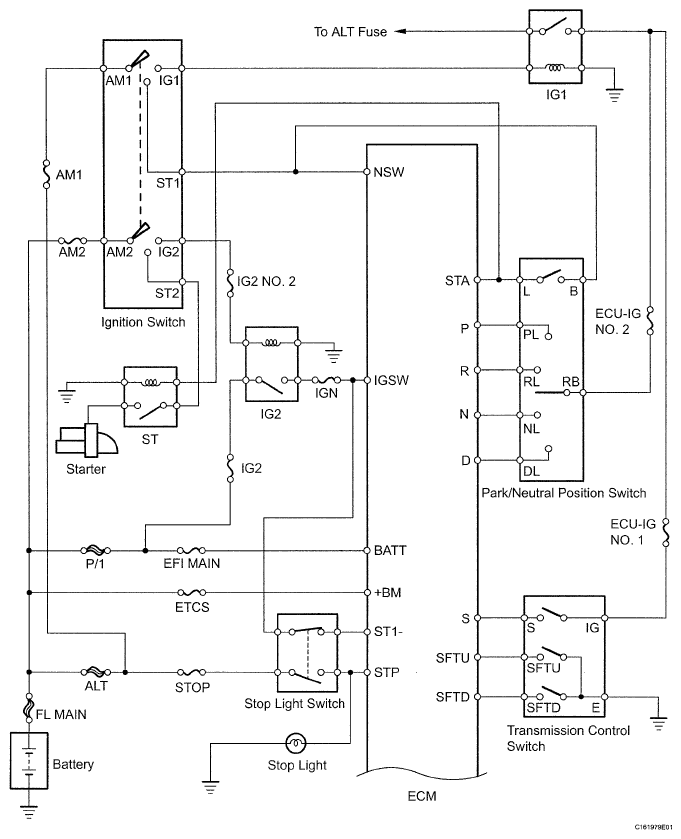

Fig 2: Automatic Transaxle System - System Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

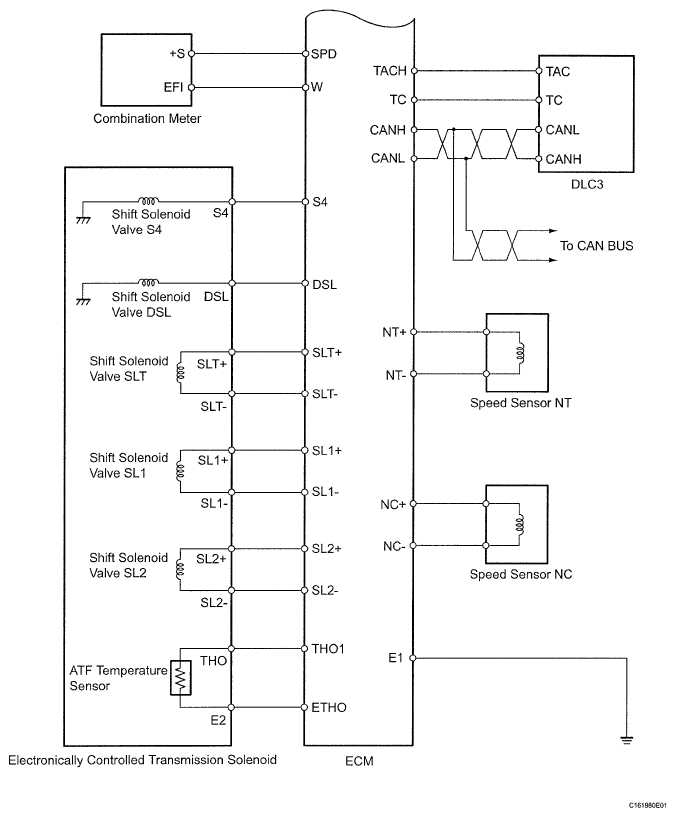

Fig 3: Automatic Transaxle System - System Diagram (3 Of 4)

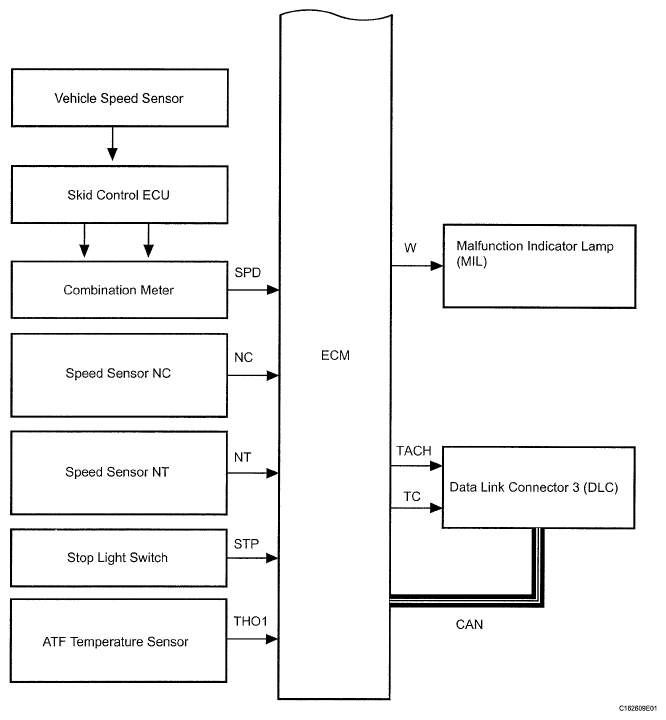

Fig 4: Automatic Transaxle System - System Diagram (4 Of 4)
