Differential Case: Components

WARNING: This page is about a different variant/trim than selected.

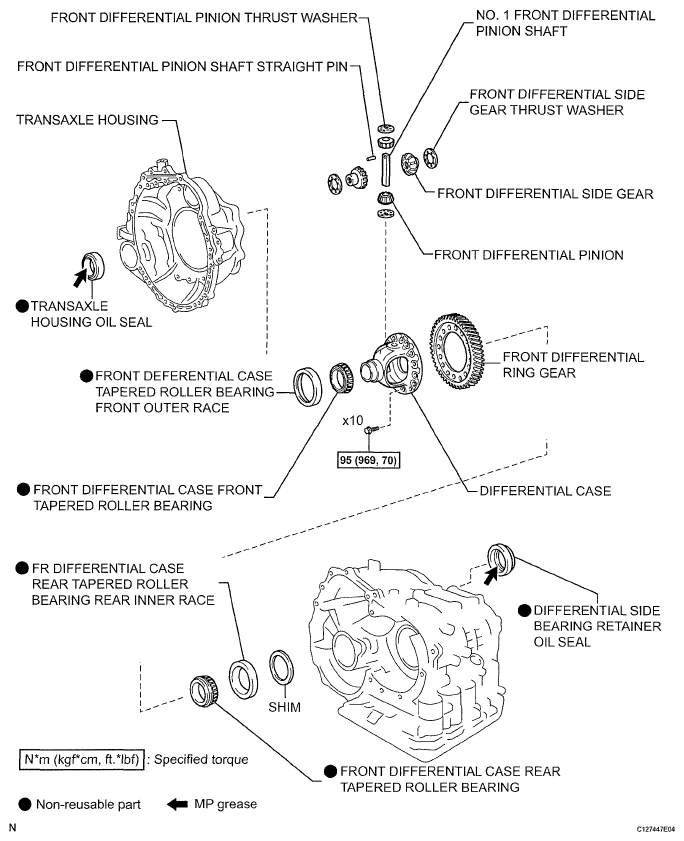

Fig 1: Differential Case Replacement Components With Torque Specifications

G05388624

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
