Direct Clutch: Components

WARNING: This page is about a different variant/trim than selected.

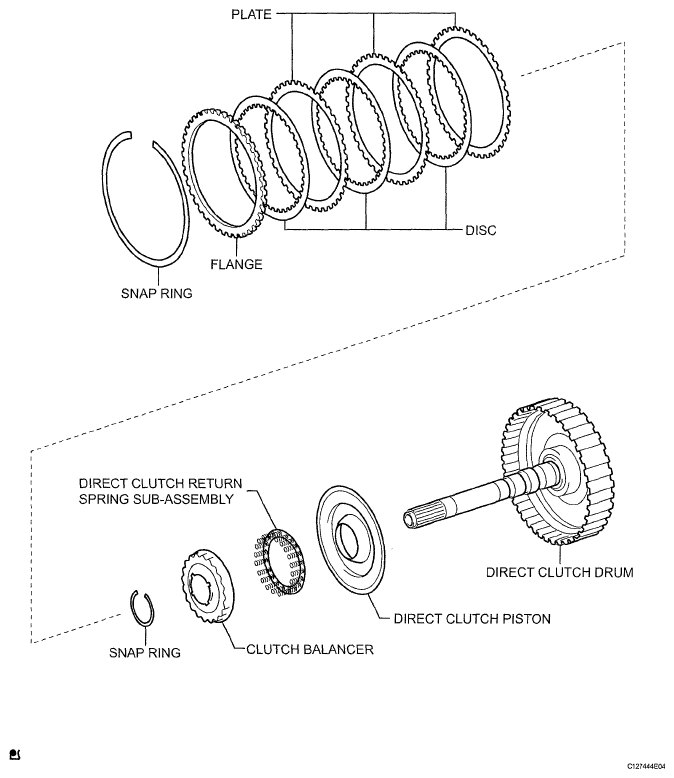

Fig 1: Identifying Direct Clutch Components
G05388545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
