Clutch Accumulator: Components

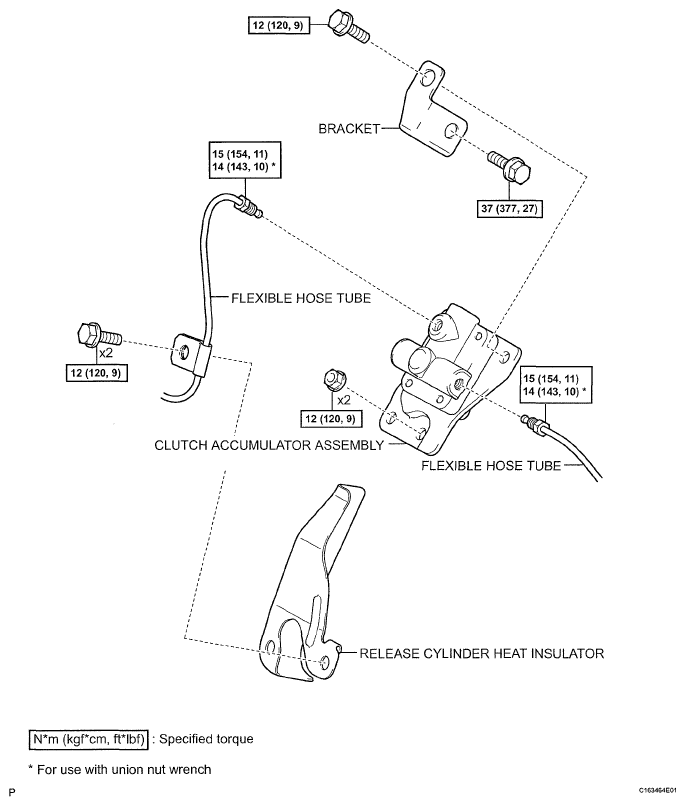

Fig 1: Locating Clutch Accumulator Components With Torque Specifications
G05388695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
