Clutch Pedal: Components

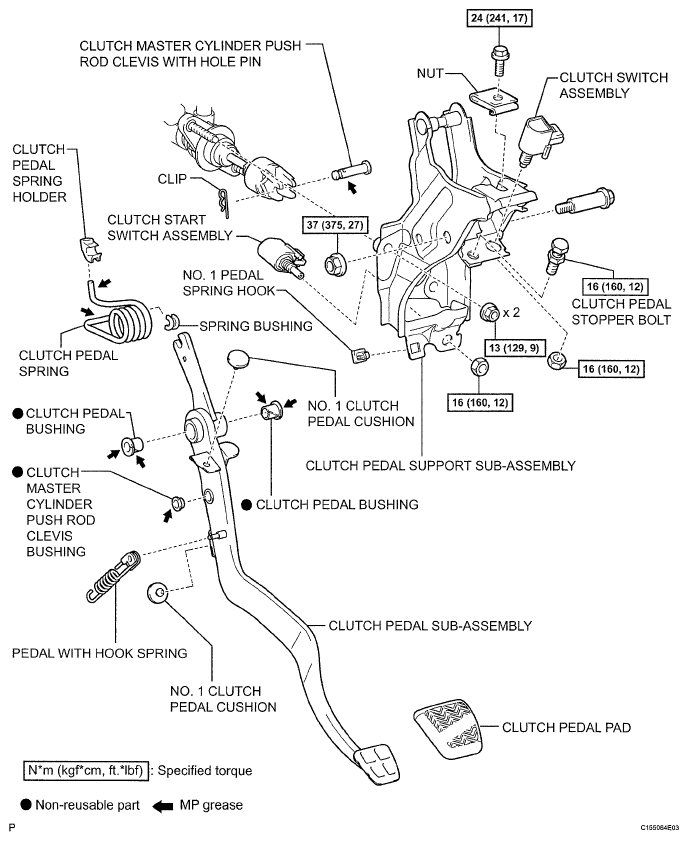

Fig 1: Clutch Pedal Replacement Components With Torque Specifications
G05388658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
