Differential Case: Components

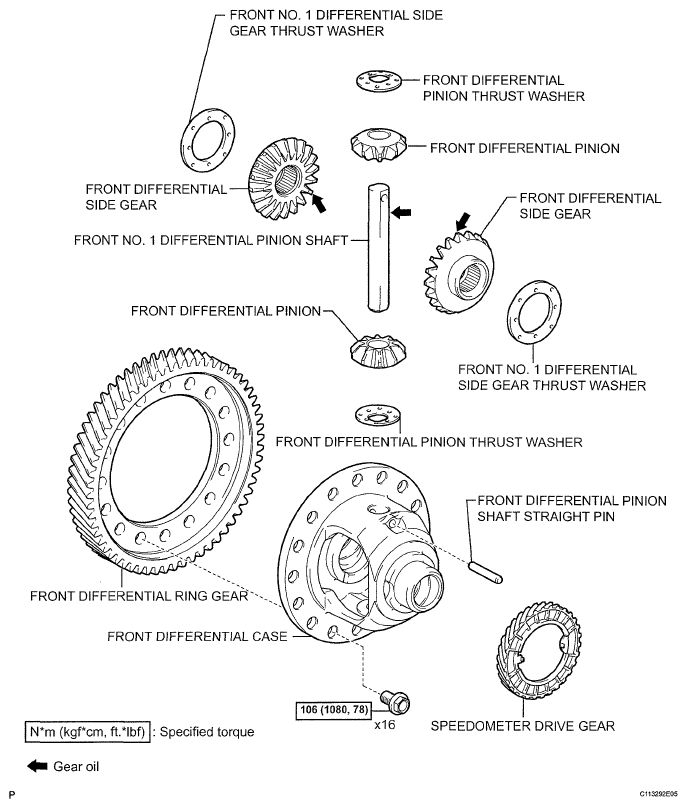

Fig 1: Identifying Differential Case Components With Tightening Torque
G05389076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
