Shift And Select Lever Shaft: Components

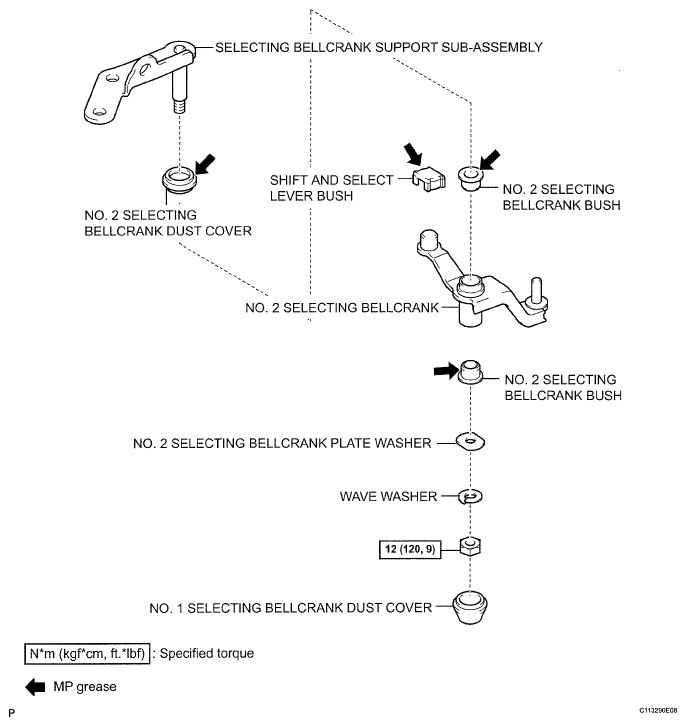

Fig 1: Identifying Shift And Select Lever Shaft Components And Tightening Torques (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

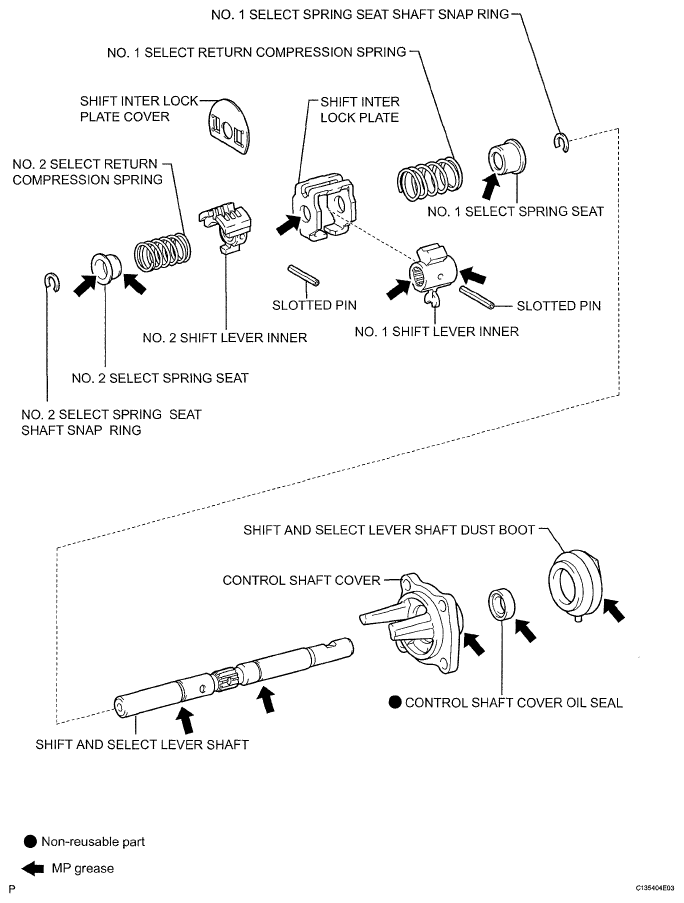

Fig 2: Identifying Shift And Select Lever Shaft Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
