Roof Headlining: Components

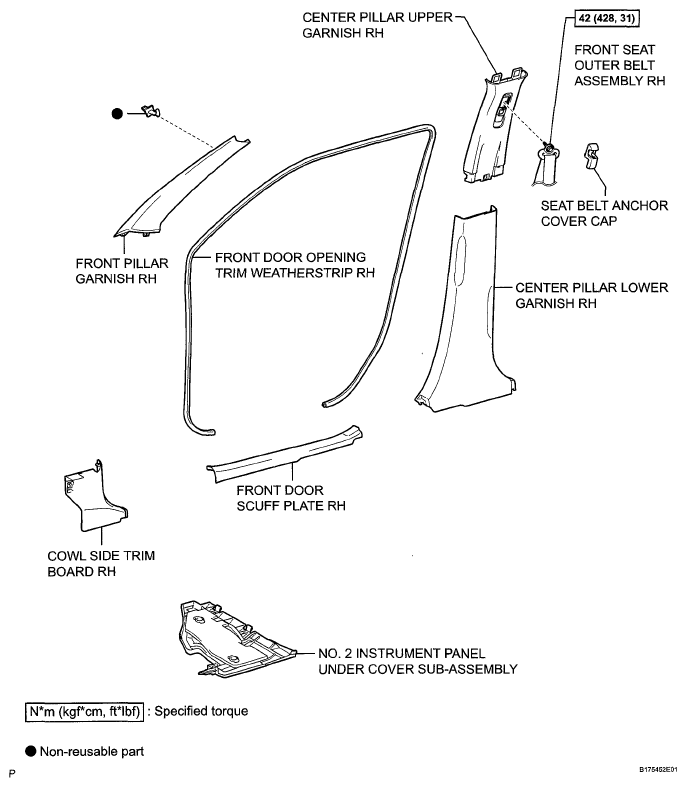

Fig 1: Roof Headlining Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

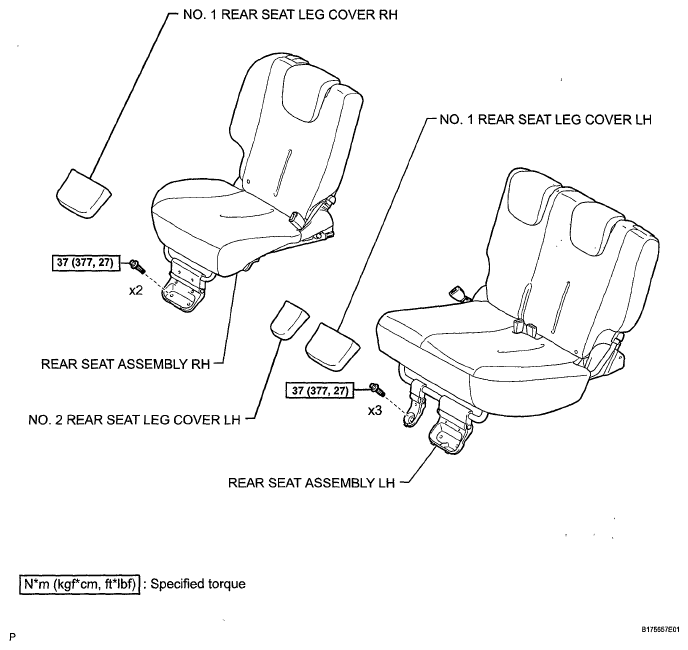

Fig 2: Roof Headlining Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

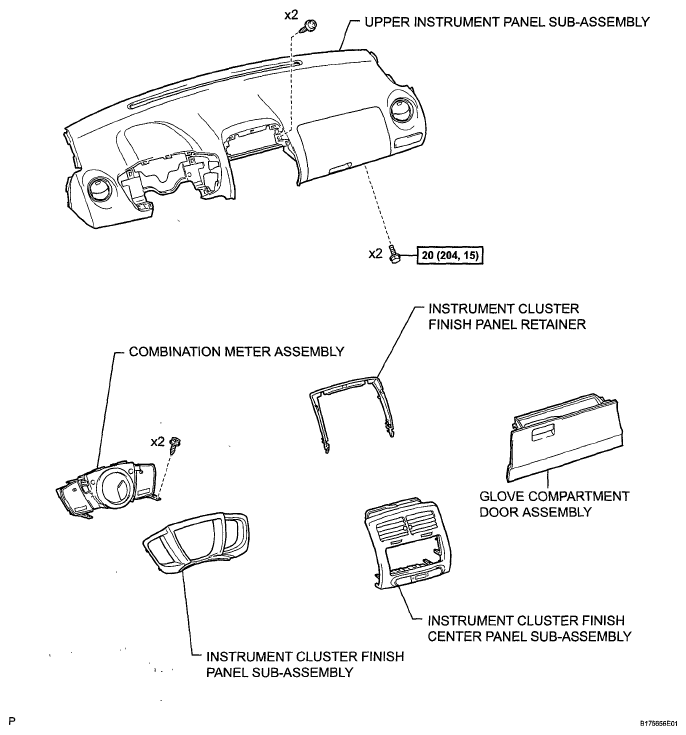

Fig 3: Roof Headlining Replacement Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

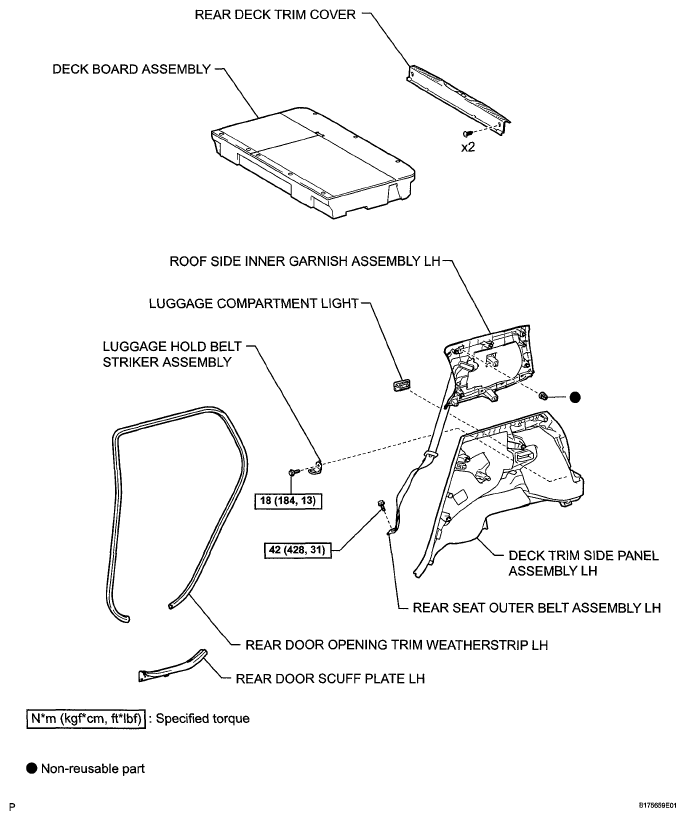

Fig 4: Roof Headlining Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

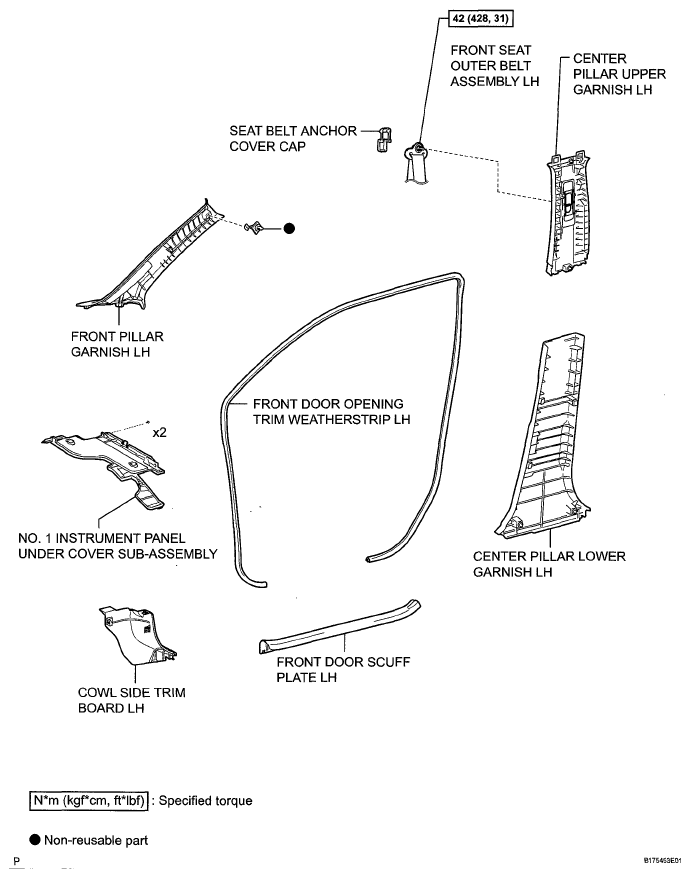

Fig 5: Roof Headlining Replacement Components With Torque Specifications (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Roof Headlining Replacement Components With Torque Specifications (6 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

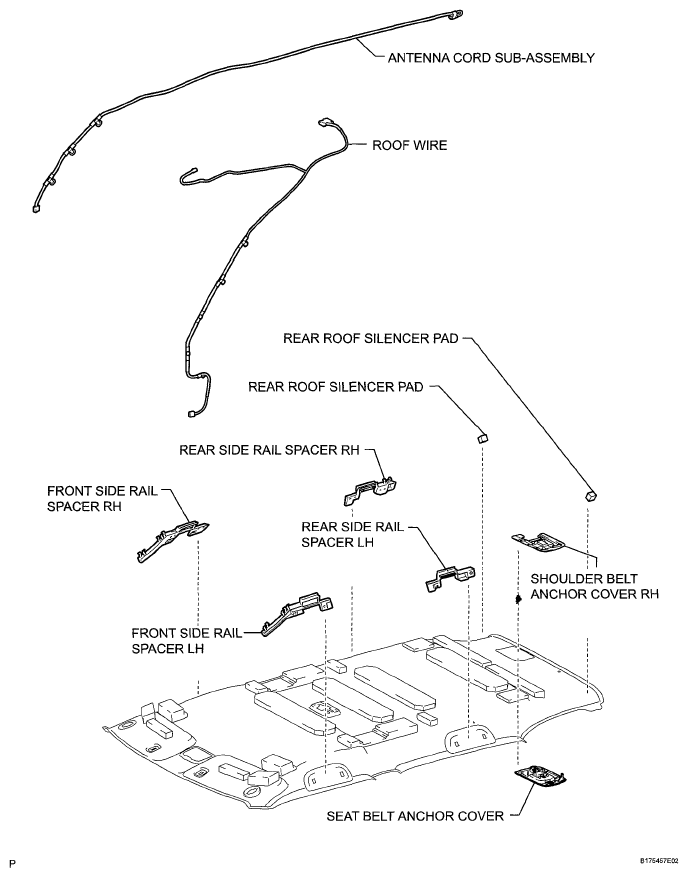

Fig 7: Identifying Roof Headlining Components (7 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

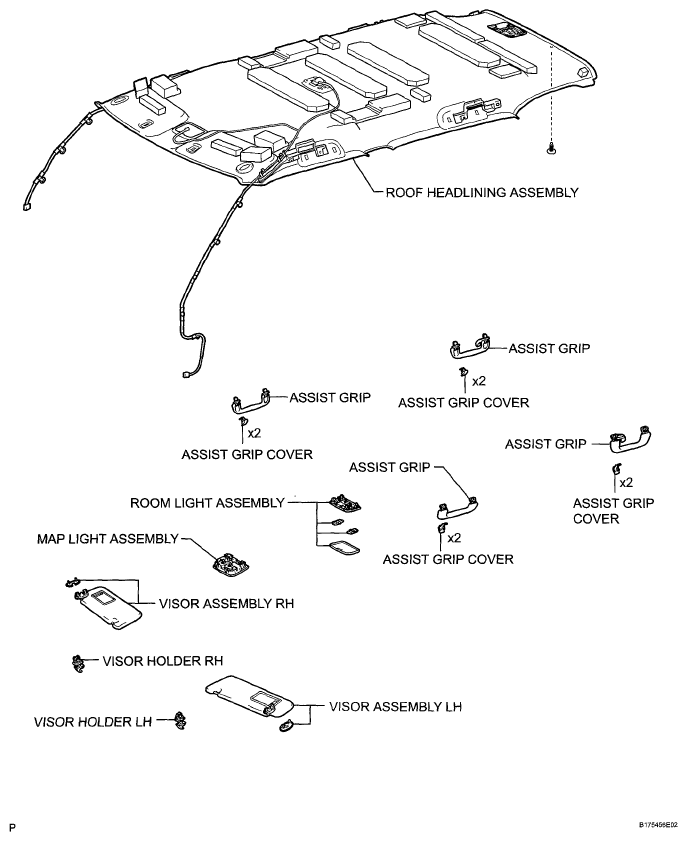

Fig 8: Identifying Roof Headlining Components (8 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
