Back Door Glass: Components

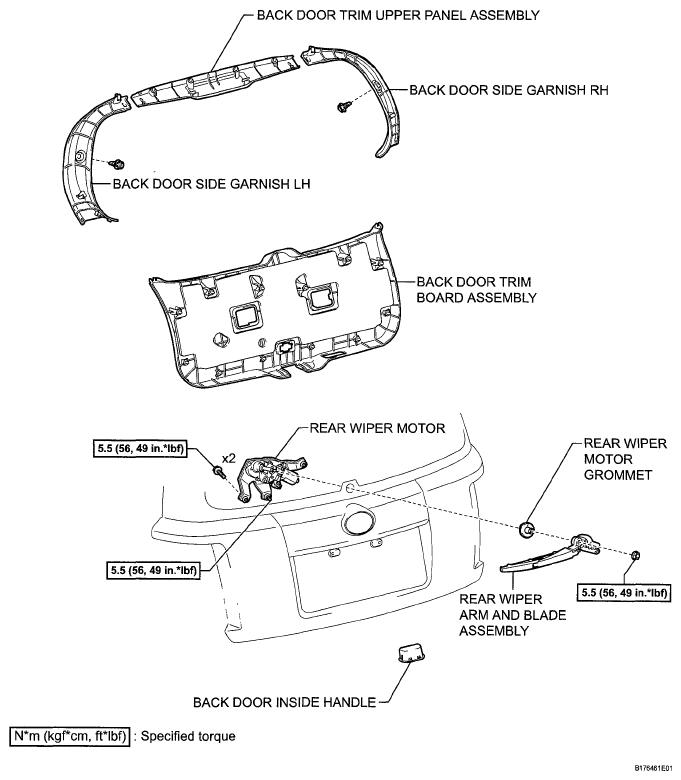

Fig 1: Back Door Glass Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

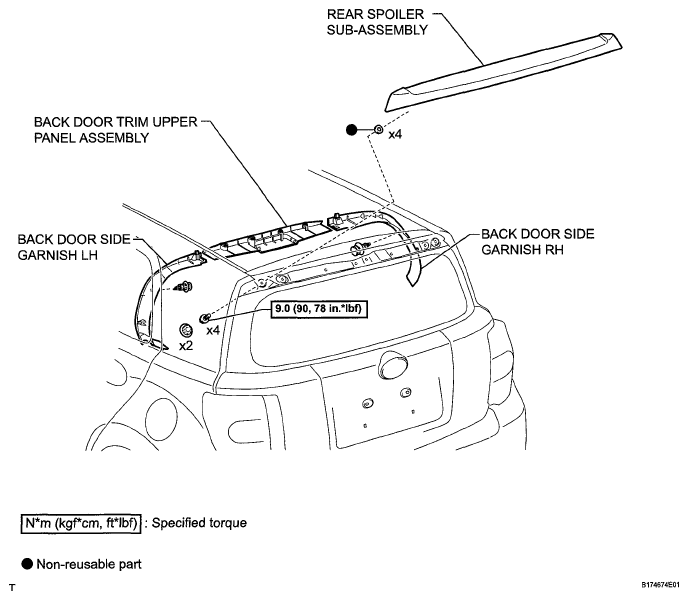

Fig 2: Back Door Glass Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

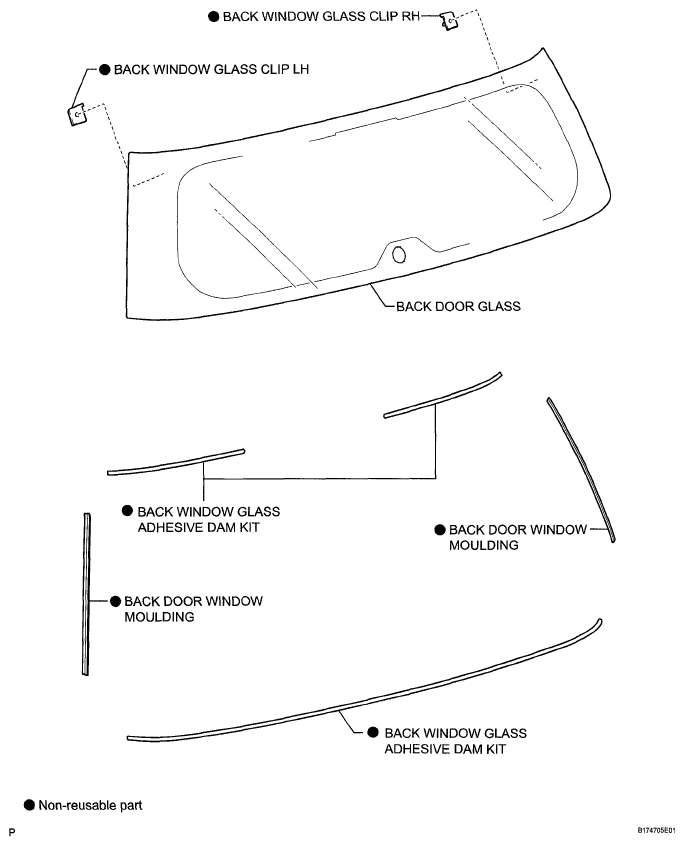

Fig 3: Identifying Back Door Glass Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
