Rear Axle Hub: Components

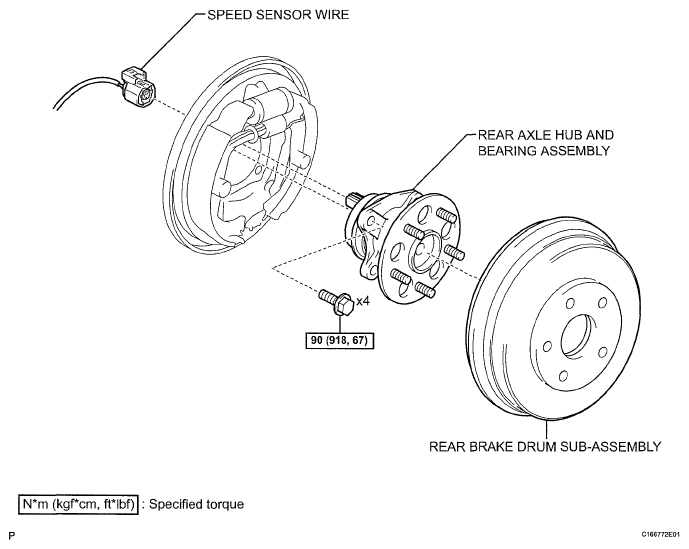

Fig 1: Rear Axle Hub Replacement Components With Torque Specifications
G05400851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
