Date Link Connector 3
›
Notes
Date Link Connector 3: Notes

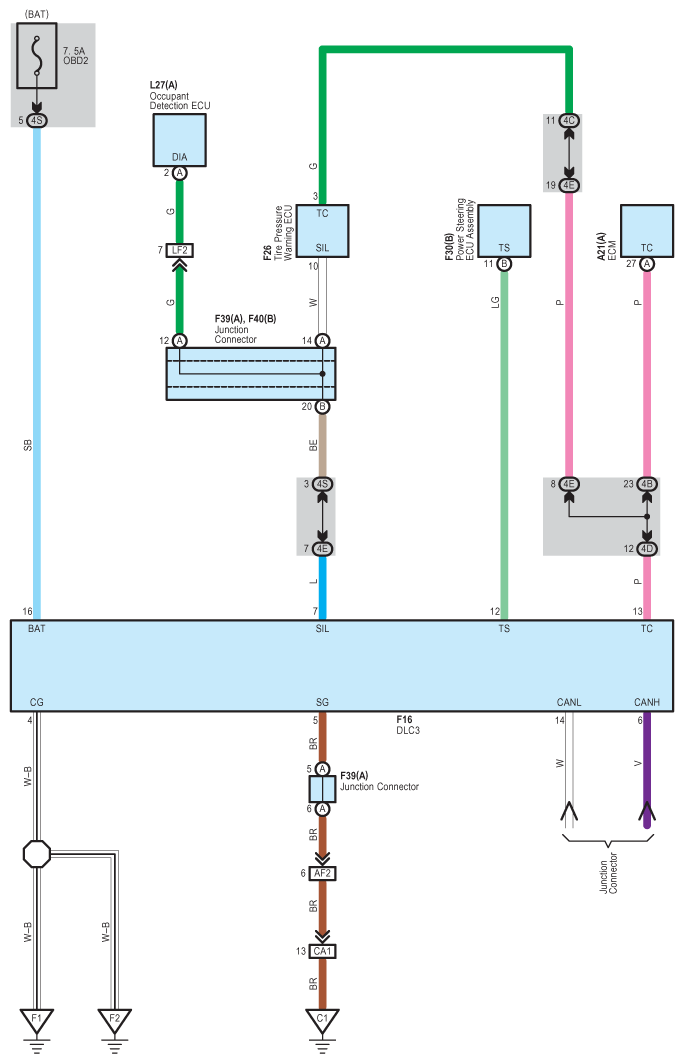

Fig 1: Date Link Connector 3 - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
