Upper Instrument Panel: Installation

  1. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY  (See INSTALLATION )
  2. INSTALL NO. 5 INSTRUMENT PANEL CUSHION
    1. Install a new instrument panel cushion as shown in the illustration.
      Fig 1: Identifying No 5 Instrument Panel Cushion
      G05403163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 3 INSTRUMENT PANEL CUSHION
    1. Install a new instrument panel cushion as shown in the illustration.
      Fig 2: Identifying No 3 Instrument Panel Cushion
      G05403162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 2 INSTRUMENT PANEL CUSHION
    1. Install a new instrument panel cushion as shown in the illustration.
      Fig 3: Identifying No 2 Instrument Panel Cushion
      G05403161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 INSTRUMENT PANEL CUSHION
    1. Install a new instrument panel cushion as shown in the illustration.
      Fig 4: Identifying No 1 Instrument Panel Cushion
      G05403160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL INSTRUMENT PANEL CUSHION
    1. Install a new instrument panel cushion as shown in the illustration.

      HINT:

      If there is excess on the edge of the instrument panel cushion, then wrap the excess cushion under the back of the instrument panel before installation.

      Fig 5: Identifying Instrument Panel Cushion
      G05403168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Engage the 3 claws and install the instrument panel register.

      HINT:

      Use the same procedure for both sides.

      Fig 6: Identifying Instrument Panel Register Claws
      G05403158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 1 HEATER TO REGISTER DUCT
    1. Install the heater to register duct with the 2 < A > screws.
      Fig 7: Locating No 1 Heater
      G05403157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL NO. 2 HEATER TO REGISTER DUCT
    1. Install the heater to register duct with the 2 < A > screws.
      Fig 8: Locating No 2 Heater
      G05403156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 2 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY
    1. Engage the 4 claws and 2 clips.
    2. Fig 9: Identifying Instrument Panel Box Door Claws And Clips
      G05403155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the instrument panel box door with the 2 < B > screws.
  11. INSTALL INSTRUMENT PANEL CUP HOLDER
    1. Install the cup holder with the 3 < A > screws.
    2. Fig 10: Locating Instrument Panel Cup Holder Screws
      G05403154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL UPPER INSTRUMENT PANEL
    1. Engage the 5 claws at the front of the instrument panel.
      NOTE: If the No. 4 instrument panel cushion is peeling off or torn, then replace it with a new part.

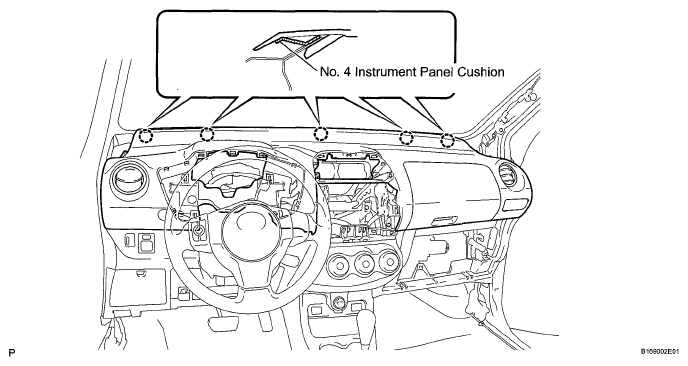

      Fig 11: Identifying Upper Instrument Panel Claws
      G05403174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 4 clips and 4 claws at the rear of the upper instrument panel.

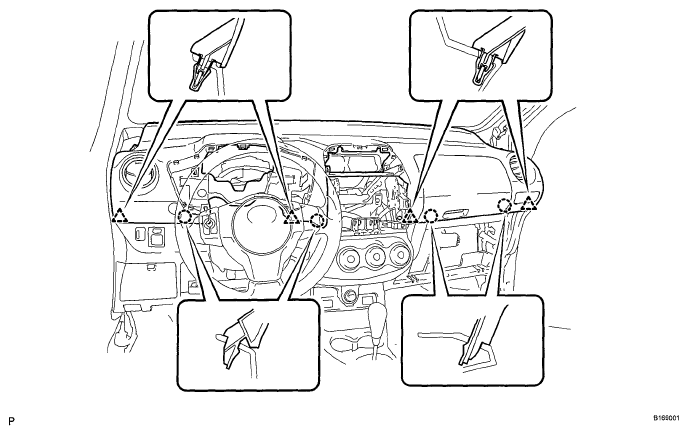

      Fig 12: Identifying Upper Instrument Panel Clips And Claws
      G05403152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the upper instrument panel with the 2 < B > screws and 2 < C > bolts.

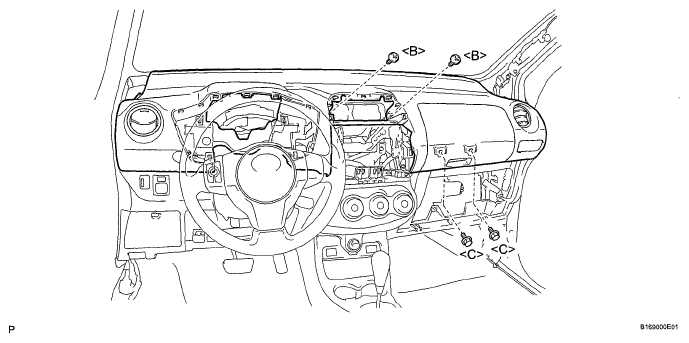

      Fig 13: Identifying Upper Instrument Panel Screws And Bolts
      G05403151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf) for bolt < C >

    4. Connect the airbag connector and clamp.
      Fig 14: Locating Airbag Connector
      G05403177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Engage the 2 hinges horizontally to install the glove compartment door.
      NOTE: Engage the 2 hinges horizontally. Otherwise, the hinge may be damaged, making re-installation impossible.

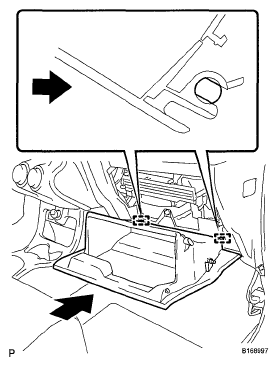

      Fig 15: Installing Glove Compartment Door Assembly
      G05403178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. While pushing in the sides of the glove compartment door as indicated by the arrows in the illustration, close the door to engage it to the 2 stoppers.
      Fig 16: Installing Glove Compartment Door Stoppers Onto Glove Compartment Door
      G05403148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the glove compartment door stoppers onto the glove compartment door.
  14. INSTALL INSTRUMENT CLUSTER FINISH PANEL RETAINER
    1. Engage the 6 claws and install the instrument cluster finish panel retainer.
      Fig 17: Identifying Instrument Cluster Finish Panel Retainer Claws
      G05403147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY
    1. Engage the 7 clips and 2 claws and install the instrument cluster finish center panel.
    2. Fig 18: Installing Instrument Cluster Finish Center Panel Clips And Claws
      G05403181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL COMBINATION METER ASSEMBLY  (See INSTALLATION )
  17. INSTALL INSTRUMENT CLUSTER FINISH PANEL  (See INSTALLATION )
  18. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
  19. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  20. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. Install the front door opening trim weatherstrip RH.
  21. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
    1. Install the front door opening trim weatherstrip LH.
  22. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  23. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )
