Oil Pump: Components

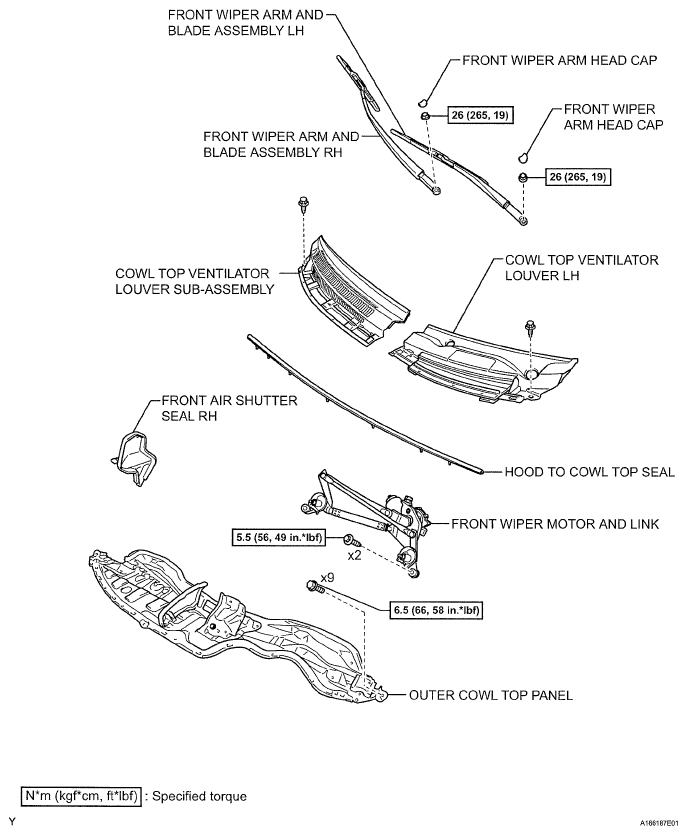

Fig 1: Outer Cowl Top Panel Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

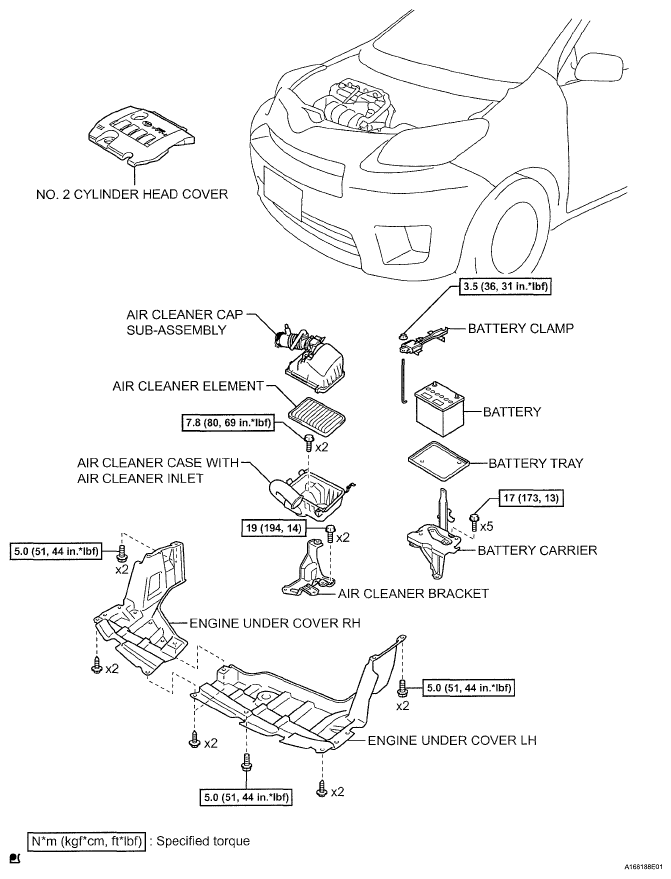

Fig 2: Engine Under Cover Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

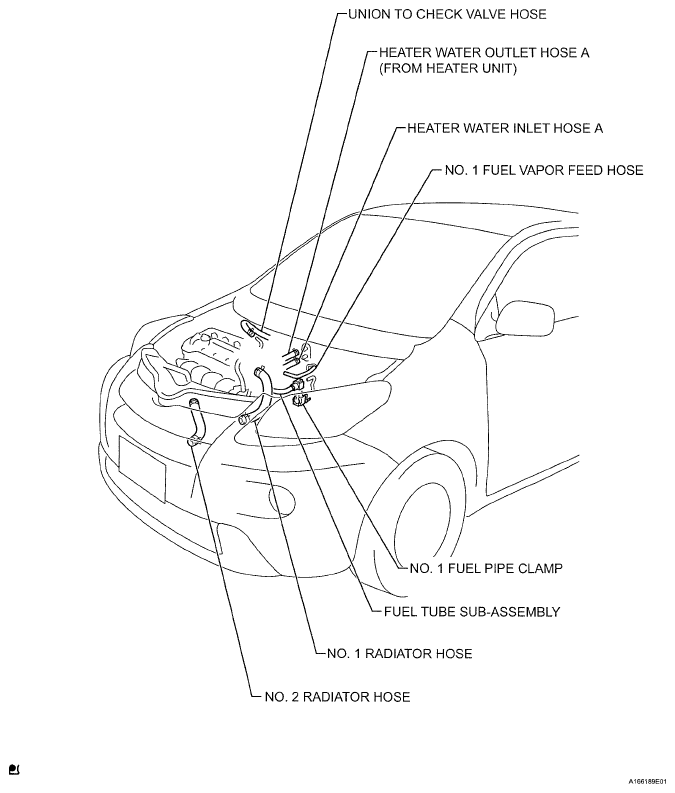

Fig 3: Identifying Fuel Tube Sub-Assembly Parts Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

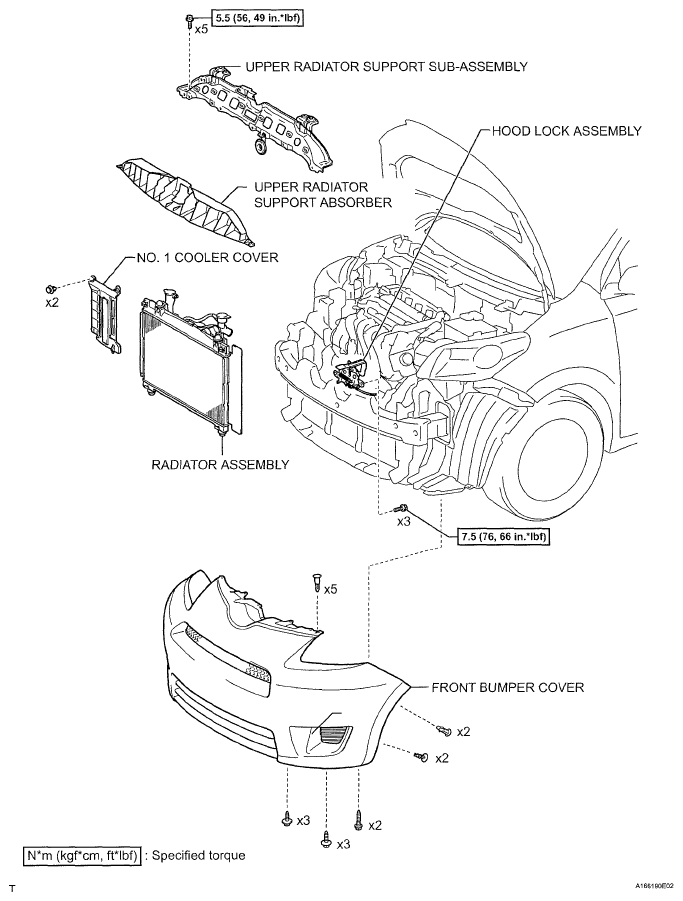

Fig 4: Front Bumper Cover And Radiator Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

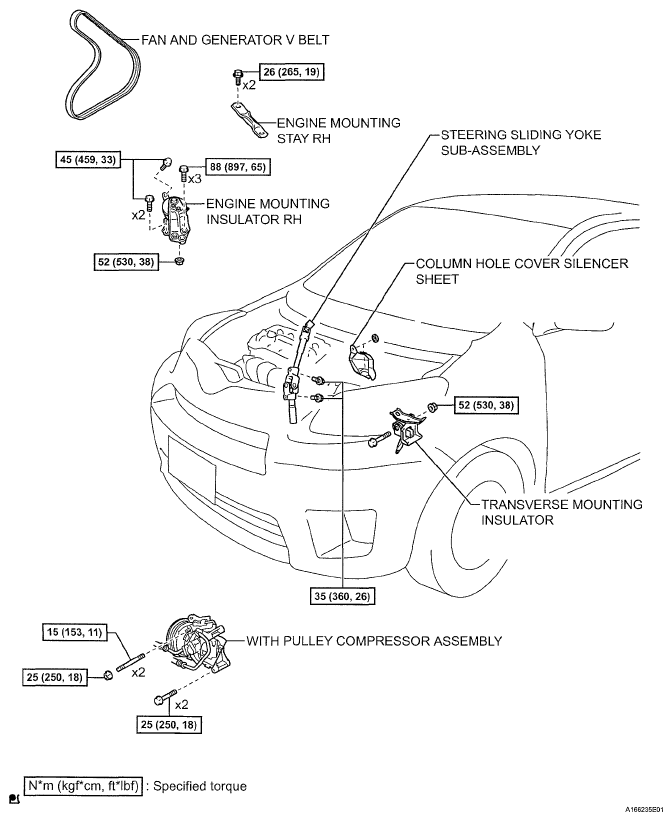

Fig 5: Compressor Assembly And Engine Mounting Insulator With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

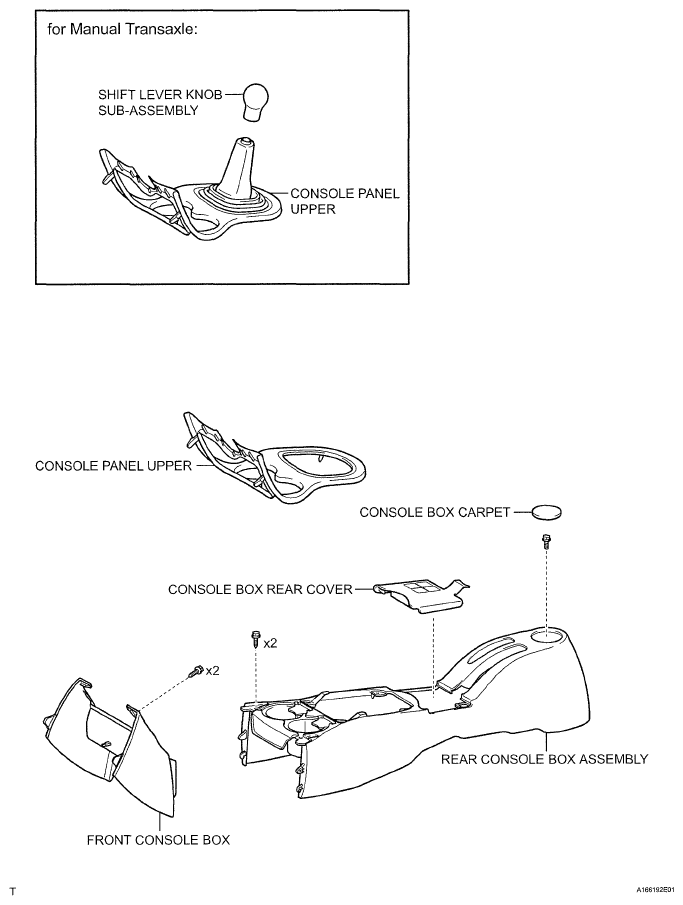

Fig 6: Identifying Rear Console Box Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

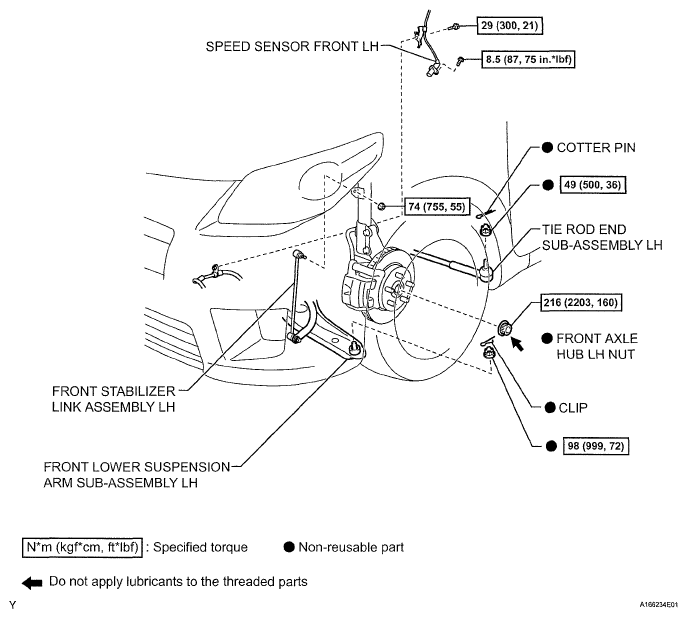

Fig 7: Front Stabilizer Link Assembly With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

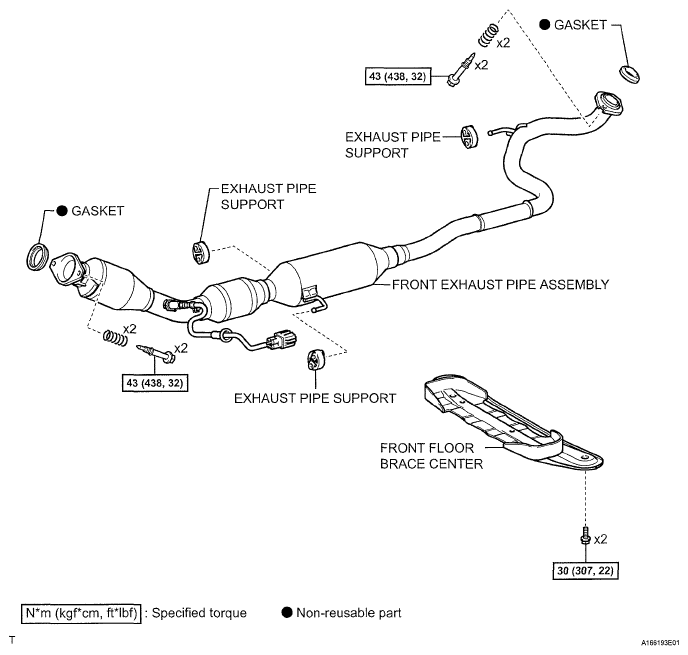

Fig 8: Muffler Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

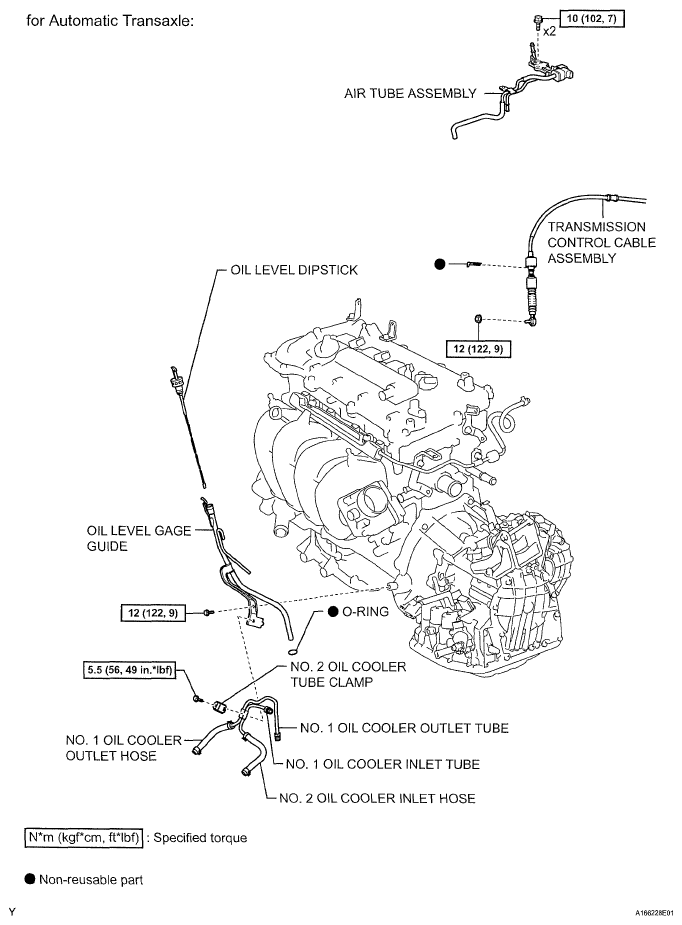

Fig 9: Replacement Components For Automatic Transaxle With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

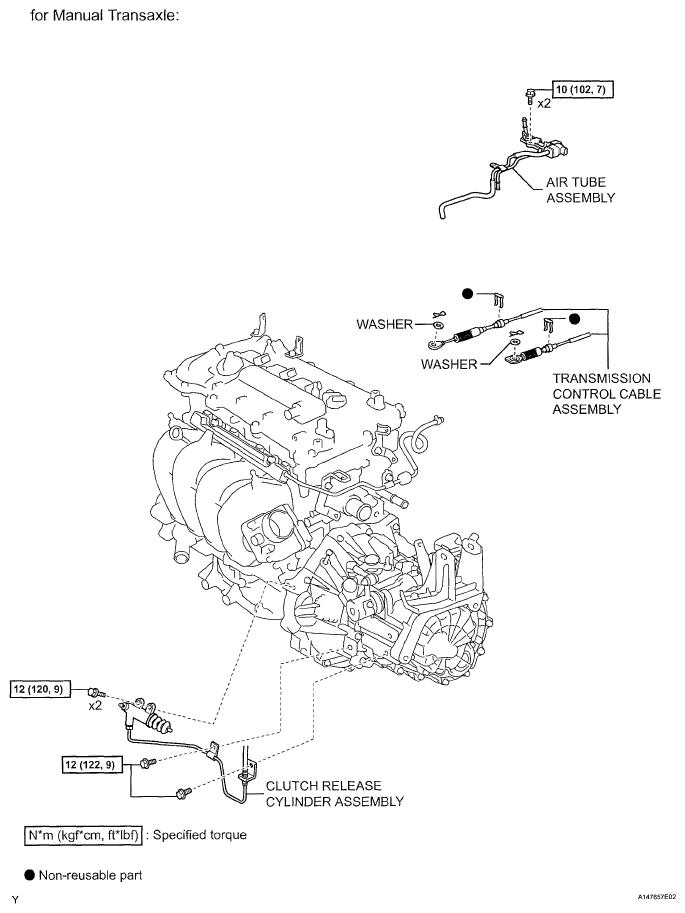

Fig 10: Replacement Components For Manual Transaxle With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

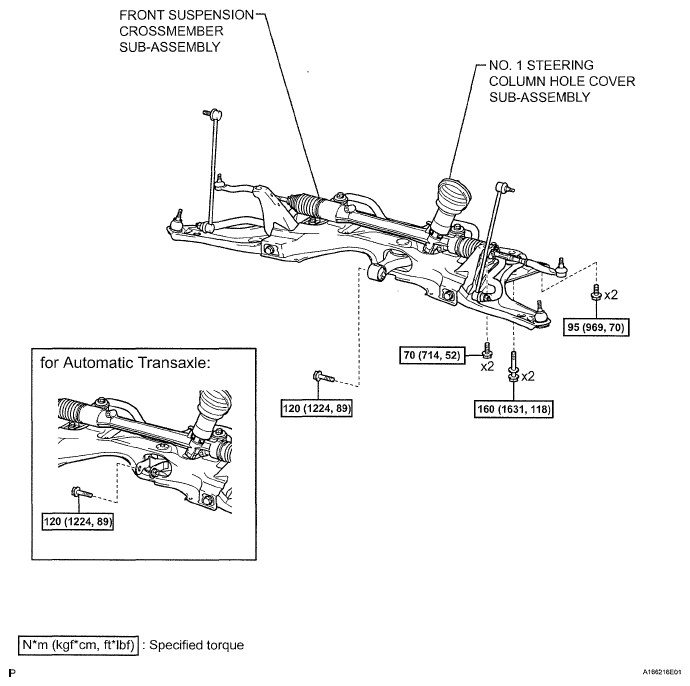

Fig 11: Front Suspension Crossmember Sub-Assembly With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

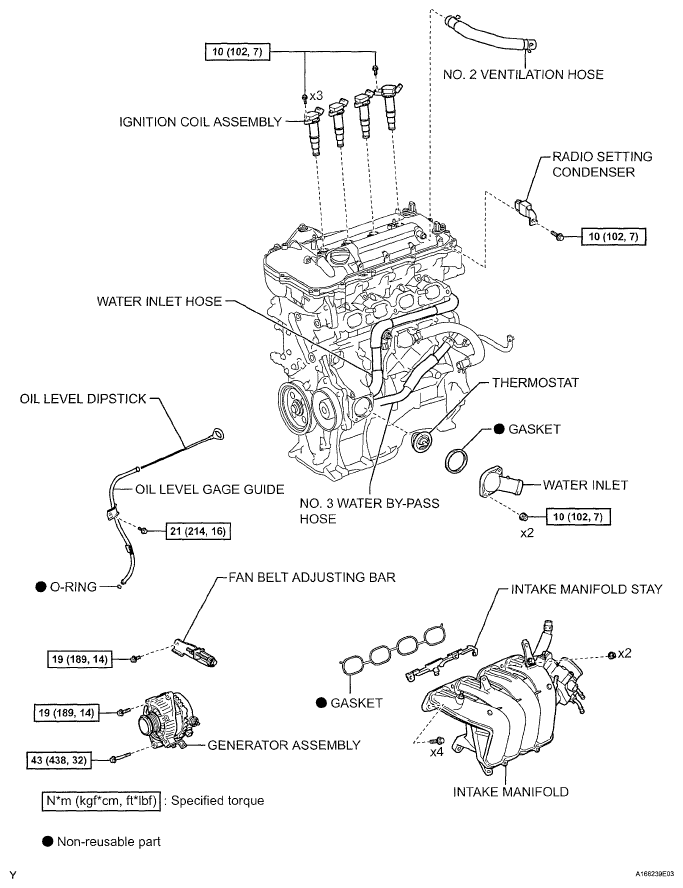

Fig 12: Generator Assembly, Intake Manifold And Ignition Coil Assembly With Torque Specifications

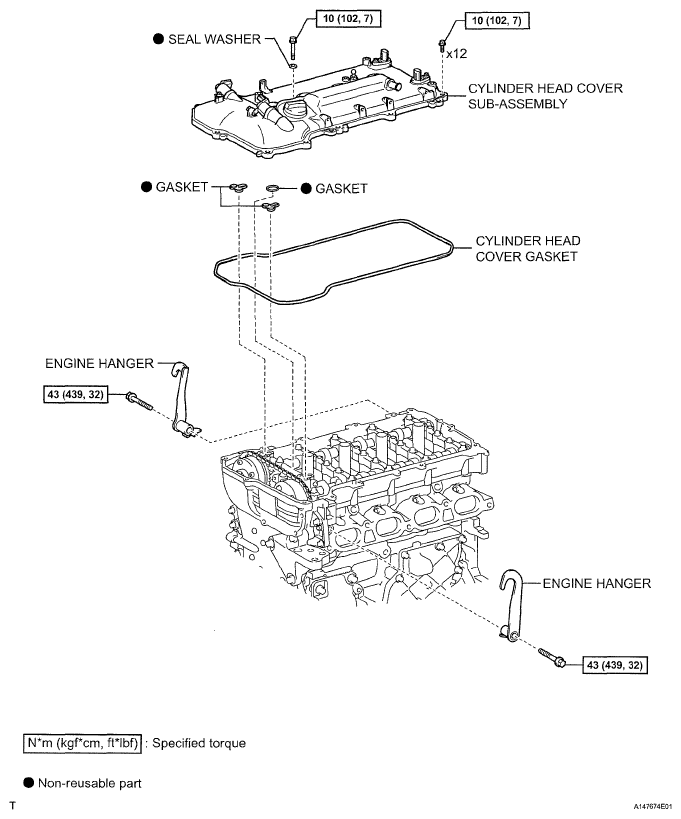

Fig 13: Cylinder Head Cover Sub-Assembly With Torque Specifications

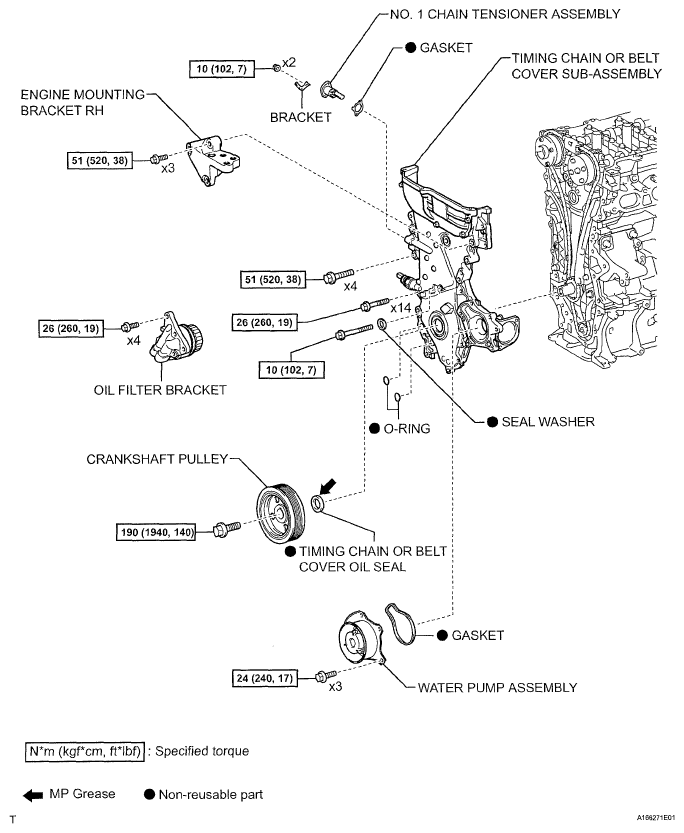

Fig 14: Timing Chain Cover Sub-Assembly, Water Pump Assembly With Torque Specifications

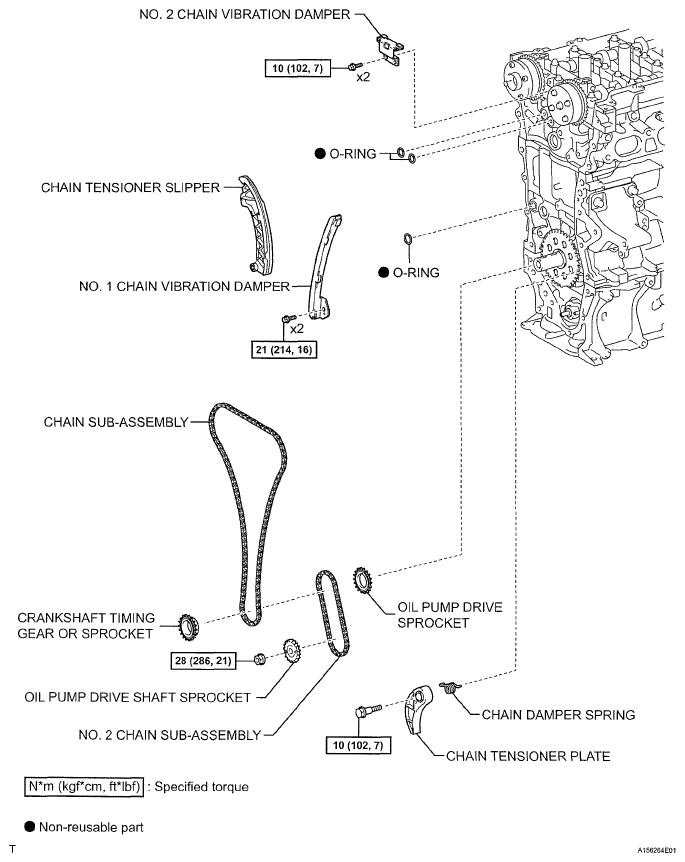

Fig 15: Chain Tensioner Slipper, Chain Sub-Assembly And Chain Tensioner Plate With Torque Specifications

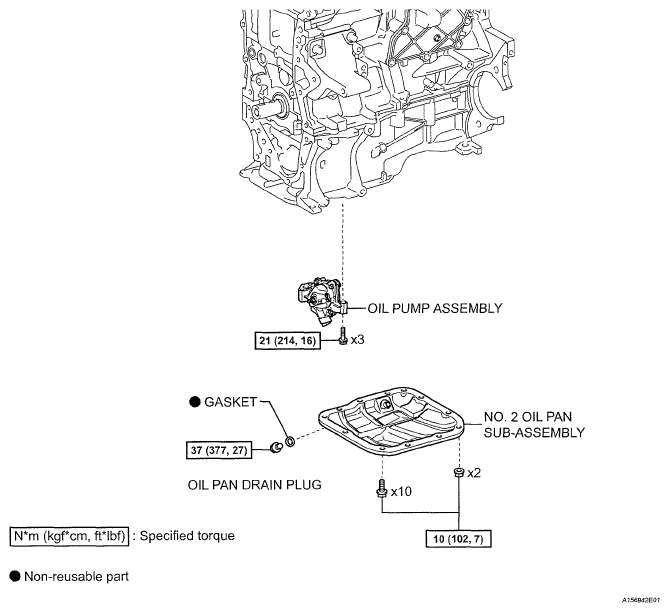

Fig 16: Oil Pump Assembly And Oil Pump Drain Plug With Torque Specifications

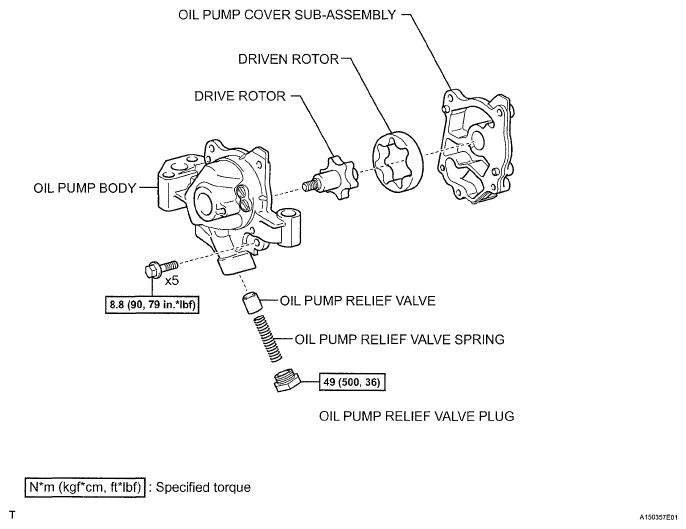

Fig 17: Oil Pump Cover Sub-Assembly, Driven Motor And Oil Pump Relay Valve With Torque Specifications
