Inspection Procedure

1. Disconnect the C19 ECM connector.

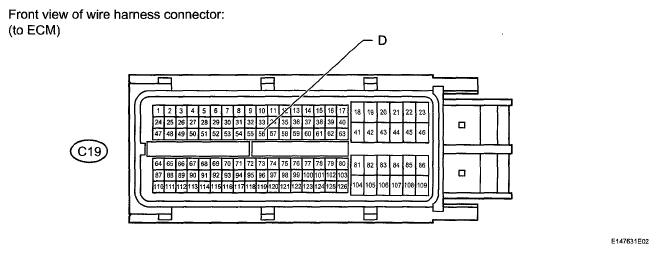

   Fig 1: Identifying C19 ECM Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the ignition switch to ON.
3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   STANDARD VOLTAGE SPECIFICATIONS



   Tester Connection	Condition	Specified Condition
   C19-56 (D) - Body ground	Clutch pedal depressed	Below 1 V
   	Clutch pedal released	11 to 14 V

NG: Go to step 2

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE  )

1. Turn the ignition switch to OFF.
2. Disconnect the A16 clutch switch connector.
3. Remove the clutch switch, (see REMOVAL  )
4. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   STANDARD RESISTANCE SPECIFICATIONS



   Tester Connection	Switch Condition	Specified Condition
   1 - 2	Switch pin free (Clutch pedal depressed)	10 kΩ or higher
   	Switch pin pushed in (Clutch pedal released)	Below 1 Ω

5. Install the clutch switch.
6. Reconnect the clutch switch connector.

NG: REPLACE CLUTCH SWITCH  (See REMOVAL  )

Fig 2: Inspecting Clutch Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to next step

1. Disconnect the C19 ECM connector.
2. Disconnect the A16 clutch switch connector.
3. Measure the resistance according to the value(s) in the table below.

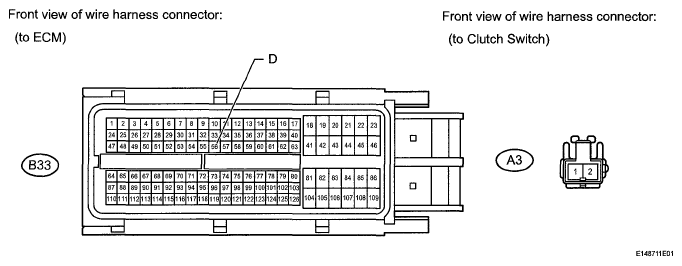

   Fig 3: Identifying C19 ECM And A16 Clutch Switch Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   STANDARD RESISTANCE SPECIFICATIONS



   Tester Connection	Condition	Specified Condition
   C19-56 (D) - A16-2	Always	Below 1 Ω
   C19-56 (D) - Body ground	Always	10 kΩ or higher

4. Reconnect the ECM connector.
5. Reconnect the clutch switch connector.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : REPAIR OR REPLACE HARNESS OR CONNECTOR (BATTERY - CLUTCH SWITCH)
