System Diagram

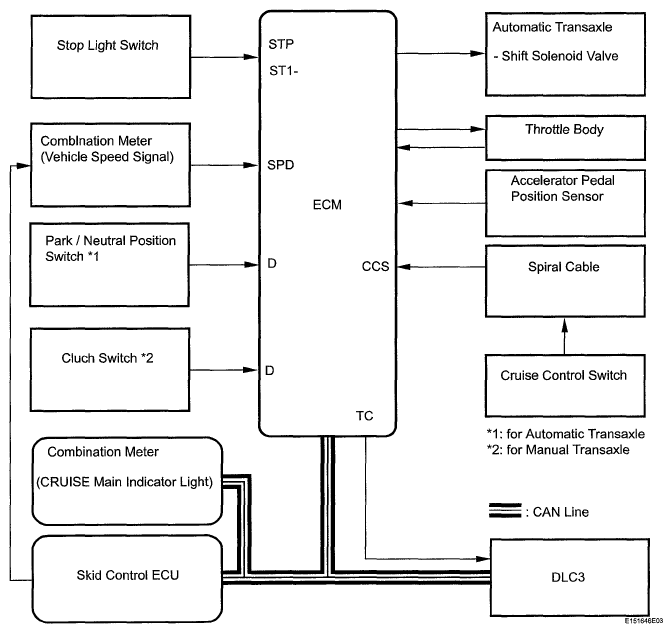

Fig 1: Cruise Control System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table:

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
ECM	Skid control ECU with actuator	VSC operation signal	CAN
ECM	Combination Meter ECU	CRUISE main indicator operation signal	CAN
