Parking Brake Lever: Components

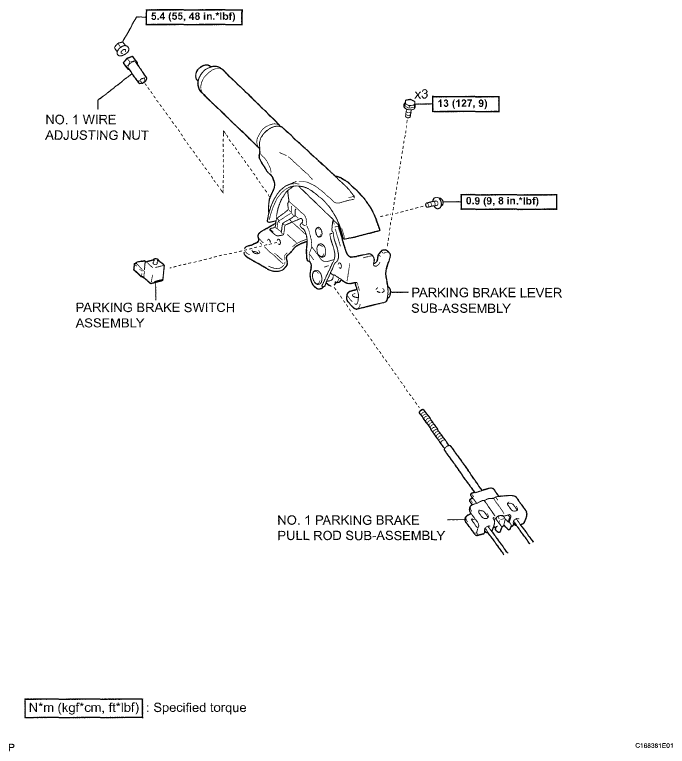

Fig 1: Identifying Parking Brake Lever Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Parking Brake Lever Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
