Transaxle Rear Cover: Components

WARNING: This page is about a different variant/trim than selected.

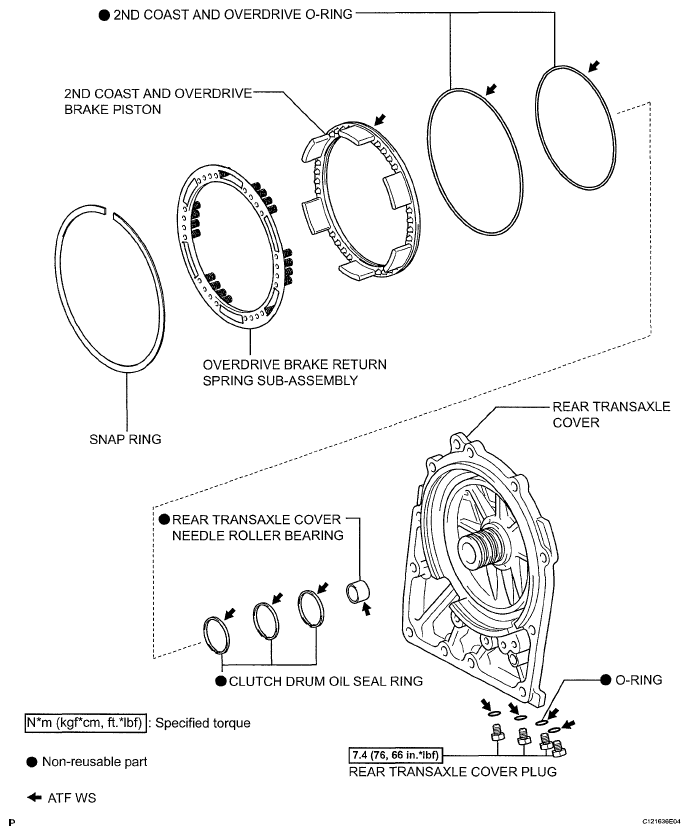

Fig 1: Transaxle Rear Cover Replacement Components With Torque Specifications
G05400358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
