Power Steering System
›
System Diagram
System Diagram

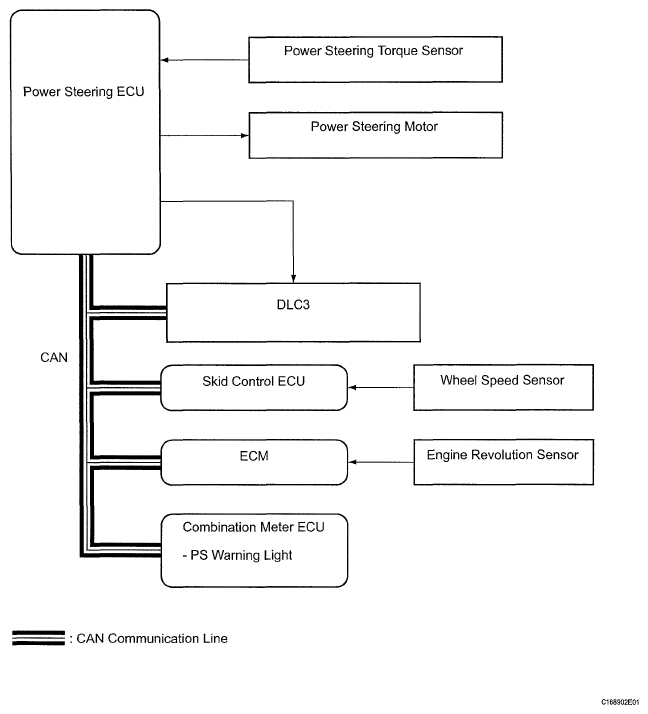

Fig 1: Power Steering System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
