Differential Case: Components

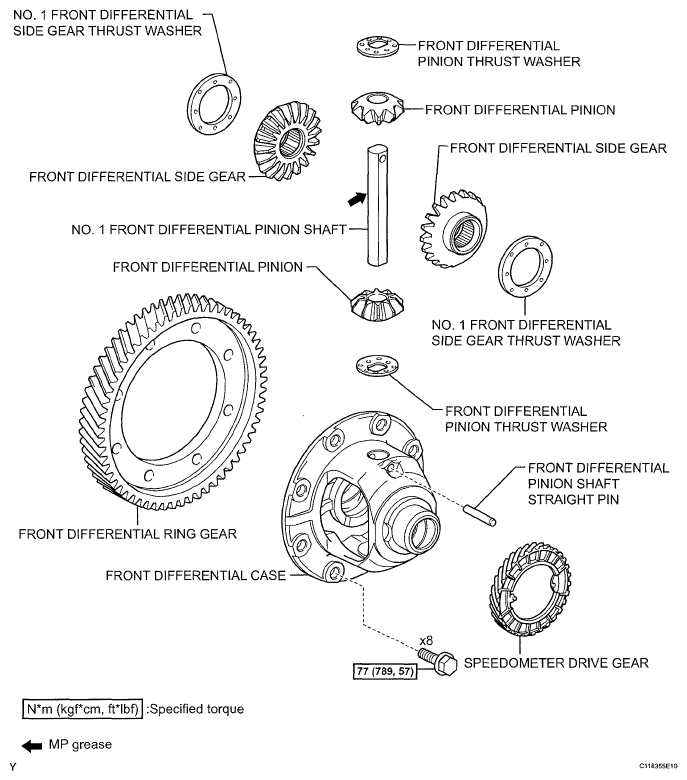

Fig 1: Differential Case Replacement Components With Torque Specifications
G05400755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
