Output Shaft: Components

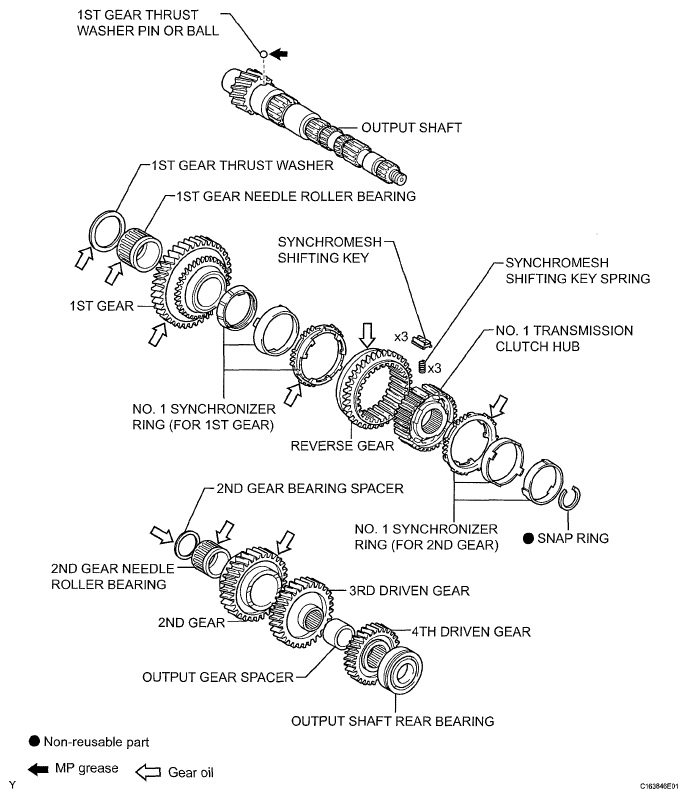

Fig 1: Identifying Output Shaft Components
G05400697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
