Light Reminder: Notes

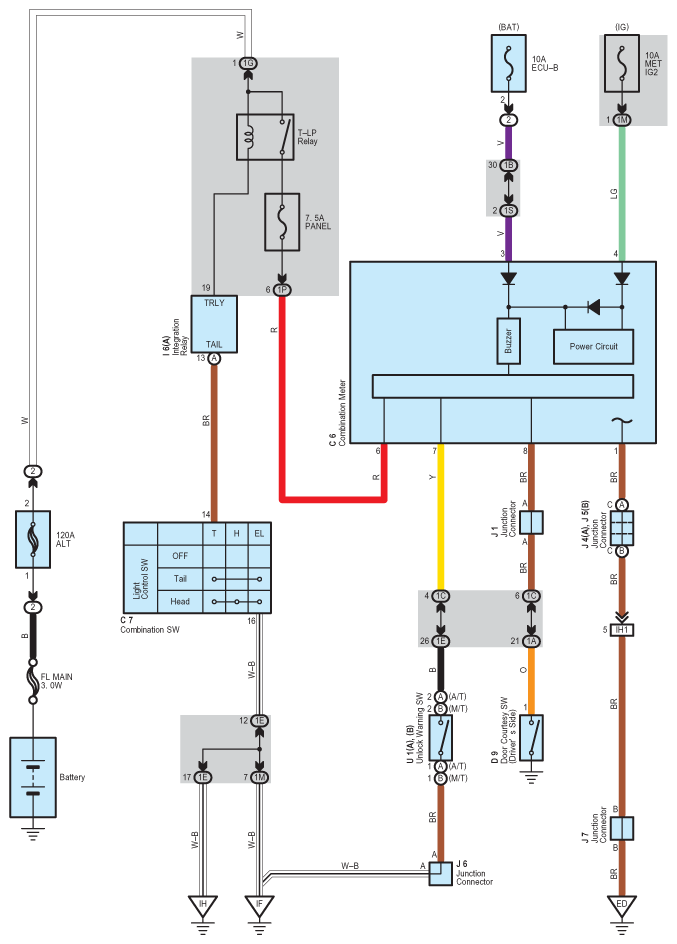

Fig 1: Light Reminder - Circuit Diagram
G07585958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
