Scion
›
2010
›
tC Automatic
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Power Source
›
Notes
Power Source: Notes

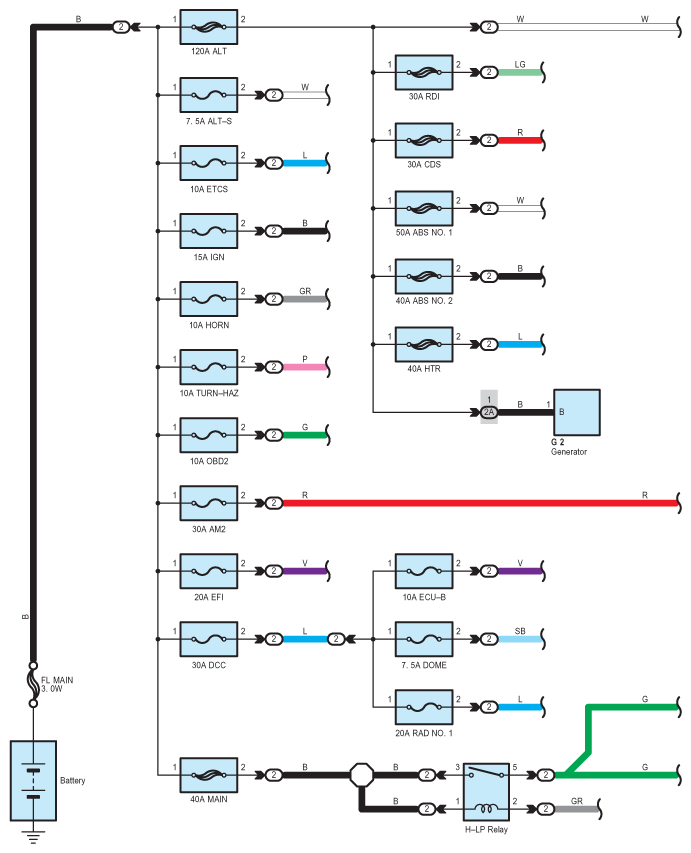

Fig 1: Power Source - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

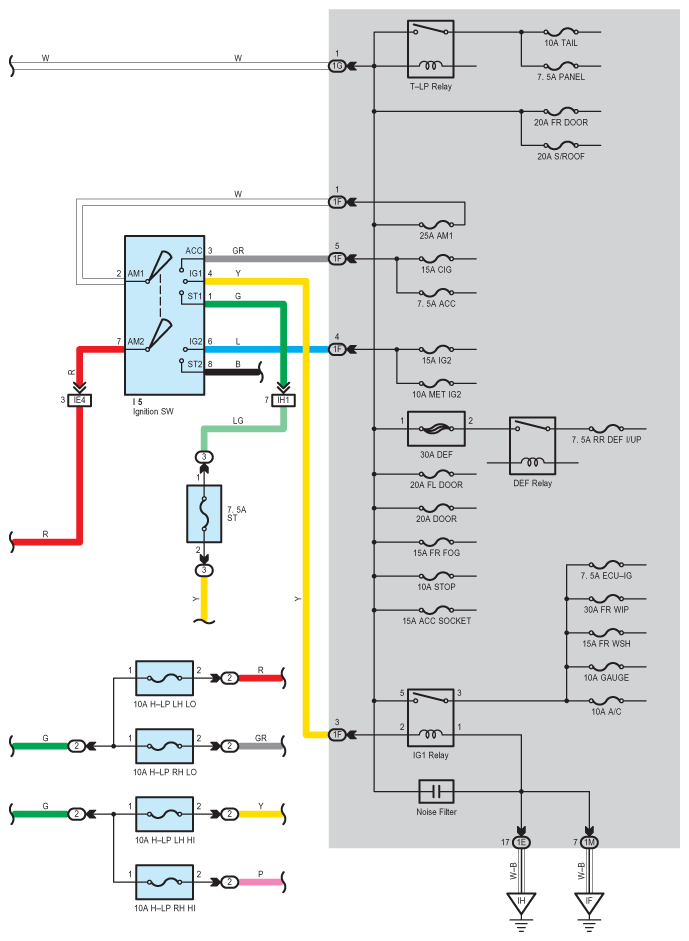

Fig 2: Power Source - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
