tC Standard
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Ground Points
›
Ground Point
›
Notes
Ground Point: Notes

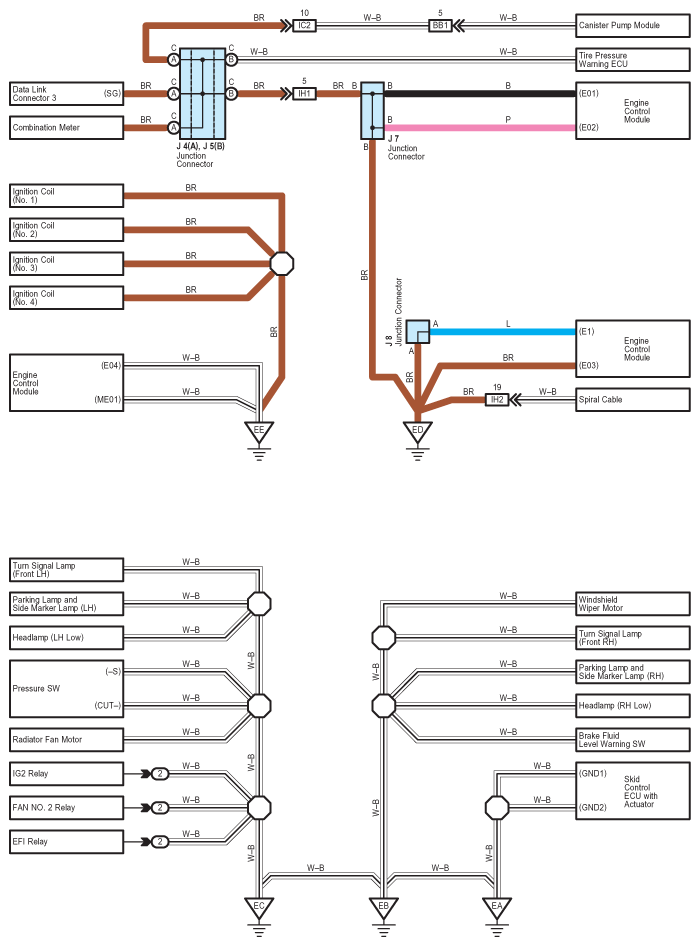

Fig 1: Ground Point - Circuit Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

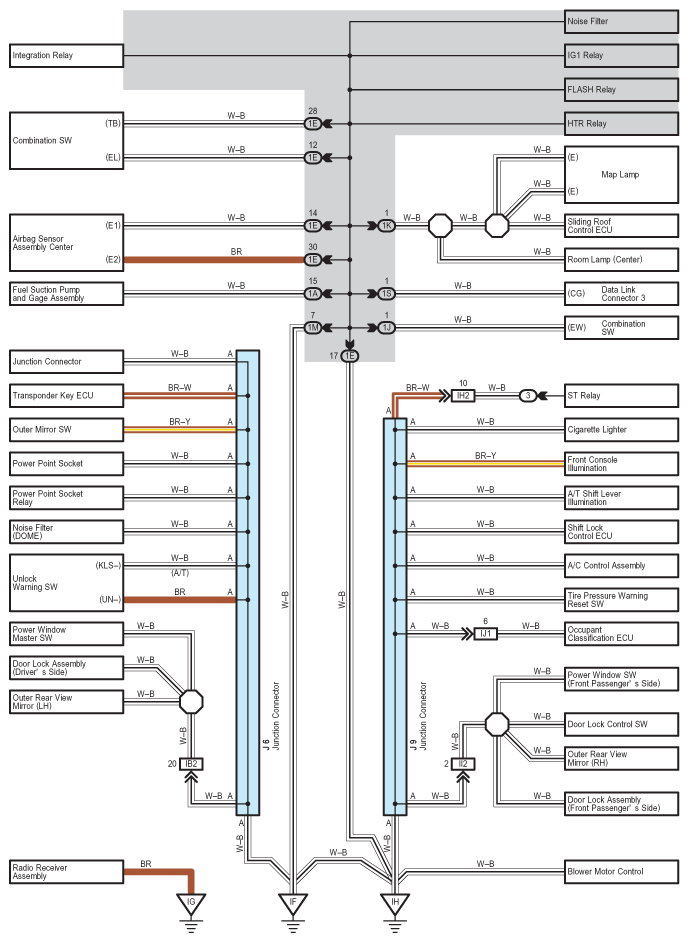

Fig 2: Ground Point - Circuit Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

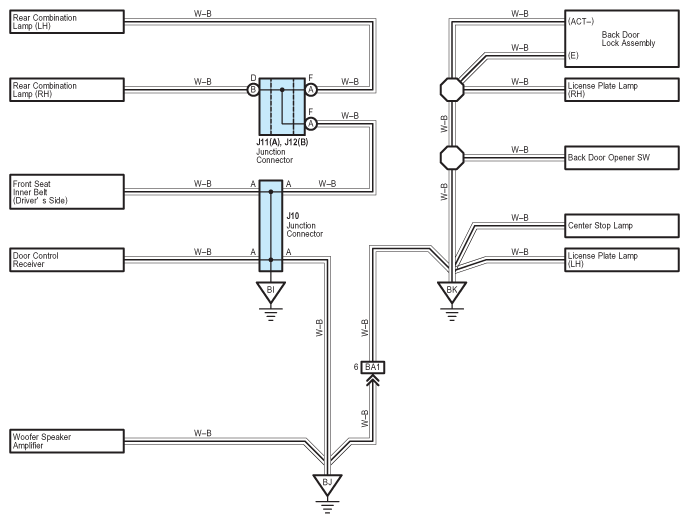

Fig 3: Ground Point - Circuit Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
