EVAP System: Procedure

  1. CONFIRM DTC
    1. Turn the ignition switch off and wait for 10 seconds.
    2. Turn the ignition switch to the ON position.
    3. Turn the ignition switch off and wait for 10 seconds.
    4. Connect the Techstream to the DLC3.
    5. Turn the ignition switch to the ON position and turn the Techstream on.
    6. Select the following menu items: Powertrain / Engine and ECT / Trouble Codes.
    7. Confirm DTCs and freeze frame data.

      If any EVAP system DTCs are set, the malfunctioning area can be determined using the figure below.

      NOTE:

      If the reference pressure difference between the first and second checks is greater than the specification, all the DTCs relating to the reference pressure (P043E, P043F, P2401, P2402 and P2419) are stored.

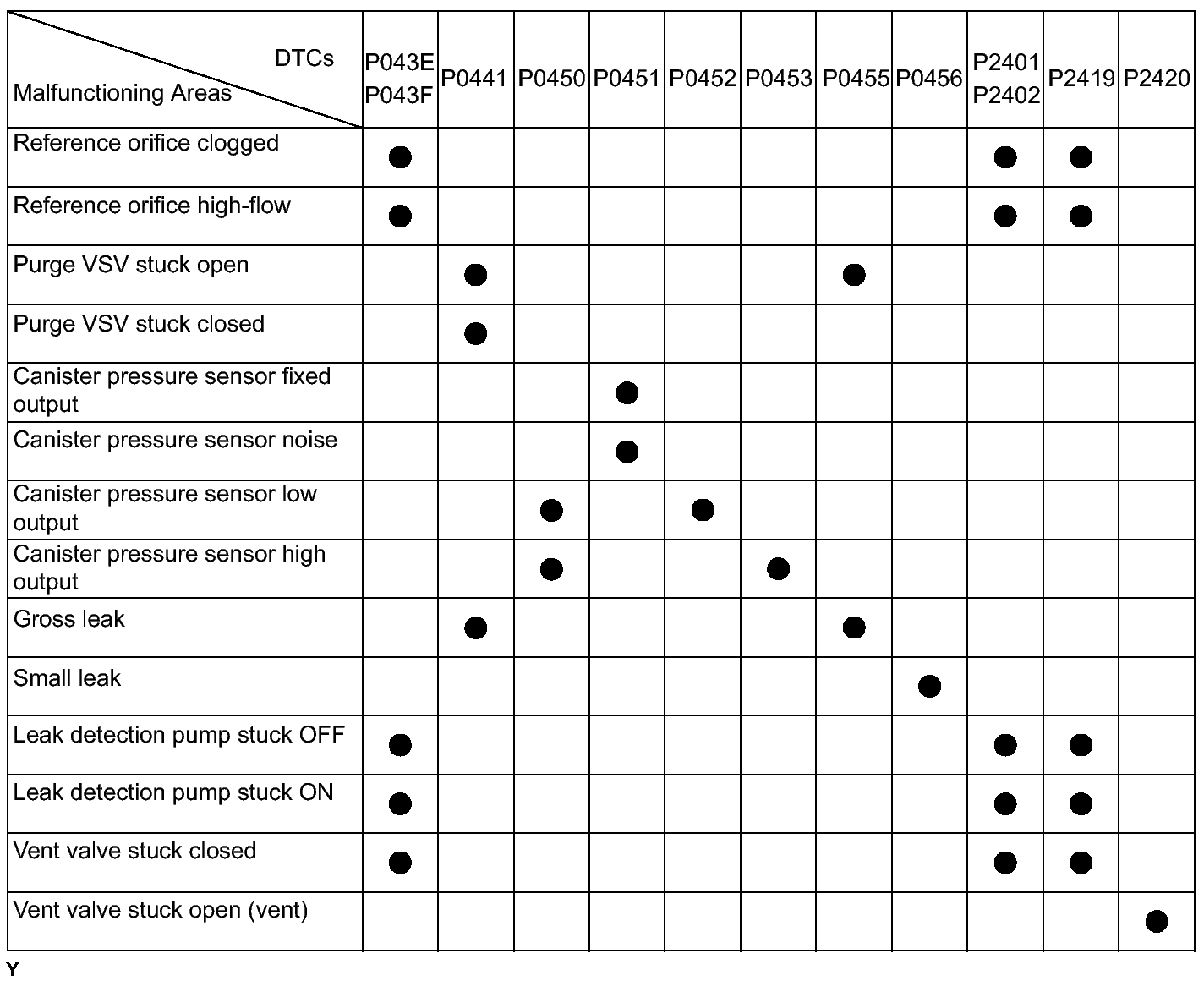

      Fig 1: DTC Malfunctioning Area Chart
      GTY162441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NEXT: Go to next step

  2. PERFORM EVAPORATIVE SYSTEM CHECK (AUTOMATIC MODE)
    NOTE:
    • The Evaporative System Check (Automatic Mode) consists of 5 steps performed automatically by the Techstream. It takes a maximum of approximately 18 minutes.
    • Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed, making the fuel tank leak check unavailable.
    • Do not run the engine during this operation.
    • When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the temperature below 35°C (95°F).
    1. Clear the DTCs. Refer to DTC CHECK / CLEAR .
    2. On the tester, select the following menu items: Powertrain / Engine and ECT / Utility / Evaporative System Check / Automatic Mode.
    3. After the Evaporative System Check is completed, check for pending DTCs by selecting the following menu items: Powertrain / Engine and ECT / Trouble Codes / Pending.

      HINT:

      If no pending DTCs are displayed, perform the MONITOR CONFIRMATION (see "Diagnostic Help" menu). After this confirmation, check for pending DTCs. If no DTCs are displayed, the EVAP system is normal.

    NEXT: Go to next step

  3. PERFORM EVAPORATIVE SYSTEM CHECK (MANUAL MODE)

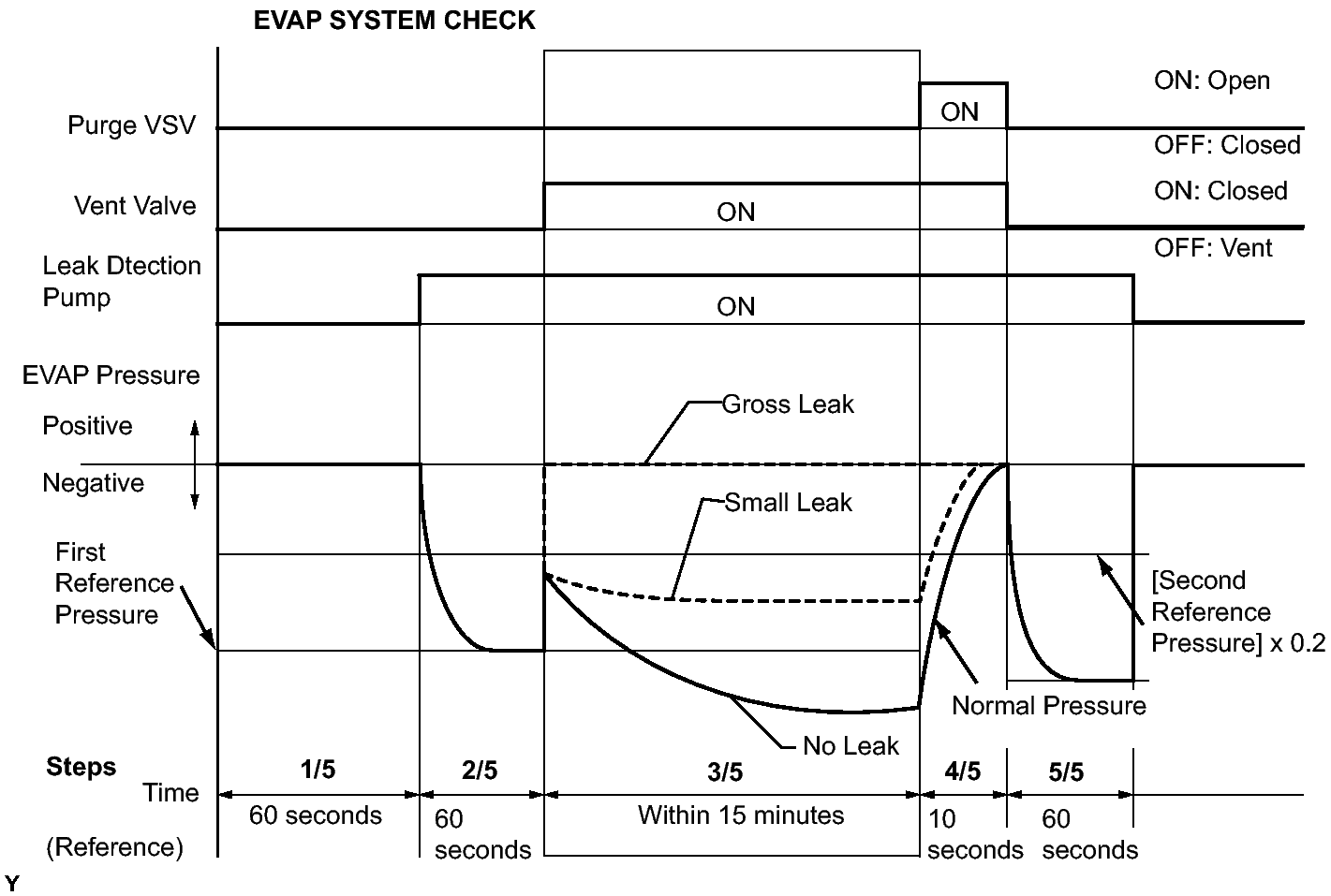

    Fig 2: EVAP System Check Graph
    GTY164937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • In the Evaporative System Check (Manual Mode), perform the series of 5 Evaporative System Check steps manually using the Techstream.
    • Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed, making the fuel tank leak check unavailable.
    • Do not run the engine during this operation.
    • When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing the Evaporative System Check, keep the temperature below 35°C (95°F).
    1. Clear the DTCs. Refer to DTC CHECK / CLEAR .
    2. Select the following menu items: Powertrain / Engine and ECT / Utility / Evaporative System Check / Manual Mode.

    NEXT: Go to next step

  4. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 1/5)
    1. Check the EVAP pressure in step 1/5.

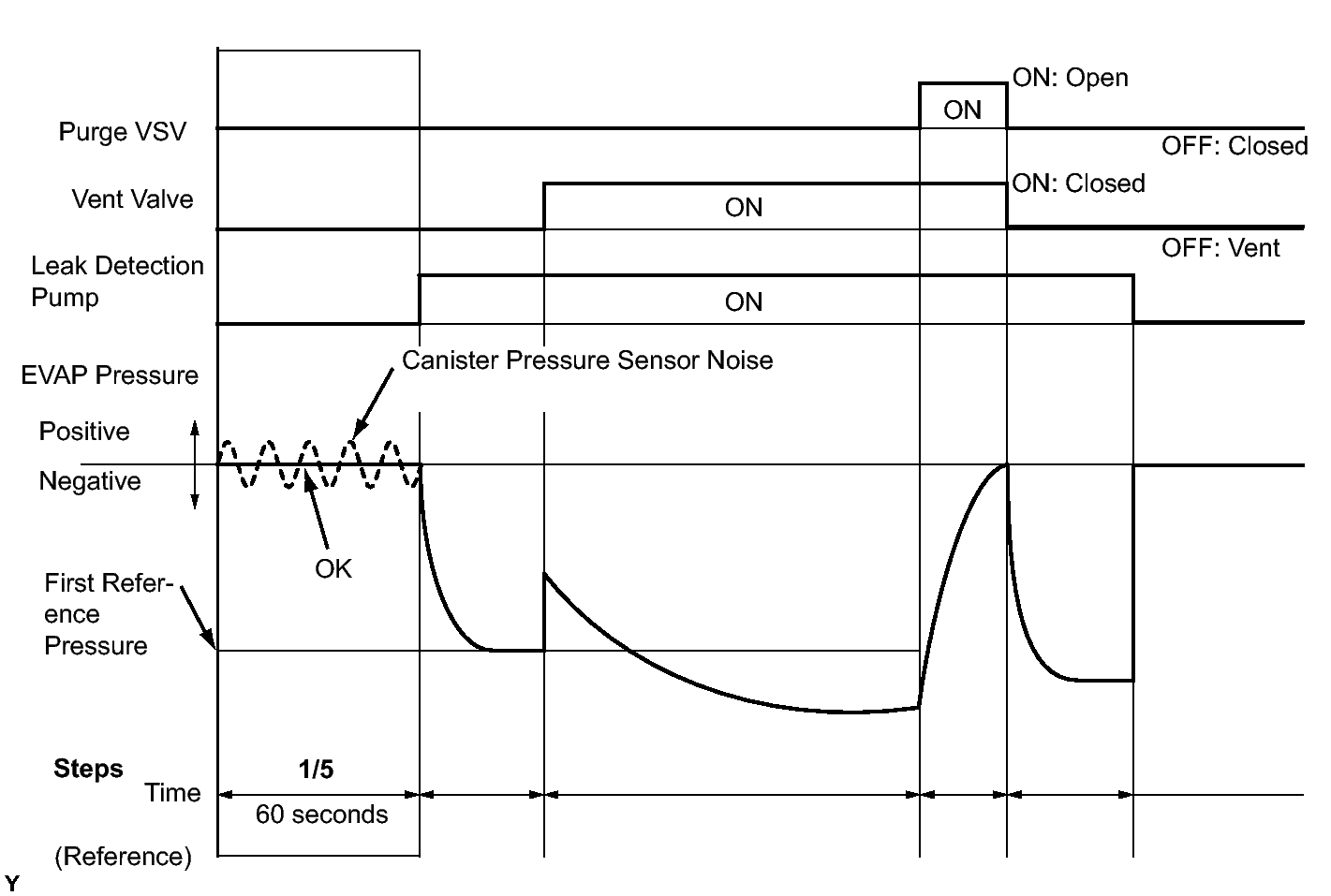

      Fig 3: Evaporative System Check Graph
      GTY166979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      DTCs* Test Result Suspected Trouble Area Proceed to
      - Virtually no variation in EVAP pressure Not yet determined A
      P0451 EVAP pressure fluctuates by +-0.3 kPa-g (2.25 mmHg-g) or more Canister pressure sensor noise B

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

    B → See step   29

    A: Go to next step

  5. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 1/5 TO 2/5)
    1. Check the EVAP pressure in steps 1/5 and 2/5.

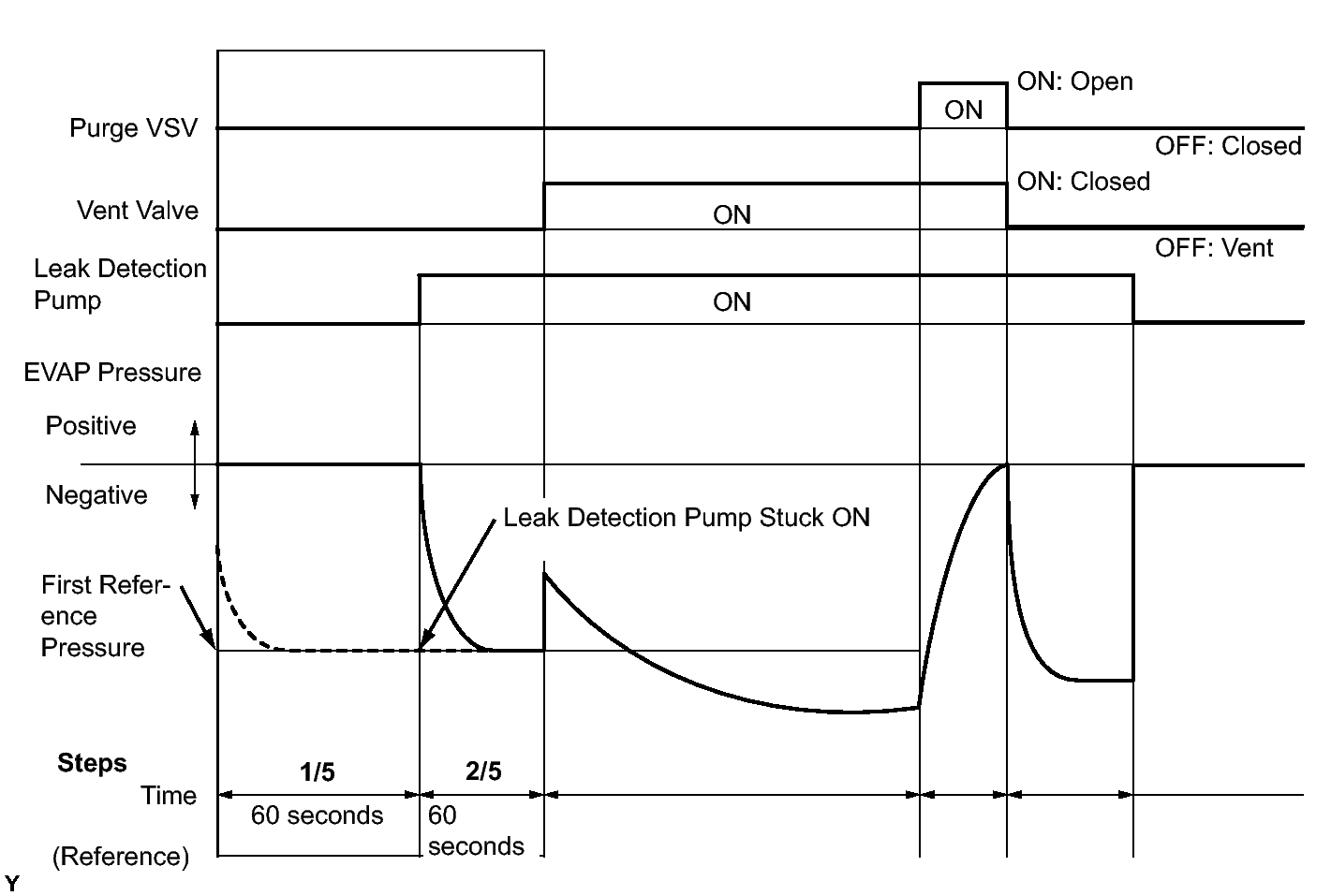

      Fig 4: Evaporative System Check Graph
      GTY165767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      DTCs* Test Result Suspected Trouble Area Proceed to
      - Virtually no variation in EVAP pressure during step 1/5. Then EVAP pressure decreases to reference pressure. Not yet determined A
      P2402 Small difference between EVAP pressures during steps 1/5 and 2/5 Leak detection pump stuck ON B

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

      HINT:

      The first reference pressure is the value determined in step 2/5.

    B → See step   22

    A: Go to next step

  6. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 2/5)

    HINT:

    Make a note of the pressures checked in steps "A" and "B" below.

    Fig 5: Checking EVAP System (Step 2/5)
    GTY135091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • (a) Check the EVAP pressure 4 seconds after the leak detection pump is activated* (Step "A").

      *: The leak detection pump begins to operate as step 1/5 finishes and step 2/5 starts.

    • (b) Check the EVAP pressure again when it has stabilized. This pressure is the reference pressure (Step "B").

      Result

      DTCs* Test Result Suspected Trouble Area Proceed to
      - EVAP pressure in step (b) between -4.85 kPa-g and -1.057 kPa-g (-36.4 mmHg-g and -7.93 mmHg-g) Not yet determined A
      P043F and P2401 EVAP pressure in step (b) -1.057 kPa-g (-7.93 mmHg-g) or more
      • Reference orifice high-flow
      • Leak detection pump stuck OFF
      		 B
      P043E EVAP pressure in step (b) below -4.85 kPa-g (-36.4 mmHg-g) Reference orifice clogged C
      P2419 EVAP pressure in step (a) more than -1.057 kPa-g (-7.93 mmHg-g) Vent valve stuck closed D

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

    D → See step   20

    C → See step   29

    B → See step   11

    A: Go to next step

  7. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 2/5 TO 3/5)
    1. Check the EVAP pressure increase in step 3/5.
      Fig 6: EVAP Pressure Graph (Step 2/5 To 3/5)
      GTY145424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      DTCs* Test Result Suspected Trouble Area Proceed to
      - EVAP pressure increases by 0.3 kPa-g (2.25 mmHg-g) or more within 10 seconds of proceeding from step 2/5 to step 3/5 Not yet determined A
      P2420 No variation in EVAP pressure despite proceeding from step 2/5 to step 3/5 Vent valve stuck open (vent) B
      P0451 No variation in EVAP pressure during steps 1/5 through 3/5 Canister pressure sensor malfunction fixed C

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

    C → See step   29

    B → See step   19

    A: Go to next step

  8. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 3/5)
    1. Wait until the EVAP pressure change is less than 0.1 kPa-g (0.75 mmHg-g) for 30 seconds.
      Fig 7: EVAP Pressure Graph (Step 3/5)
      GTY132074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the EVAP pressure and record it.

      HINT:

      A few minutes are required for the EVAP pressure to become saturated. When there is only a small amount of fuel in the fuel tank, it takes up to 15 minutes.

    NEXT: Go to next step

  9. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 4/5)
    1. Check the EVAP pressure in step 4/5.
      Fig 8: EVAP Pressure Graph (Step 4/5)
      GTY104665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      DTCs* Test Result Suspected Trouble Area Proceed to
      - EVAP pressure increases by 0.3 kPa-g (2.25 mmHg-g) or more within 10 seconds of proceeding from step 3/5 to step 4/5 Not yet determined A
      P0441 EVAP pressure increases by 0.3 kPa-g (2.25 mmHg-g) or more within 10 seconds of proceeding from step 3/5 to step 4/5 Problems in EVAP hose between purge VSV and intake manifold B
      P0441 Variation in EVAP pressure less than 0.3 kPa-g (2.25 mmHg-g) for 10 seconds, after proceeding from step 3/5 to step 4/5 Purge VSV stuck closed C

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

    C → See step   12

    B → See step   15

    A: Go to next step

  10. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 5/5)
    1. Check the EVAP pressure in step 5/5.
      Fig 9: EVAP Pressure Graph (Step 5/5)
      GTY145414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Compare the EVAP pressure in step 3/5 and the second reference pressure (step 5/5).

      Result

      DTCs* Test Result Suspected Trouble Area Proceed to
      - EVAP pressure (step 3/5) lower than second reference pressure (step 5/5) Not yet determined (no leakage from EVAP system) A
      P0441 and P0455 EVAP pressure (step 3/5) higher than [second reference pressure (step 5/5) x 0.2]
      • Purge VSV stuck open
      • EVAP gross leak
      		 B
      P0456 EVAP pressure (step 3/5) higher than second reference pressure (step 5/5) EVAP small leak B

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

    B → See step   12

    A → See step   35

  11. PERFORM EVAPORATIVE SYSTEM CHECK (STEP 3/5)
    1. Check the EVAP pressure in step 3/5.
      Fig 10: EVAP System Check Chart - Step 3/5
      GTY161589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      DTCs* Test Result Suspected Trouble Area Proceed to
      P043F EVAP pressure less than reference pressure measured at 2/5 Reference orifice high-flow A
      P2401 EVAP pressure almost same as reference pressure measured at 2/5 Leak detection pump stuck OFF B

      *: These DTCs are already present in the ECM when the vehicle arrives and are confirmed in the "CONFIRM DTC" procedures above.

      HINT:

      The first reference pressure is the value determined in step 2/5.

    B → See step   22

    A → See step   29

  12. PERFORM ACTIVE TEST USING TECHSTREAM (PURGE VSV)
    1. On the Techstream, select the following menu items: Powertrain / Engine and ECT / Active Test / Activate the VSV for EVAP Control.

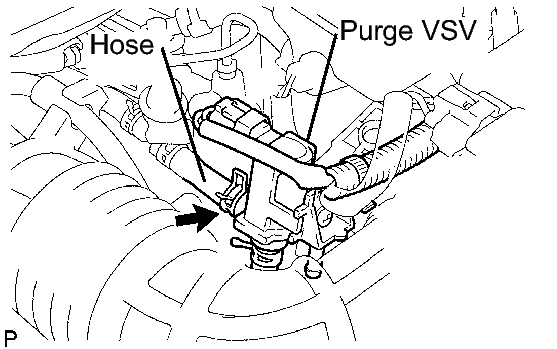

      Fig 11: Identifying Hose And Purge VSV
      GTY161690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the hose (connected to the canister) from the purge VSV.
    3. Start the engine.
    4. Using the Techstream, turn off the purge VSV (EVAP VSV: OFF).
    5. Use your finger to confirm that the purge VSV has no suction.
    6. Using the Techstream, turn on the purge VSV (EVAP VSV: ON).
    7. Use your finger to confirm that the purge VSV has suction.

      Result

      Test Result Suspected Trouble Area Proceed to
      No suction when purge VSV turned OFF, and suction applied when turned ON Purge VSV normal A
      Suction applied when purge VSV turned OFF Purge VSV stuck open B
      No suction when purge VSV turned ON
      • Purge VSV stuck closed
      • Problems with EVAP hose between purge VSV and intake manifold
      		 C
    8. Reconnect the hose.

    C → See step   15

    B → See step   14

    A: Go to next step

  13. CHECK FUEL CAP ASSEMBLY
    1. Check that the fuel cap is correctly installed and confirm the fuel cap meets OEM specifications.
    2. Tighten the fuel cap until a click sounds are heard.

      HINT:

      If an EVAP tester is available, check the fuel cap using the tester.

      1. Remove the fuel cap and install it onto a fuel cap adapter.
      2. Connect an EVAP tester pump hose to the adapter, and pressurize the cap to 3.2 to 3.7 kPa (24 to 28 mmHg) using an EVAP tester pump.
      3. Seal the adapter and wait for 2 minutes.
      4. Check the pressure. If the pressure is 2 kPa (15 mmHg) or more, the fuel cap is normal.

      Result

      Test Result Suspected Trouble Area Proceed to
      Fuel cap correctly installed - A
      Fuel cap loose
      • Fuel cap improperly installed
      • Defective fuel cap
      • Fuel cap does not meet OEM specifications
      		 B
      Defective fuel cap - B
      No fuel cap - C
    3. Reinstall the fuel cap.

    C → See step   27

    B → See step   26

    A → See step   28

  14. INSPECT DUTY VACUUM SWITCHING VALVE (PURGE VSV)
    1. Turn the ignition switch off.
      Fig 12: Identifying Hose And Purge VSV
      GTY161690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the V1 purge VSV connector.
    3. Disconnect the hose (connected to the canister) from the purge VSV.
    4. Start the engine.
    5. Use your finger to confirm that the purge VSV has no suction.

      Result

      Test Result Suspected Trouble Area Proceed to
      No suction ECM A
      Suction applied Purge VSV B
    6. Reconnect the purge VSV connector.
    7. Reconnect the hose.

    B → See step   30

    A → See step   34

  15. CHECK EVAP HOSE (PURGE VSV - INTAKE MANIFOLD)
    1. Disconnect the hose (connected to the intake manifold) from the purge VSV.

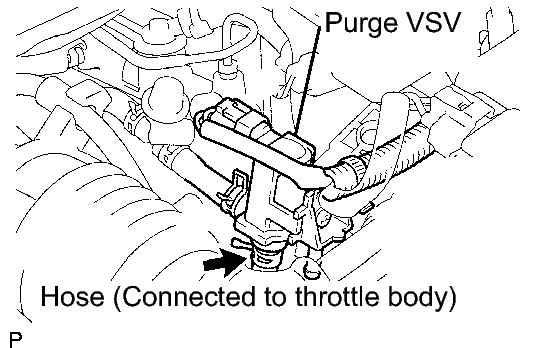

      Fig 13: Identifying Hose And Purge VSV
      GTY156904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Start the engine.
    3. Use your finger to confirm that the hose has suction.

      Result

      Test Result Suspected Trouble Area Proceed to
      Suction applied EVAP hose between purge VSV and intake manifold normal A
      No suction
      • Intake manifold port
      • EVAP hose between purge VSV and intake manifold
      		 B
    4. Reconnect the hose.

    B → See step   25

    A: Go to next step

  16. INSPECT DUTY VACUUM SWITCHING VALVE (PURGE VSV)
    1. Remove the purge VSV.
      Fig 14: Applying Battery Voltage To Terminals Of Purge VSV
      GTY166514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply the battery voltage to the terminals of the purge VSV.
    3. Using compressed air, confirm that air flows from port A to port B.

      Result

      Test Result Suspected Trouble Area Proceed to
      Air flows Purge VSV normal A
      No air flow Purge VSV B
    4. Install the purge VSV.

    B → See step   30

    A: Go to next step

  17. CHECK HARNESS AND CONNECTOR (POWER SOURCE OF PURGE VSV)
    1. Disconnect the V1 purge VSV connector.
      Fig 15: Identifying V1 Purge VSV Connector Terminals
      GTY164177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the ignition switch to the ON position.
    3. Measure the voltage between terminal 2 of the purge VSV connector and body ground.

      Result

      Test Result Suspected Trouble Area Proceed to
      11 to 14 V Normal A
      Other than result above Wire harness or connectors between purge VSV and ECM B
    4. Reconnect the purge VSV connector.

    B → See step   31

    A: Go to next step

  18. CHECK HARNESS AND CONNECTOR (PURGE VSV - ECM)
    1. Disconnect the E7 ECM connector and the V1 purge VSV connector.

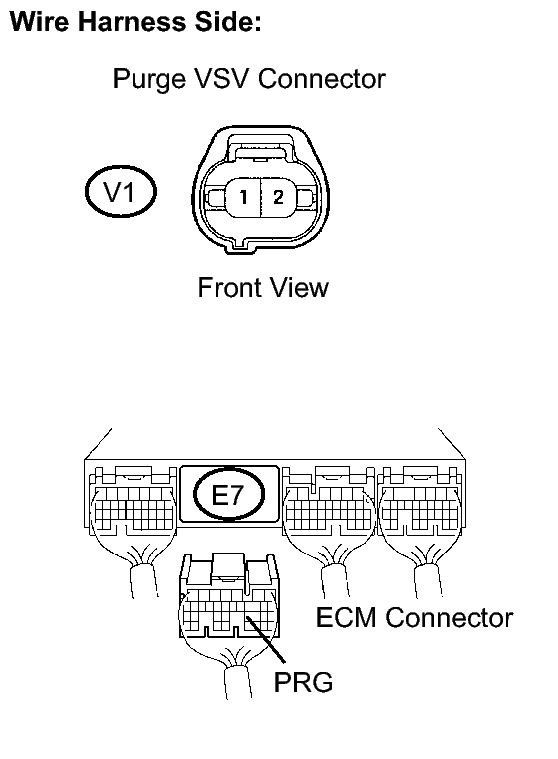

      Fig 16: Identifying E7 ECM Connector And V1 Purge VSV Connector
      GTY161307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Specified Condition
      E7-23 (PRG) - V1-2 (Purge VSV) Below 1 Ω
      E7-23 (PRG) - Body ground 10 kΩ or higher
      V1-2 (Purge VSV) - Body ground 10 kΩ or higher
    3. Reconnect the purge VSV connector.
    4. Reconnect the ECM connector.

    NG → See step   31

    OK → See step   34

  19. INSPECT CANISTER PUMP MODULE (POWER SOURCE FOR VENT VALVE)
    1. Turn the ignition switch off.

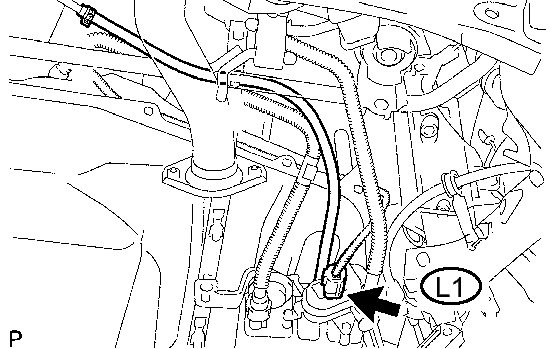

      Fig 17: Identifying L1 Canister Pump Module Connector
      GTY162948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the L1 canister pump module connector.
    3. Turn the ignition switch to the ON position.
    4. Measure the voltage between the 9 terminal of the canister pump module connector and body ground.
      Fig 18: Identifying Canister Pump Module Connector Terminals
      GTY162244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      Test Result Suspected Trouble Area Proceed to
      11 to 14 V
      1. Wire harness between vent valve and ECM
      2. Vent valve
      3. ECM
      		 A
      Below 3 V Power source wire harness of vent valve B
    5. Reconnect the canister pump module connector.

    B → See step   31

    A: Go to next step

  20. INSPECT CANISTER PUMP MODULE (VENT VALVE OPERATION)
    1. Turn the ignition switch off.
      Fig 19: Identifying Canister Connector
      GTY166681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the L1 canister pump module connector.
    3. Apply battery voltage to the 9 and 8 terminals of the canister pump module.
    4. Touch the canister pump module to confirm the vent valve operation.

      Result

      Test Result Suspected Trouble Area Proceed to
      Operating
      1. Wire harness between vent valve and ECM
      2. ECM
      		 A
      Not operating Vent valve B
    5. Reconnect the canister pump module connector.

    B → See step   29

    A: Go to next step

  21. CHECK HARNESS AND CONNECTOR (ECM - CANISTER PUMP MODULE)
    1. Disconnect the E4 ECM connector.
      Fig 20: Identifying Canister Pump Module Connector Terminals
      GTY166096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the L1 canister pump module connector.
    3. Measure the resistance between the VPMP terminal of the ECM connector and the 8 terminal of the canister pump module connector.

      Result

      Test Result Suspected Trouble Area Proceed to
      Below 1 Ω ECM A
      10 kΩ or higher Wire harness between ECM and canister pump module B
    4. Reconnect the ECM connector.
    5. Reconnect the canister pump module connector.

    B → See step   31

    A → See step   34

  22. PERFORM ACTIVE TEST USING TECHSTREAM (VACUUM PUMP (ALONE))
    1. Turn the ignition switch off.

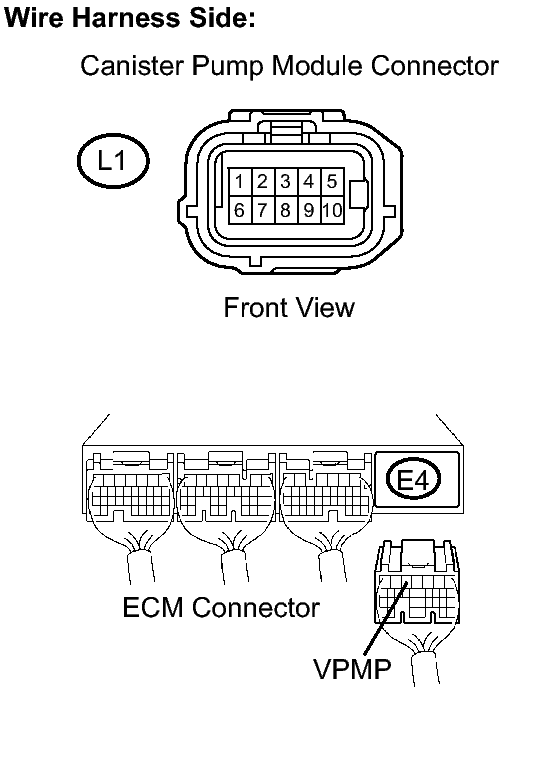

      Fig 21: Identifying Canister Pump Module Connector Terminals
      GTY162243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the L1 canister pump module connector.
    3. Turn the ignition switch to the ON position.
    4. On the Techstream, select the following menu items: Powertrain / Engine and ECT / Active Test / Activate the Vacuum Pump.
    5. Measure the voltage between the 1 terminal of the canister pump module connector and body ground when the leak detection pump is turned ON and OFF using the Techstream.

      Result

      Test Result Suspected Trouble Area Proceed to
      Below 3 V when OFF
      11 to 14 V when ON
      1. Wire harness between leak detection pump and body ground
      2. Leak detection pump
      		 A
      Below 3 V when OFF and ON
      1. Wire harness between leak detection pump and ECM
      2. ECM
      		 B
    6. Reconnect the canister pump module connector.

    B → See step   24

    A: Go to next step

  23. CHECK HARNESS AND CONNECTOR (CANISTER PUMP MODULE - BODY GROUND)
    1. Turn the ignition switch off.
      Fig 22: Identifying Canister Pump Module Connector Terminals
      GTY165800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the L1 canister pump module connector.
    3. Measure the resistance between the 6 terminal of the canister pump module connector and body ground.

      Result

      Test Result Suspected Trouble Area Proceed to
      Below 1 Ω Leak detection pump A
      10 kΩ or higher Wire harness between canister pump module and body ground B
    4. Reconnect the canister pump module connector.

    B → See step   31

    A → See step   29

  24. CHECK HARNESS AND CONNECTOR (ECM - CANISTER PUMP MODULE)
    1. Turn the ignition switch off.

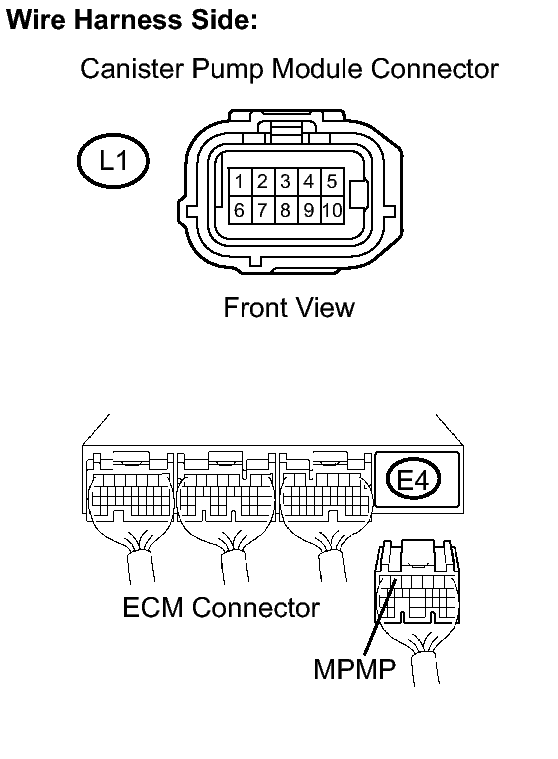

      Fig 23: Identifying Canister Pump Module Connector Terminals
      GTY166095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the L1 canister pump module connector.
    3. Disconnect the E4 ECM connector.
    4. Measure the resistance between the MPMP terminal of the ECM connector and the 1 terminal of the canister pump module connector.

      Result

      Test Result Suspected Trouble Area Proceed to
      Below 1 Ω ECM A
      10 kΩ or higher Wire harness between ECM and canister pump module B
    5. Reconnect the canister pump module connector.
    6. Reconnect the ECM connector.

    B → See step   31

    A → See step   34

  25. INSPECT INTAKE MANIFOLD (EVAP PURGE PORT)
    1. Stop the engine.
    2. Disconnect the EVAP hose from the intake manifold.
    3. Start the engine.
    4. Use your finger to confirm that the port of the intake manifold has suction.

      Result

      Test Result Suspected Trouble Area Proceed to
      Suction applied EVAP hose between intake manifold and purge VSV A
      No suction Intake manifold B
    5. Reconnect the EVAP hose.

    B → See step   33

    A → See step   32

  26. CORRECTLY REINSTALL OR REPLACE FUEL CAP

    HINT:

    • When reinstalling the fuel cap, tighten it until a few click sounds are heard.
    • When replacing the fuel cap, use a fuel cap that meets OEM specifications, and install it until click sounds are heard.

    NEXT → See step   36

  27. REPLACE FUEL CAP

    HINT:

    When installing the fuel cap, tighten it until a few click sounds are heard.

    NEXT → See step   36

  28. LOCATE EVAP LEAK PART
    1. Disconnect the vent hose.

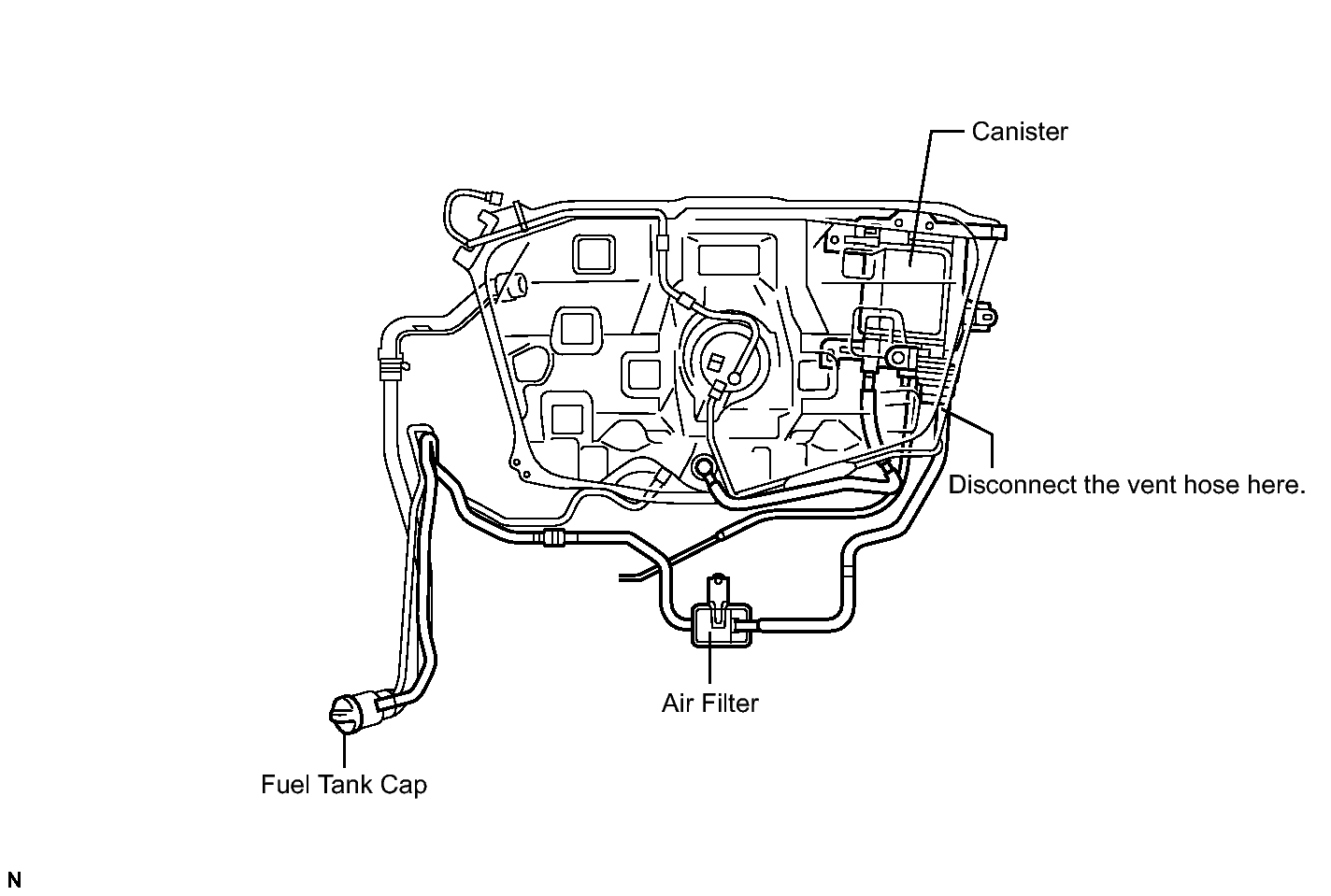

      Fig 24: Identifying Vent Hose, Fuel Tank Cap And Air Filter
      GTY161310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the EVAP pressure tester tool to the canister pump module with the adapter.

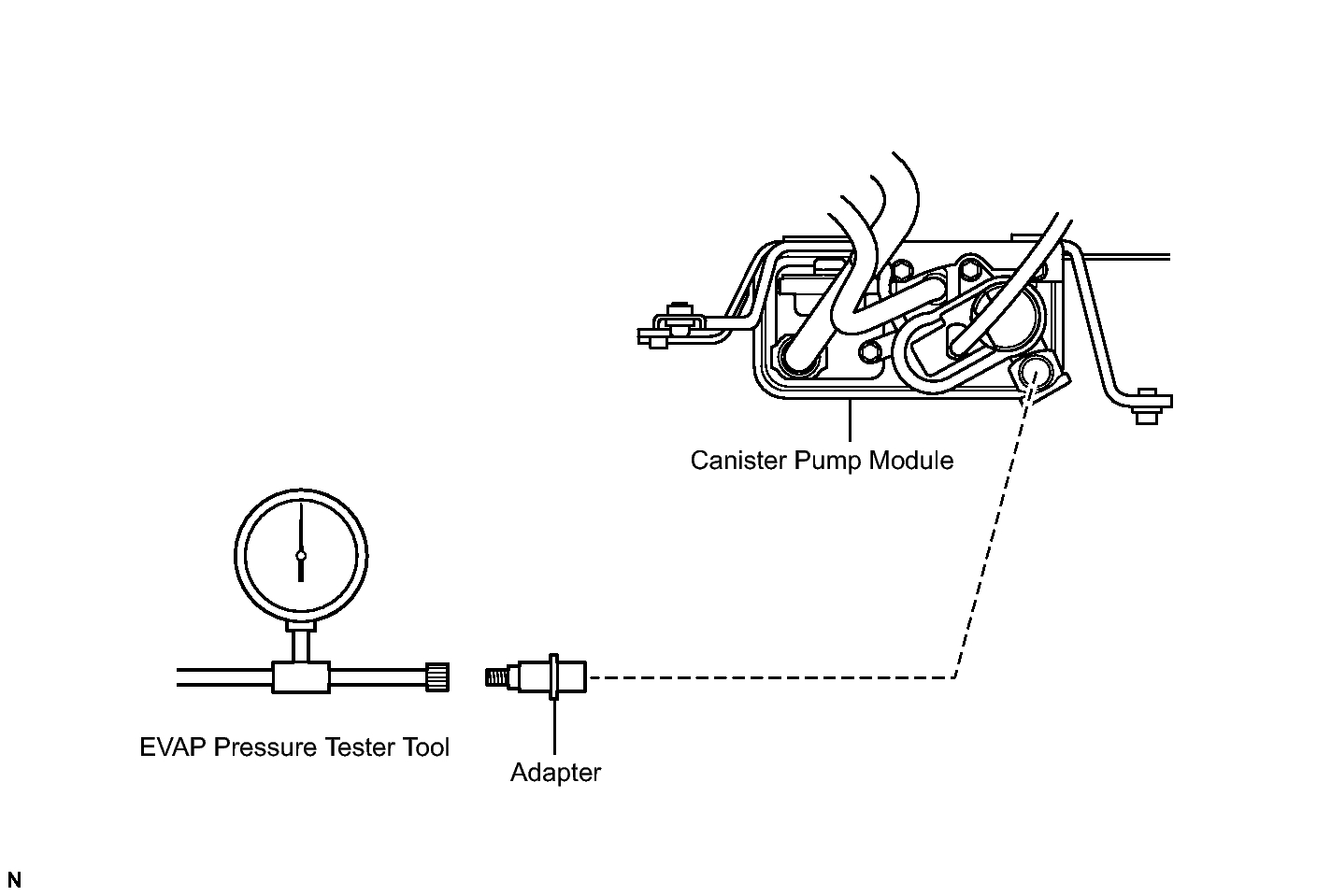

      Fig 25: View Of EVAP Pressure Tester Tool To Canister Pump Module With Adapter
      GTY161309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pressurize the EVAP system to 3.2 to 3.7 kPa (24 to 28 mmHg).
    4. Apply soapy water to the piping and connecting parts of the EVAP system.
    5. Look for areas where bubbles appear. This indicates the leak point.
    6. Repair or replace the leak point.

      HINT:

      Disconnect the hose between the canister and the fuel tank from the canister. Block the canister side and conduct an inspection. In this way, the fuel tank can be excluded as an area suspected of causing fuel leaks.

    NEXT → See step   36

  29. REPLACE CHARCOAL CANISTER ASSEMBLY
    1. Replace the canister assembly. Refer to REMOVAL .

    NEXT → See step   36

  30. REPLACE DUTY VACUUM SWITCHING VALVE (PURGE VSV)
    1. Disconnect the connector and the hoses from the purge VSV.

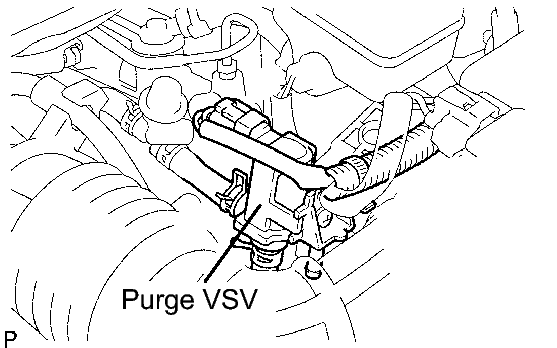

      Fig 26: Identifying Purge VSV
      GTY164190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the purge VSV.
    3. Install a new purge VSV.
    4. Reconnect the connector and hoses.

    NEXT → See step   36

  31. REPAIR OR REPLACE HARNESS OR CONNECTOR

    NEXT → See step   36

  32. REPLACE EVAP HOSE (INTAKE MANIFOLD - PURGE VSV)

    NEXT → See step   36

  33. INSPECT INTAKE MANIFOLD (EVAP PURGE PORT)
    1. Check that the EVAP purge port of the intake manifold is not clogged. If necessary, replace the intake manifold.

    NEXT → See step   36

  34. REPLACE ECM
    1. Replace the ECM. Refer to REMOVAL .

    NEXT → See step   36

  35. REPAIR OR REPLACE PARTS AND COMPONENTS INDICATED BY OUTPUT DTCS
    1. Repair the malfunctioning areas indicated by the DTCs that had been confirmed when the vehicle was brought in.

    NEXT → See step   36

  36. PERFORM EVAPORATIVE SYSTEM CHECK (AUTOMATIC MODE)
    NOTE:
    • The Evaporative System Check (Automatic Mode) consists of 5 steps performed automatically by the Techstream. It takes a maximum of approximately 18 minutes.
    • Do not perform the Evaporative System Check when the fuel tank is more than 90% full because the cut-off valve may be closed, making the fuel tank leak check unavailable.
    • Do not run the engine in this step.
    • When the temperature of the fuel is 35°C (95°F) or more, a large amount of vapor forms and any check results become inaccurate. When performing an Evaporative System Check, keep the temperature below 35°C (95°F).
    1. Clear the DTCs. Refer to DTC CHECK / CLEAR .
    2. On the Techstream, select the following menu items: Powertrain / Engine and ECT / Utility / Evaporative System Check / Automatic Mode.
    3. After the Evaporative System Check is completed, check for pending DTCs by selecting the following menu items: Powertrain / Engine and ECT / Trouble Codes / Pending.

      HINT:

      If no pending DTCs are found, the repair has been successfully completed.

    NEXT → COMPLETED

About FixVault
