Parts Location: Illustration

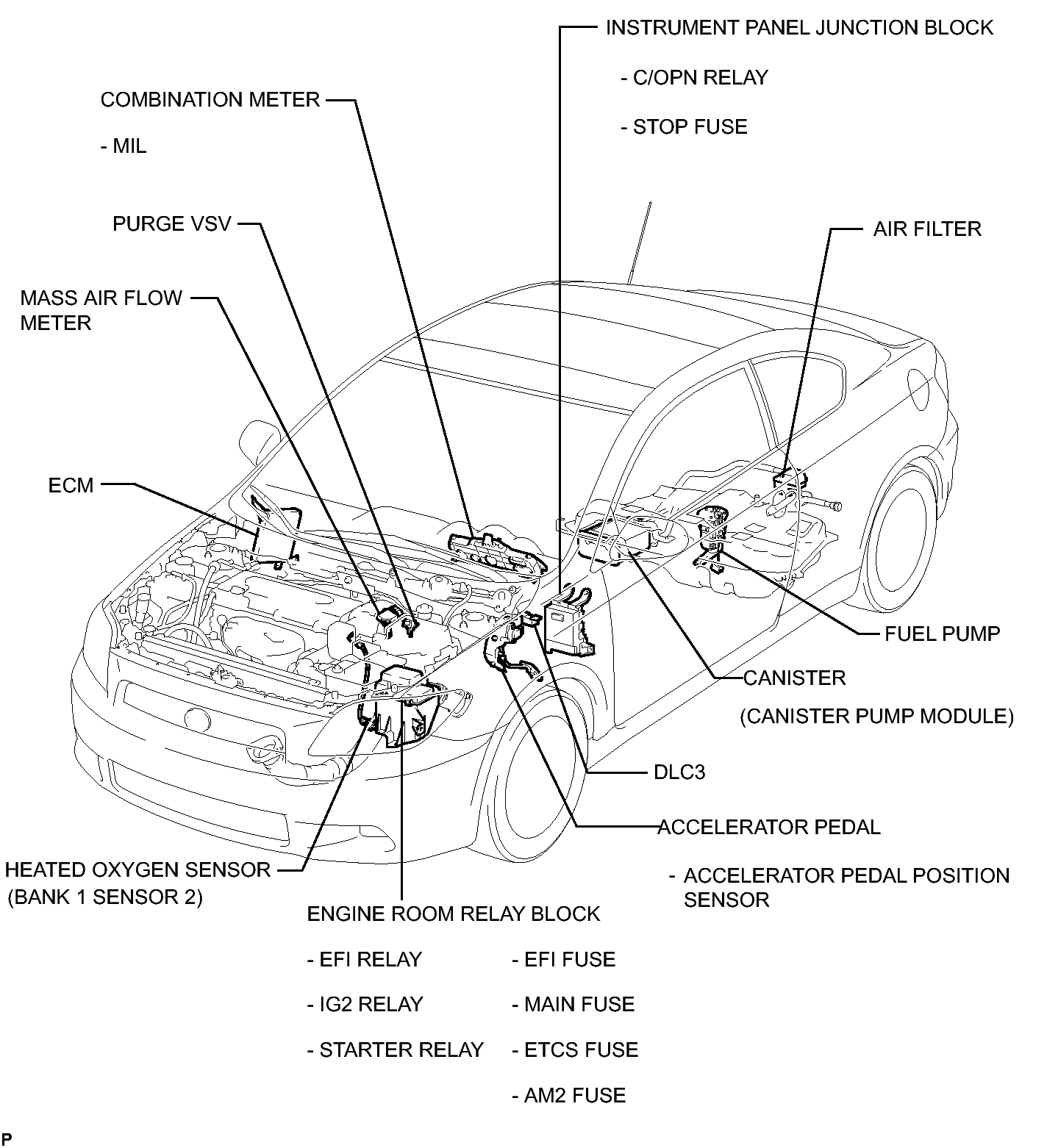

Fig 1: Identifying Engine Control System Components Location (1 Of 2)
GTY162119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

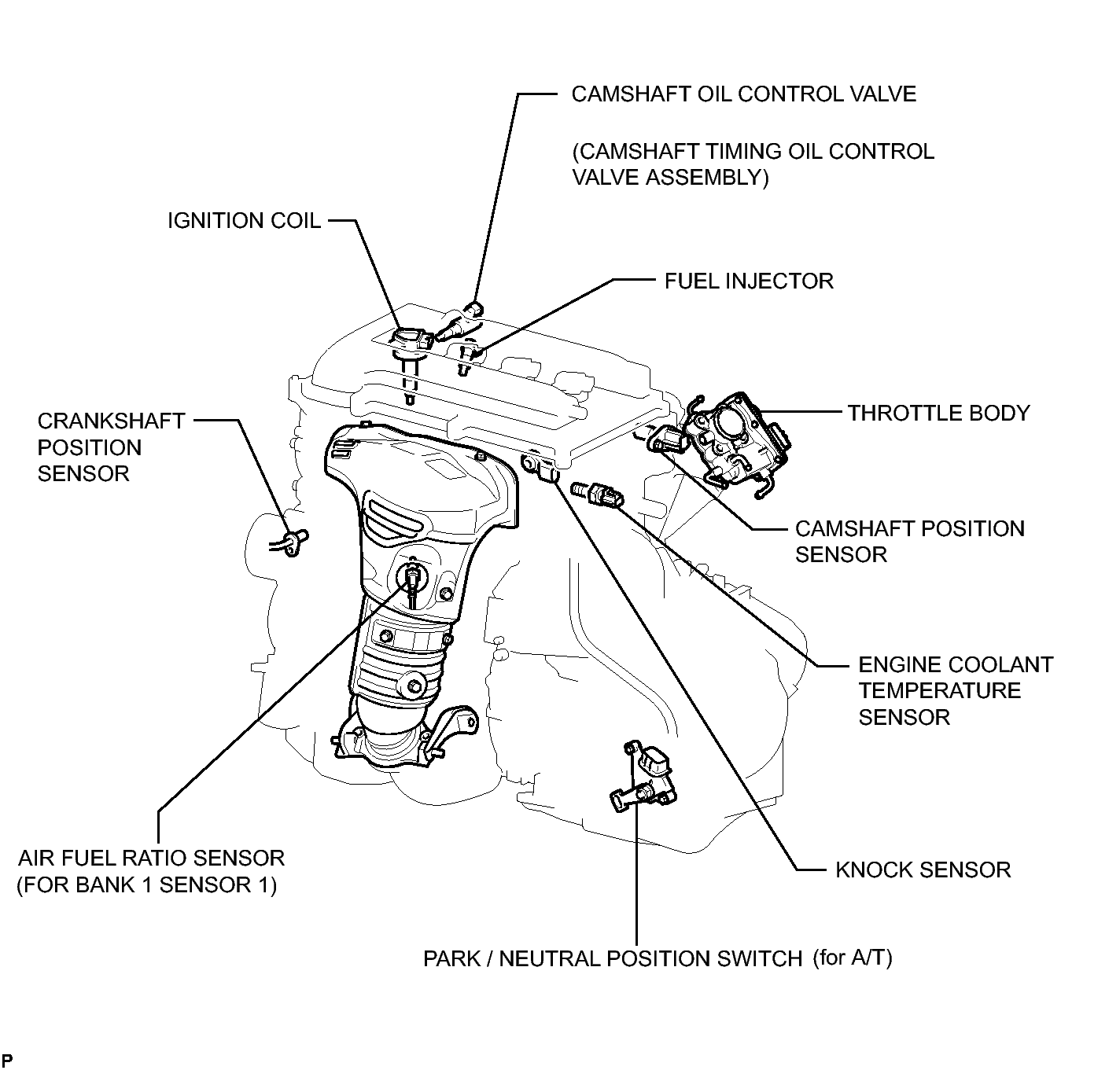

Fig 1: Identifying Engine Control System Components Location (2 Of 2)
GTY166567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
