Parts Location: Illustration

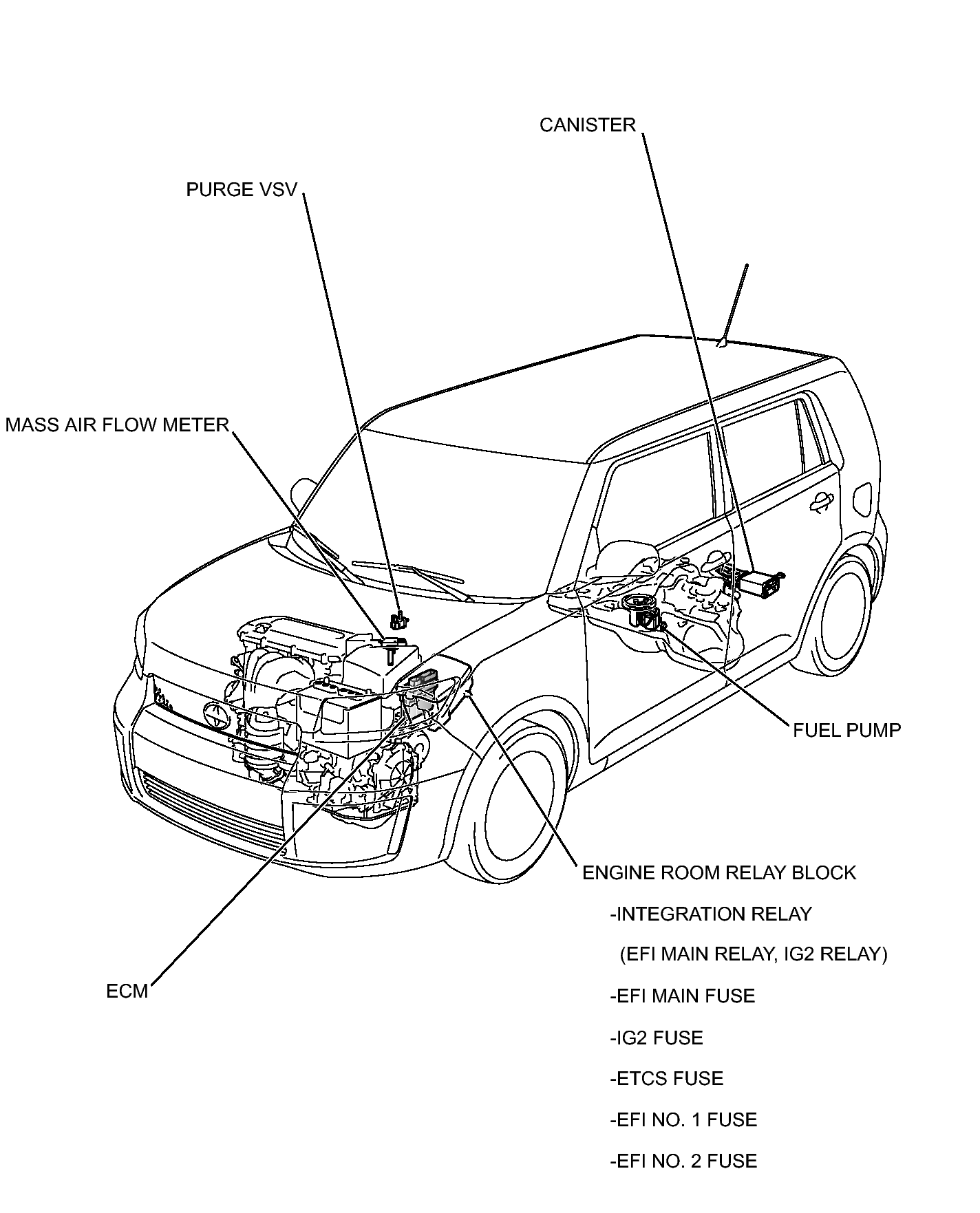

Fig 1: Identifying SFI System Parts Location (1 Of 3)
GTY164191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

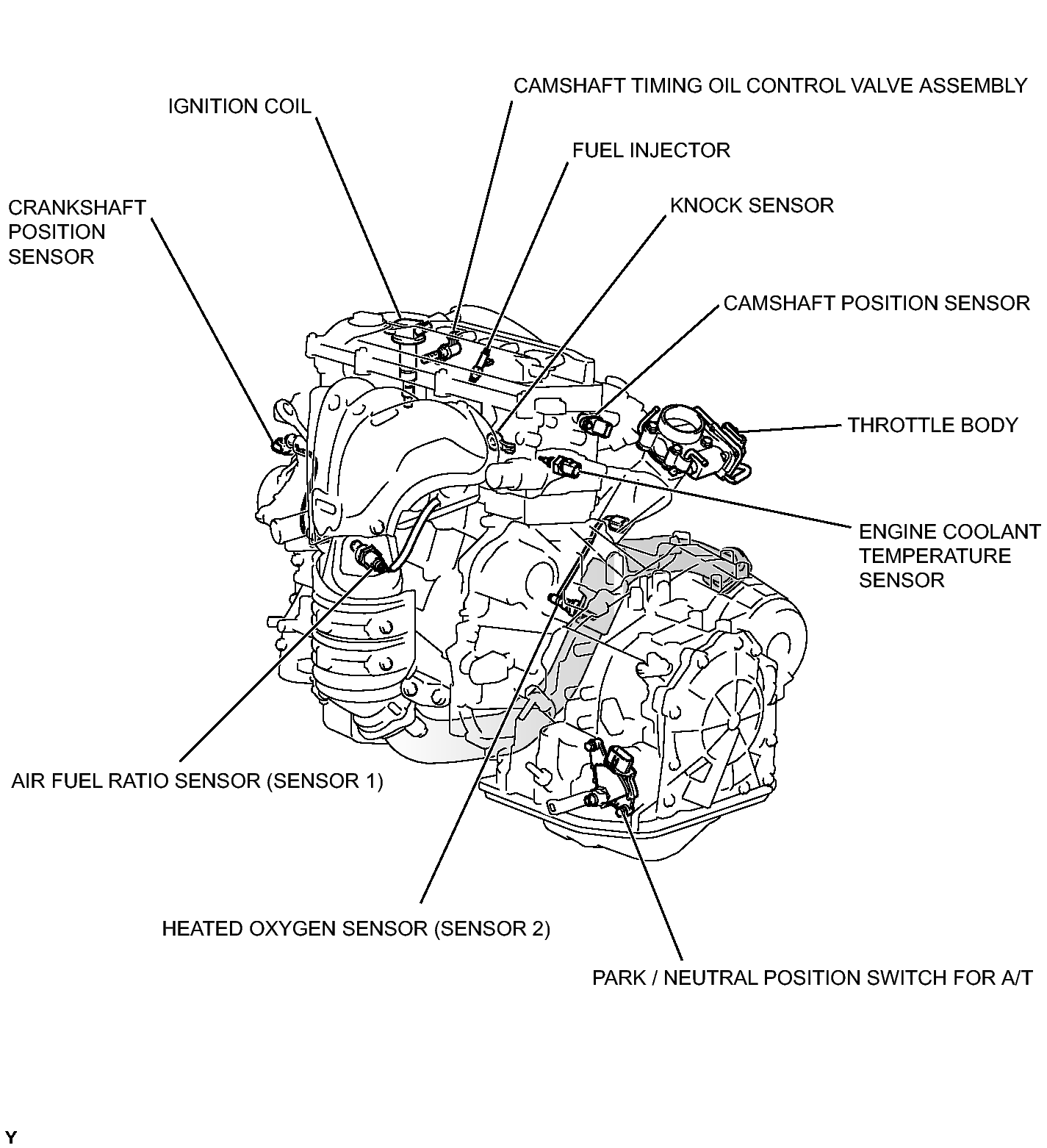

Fig 1: Identifying SFI System Parts Location (2 Of 3)
GTY163894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

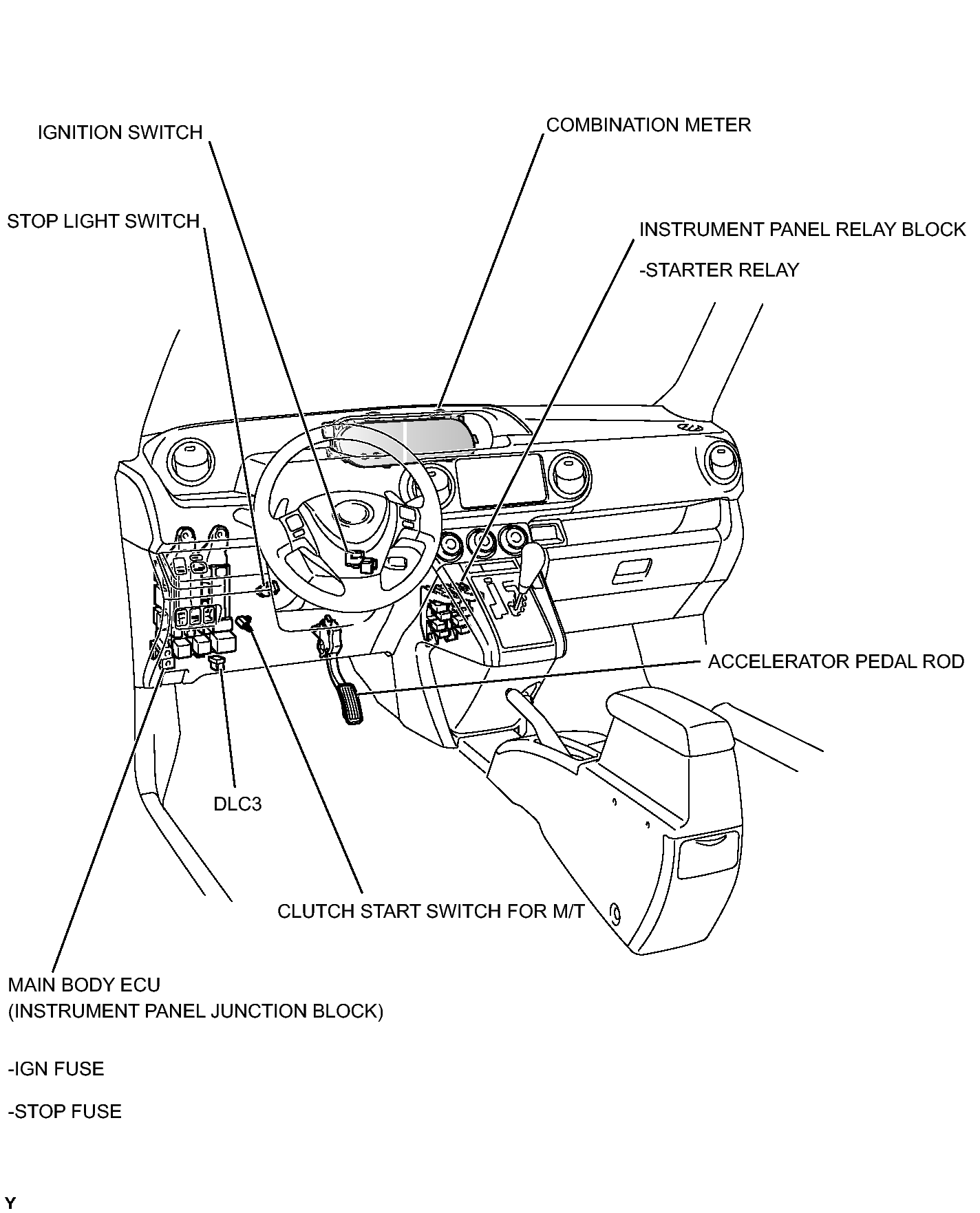

Fig 1: Identifying SFI System Parts Location (3 Of 3)
GTY162460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
