Window Defogger System
›
Rear Window Defogger System Does Not Operate
›
Wiring Diagram
Rear Window Defogger System Does Not Operate: Wiring Diagram

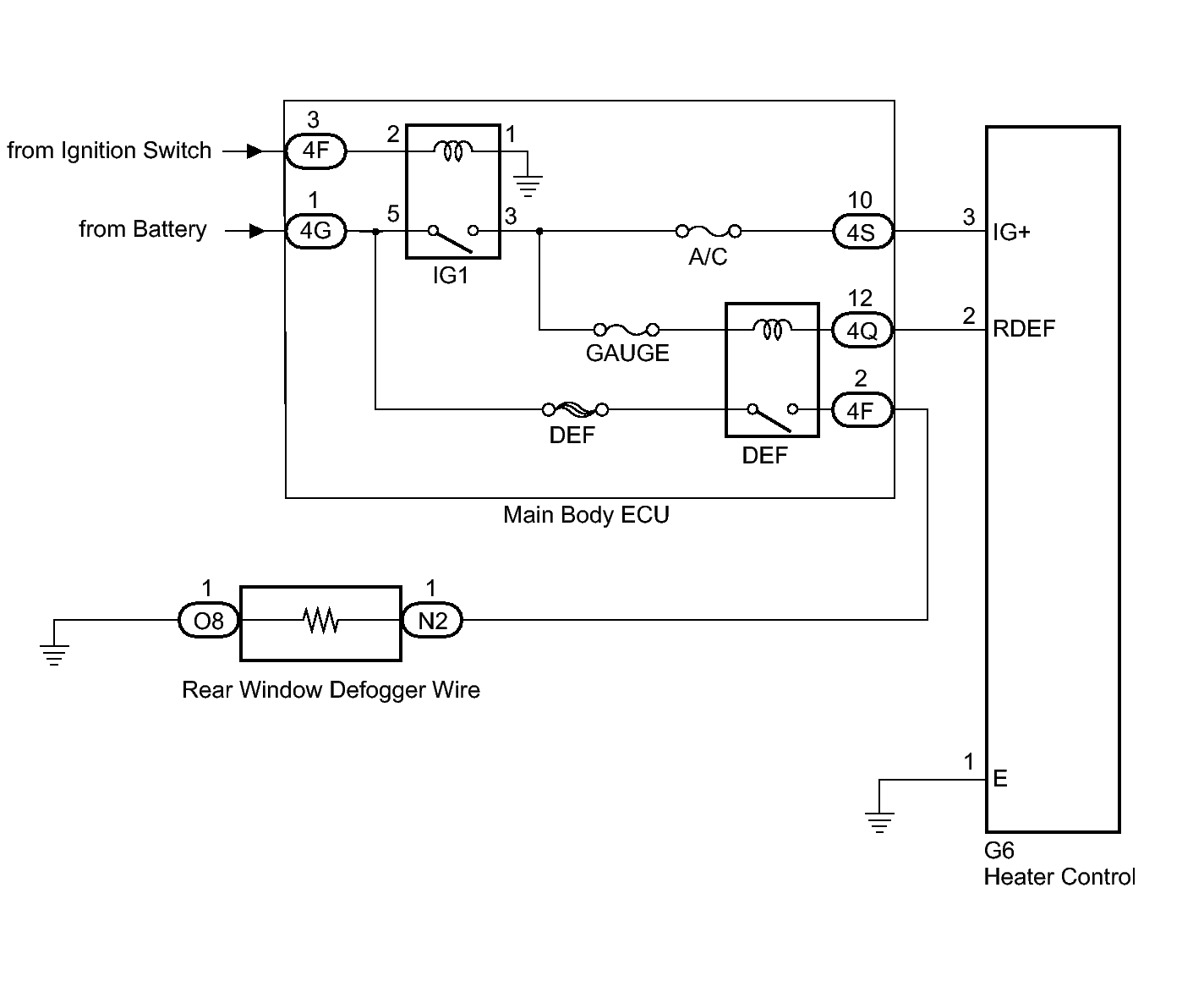

Fig 1: Rear Window Defogger System - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
